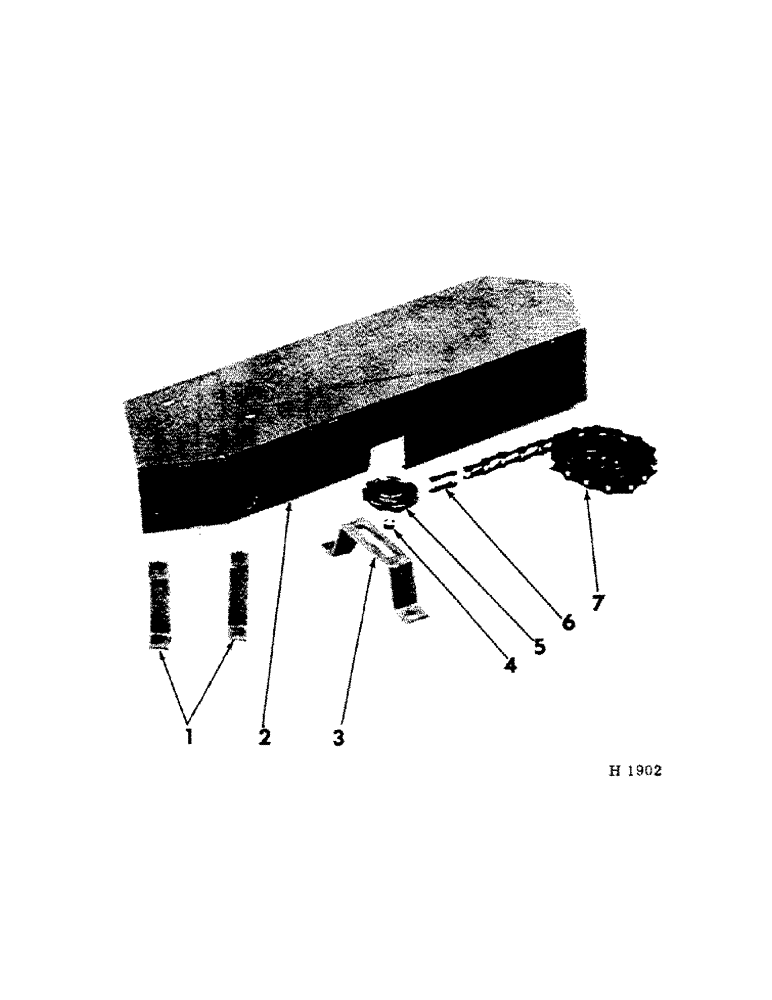

Запчасти Case IH 320 (M-23) - UPPER BEATER CHAIN SHIELD

1

593023R11

BRACKET

chain shield

2шт.

19427R11

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

593081R91

SHIELD

upper beater chain

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8" cd-pltd wing

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

593018R1

SUPPORT

chain tightener

1шт.

17351R11

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

590750R1

SPACER

chain tightener sprocket

1шт.

5

569065R91

SPROCKET ASSY.

SPROCKET, 7T chain tightener

1шт.

18722R11

BOLT (SPREADER)

BOLT W/NUT, 5/8 x 2-1/2" cd-pltd crg

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

567007R91

DRAG LINK

LINK, drive chain connecting

1шт.

7

CHAIN, upper beater drive 1-1/2" pitch agricultural (order 1-569090R91, 10 ft chain, reduce to 47 links & add 1-567007R91, connecting link)

1шт.
