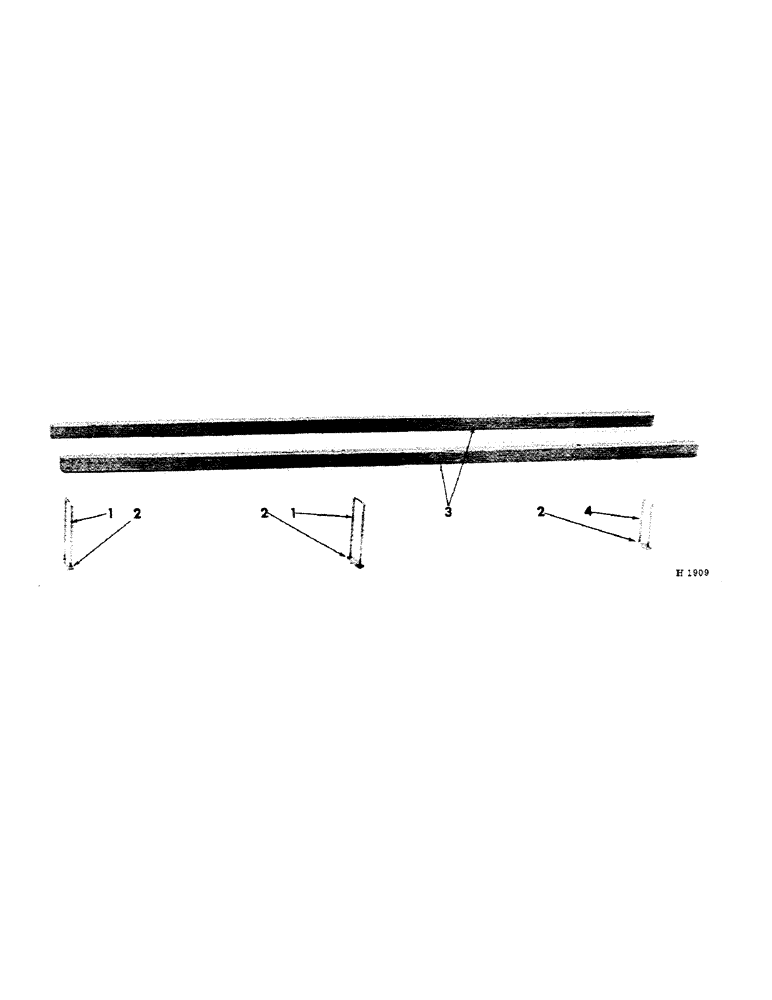

Запчасти Case IH 320 (M-02[A]) - SPREADER BOX TRUCK SUPPORTS

1

592848R1

BOLT

"U" BOLT, block clamping front

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" cd-pltd

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

2

592850R1

BAR, "U" bolt clamping

6шт.

3

592847R1

BLOCK

bottom cross channel support

2шт.

4

592849R1

BOLT

"U" BOLT, block clamping rear

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" cd-pltd

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
