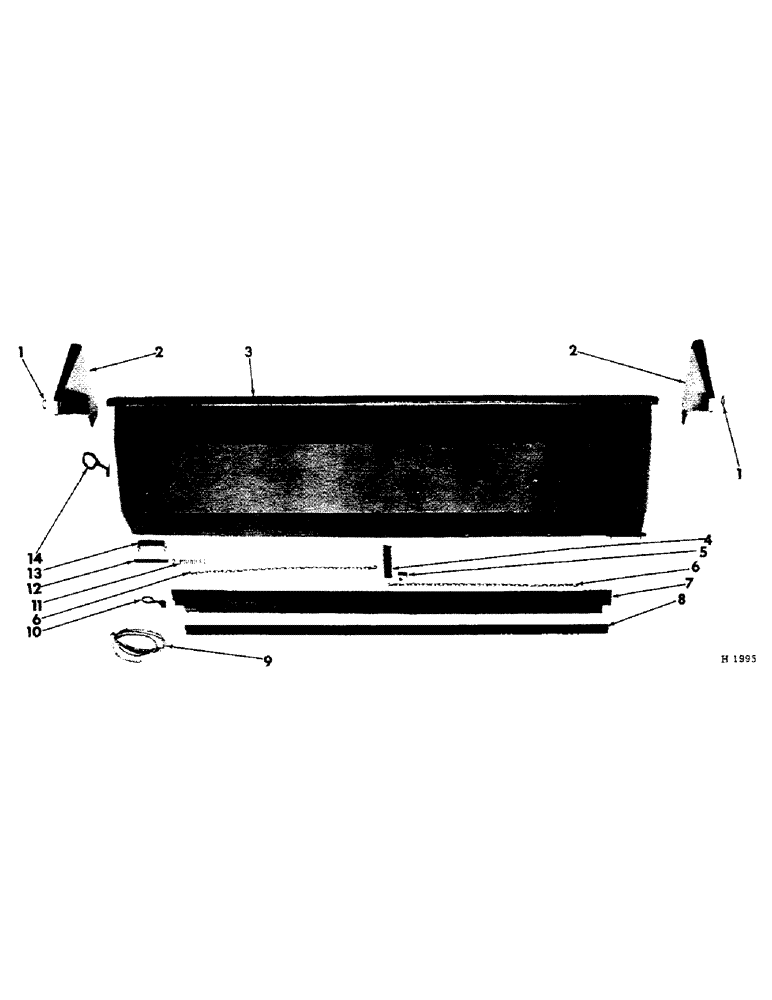

Запчасти Case IH 320 (M-21) - REAR SLURRY PAN

1

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga cd-pltd

1шт.

2

594527R1

HANGER

BRACKET, pan hanger LH

1шт.

2

594528R1

HANGER

BRACKET, pan hanger RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

w/Nut Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

594529R11

PAN, rear slurry

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga cd-pltd

1шт.

4

594535R1

COVER

SUPPORT, latch control

1шт.

19431R11

BOLT W/NUT, 3/8 x 1-1/8" cd-pltd crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

594537R1

ANGLE

latch control stop

1шт.

594536R1

BUSHING

latch control pivot

1шт.

18684R11

BOLT

WASH, 13/32 x 1 x 16 ga cd-pltd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

594532R91

CHAIN, slurry pan latch

2шт.

7

594533R1

COVER

slurry pan bottom

1шт.

19431R11

BOLT W/NUT, 3/8 x 1-1/8" cd-pltd crg

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

8

594534R1

CHANNEL, pan bottom cover

1шт.

19431R11

BOLT W/NUT, 3/8 x 1-1/8" cd-pltd crg

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

9

ROPE, 3/8" sisal x 30 ft latch control trip (dealer to supply from bulk stock)

1шт.

10

594538R11

GUIDE

trip rope rear

1шт.

18778R11

BOLT

W/NUT, 3/8 x 3/4" cd-pltd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

592456R1

SPRING

slurry pan latch

2шт.

12

594455R1

LATCH, slurry pan

2шт.

20731R1

SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole

17/32 sq x 1 x 16 ga cd-pltd

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

13

592453R1

BRACKET

slurry pan latch LH

1шт.

592454R1

BRACKET

slurry pan latch RH

1шт.

18508R11

BOLT

W/NUT, 3/8 x 3/4" cd-pltd crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

612766R12

GUIDE

trip rope intermediate

2шт.

18685R11

BOLT

W/NUT, 3/8 x 1-1/2" cd-pltd crg

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT W/NUT, 3/8 x 1-3/4" cd-pltd crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

612934R11

GUIDE

trip rope front

1шт.

19427R11

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
