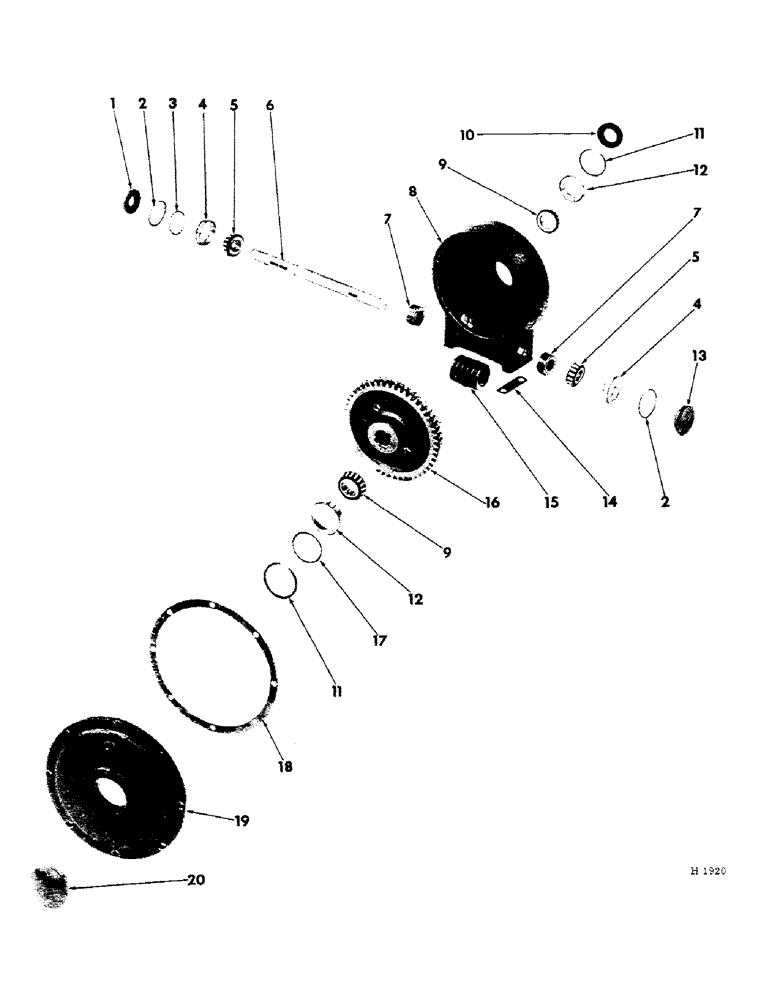

Запчасти Case IH 320 (M-18) - WORM GEAR REDUCED GEAR CASE

592984R91

CASE, worm gear reducer (composed of parts listed, unless otherwise noted)

1шт.

17423R1

BOLT, 1/2 x 7/8" cd-pltd mach bolt

4шт.

+ Not part of gear case

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

+ Not part of gear case

1шт.

1

594447R91

SEAL

input shaft oil

1шт.

2

594433R1

RING

input shaft brg retaining

2шт.

3

594441R1

SHIM

input shaft brg (.010)

1шт.

3

596598R1

SHIM

input shaft brg (.020)

1шт.

4

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP, input shaft brg

2шт.

5

594446R91

ROLLER BEARING

CONE, input shaft brg

2шт.

6

594445R1

SHAFT, gear case input

1шт.

7

594454R1

SPACER, worm

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

8

594442R1

HOUSING

gear case

1шт.

594455R1

PLUG, housing vent

1шт.

103879

PLUG, 3/8" sq-hd pipe

1шт.

9

20879D

ROLLER BEARING,1.375" ID x 2.77" OD x 0.7813"

CONE, worm gear brg

2шт.

10

594449R91

OIL SEAL

worm gear oil

1шт.

11

594450R1

RING

worm gear brg retaining

2шт.

12

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

CUP, worm gear brg

2шт.

13

594434R1

CAP

gear housing lower

1шт.

14

592985R1

SHIM

gear case

1шт.

+ Not part of gear case

1шт.

15

594444R1

WORM

gear case

1шт.

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, 1/4 x 7/8" Woodruff

1шт.

16

594443R1

GEAR

worm

1шт.

17

594451R1

SHIM

worm gear brg (.010)

1шт.

17

596599R1

SHIM

worm gear brg (.020)

1шт.

18

594453R1

GASKET

gear housing cover

1шт.

19

594452R1

COVER, gear housing

1шт.

NLS

NO LONGER SERVICED

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

20

594448R1

CAP

gear housing upper

1шт.
