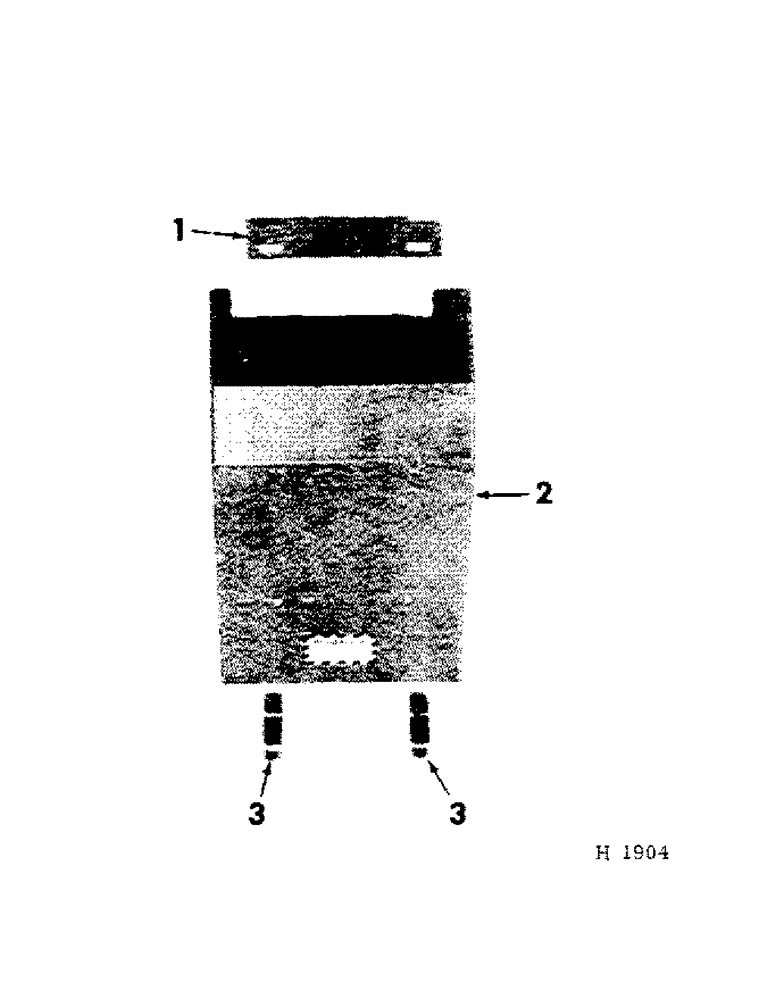

Запчасти Case IH 320 (M-17) - JACKSHAFT & GEAR CASE SHIELD

1

592975R1

ANGLE, shield support

1шт.

18684R11

BOLT

W/NUT, 3/8 x 1-1/4" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

592977R91

SHIELD, jackshaft drive

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

126082

SPRING

NUT, 3/8" cde-pltd wing

2шт.

3

592976R11

BRACKET, drive shield

2шт.

18494R11

SCREW

BOLT W/NUT, 3/8 x 1" cd-pltd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

126032

WING NUT,3/8"-16

NUT, 3/8" cd-pltd wing

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

2шт.
