Запчасти Case IH 320 (M-14) - REAR APRON SHAFT TWO SPEED DRIVE

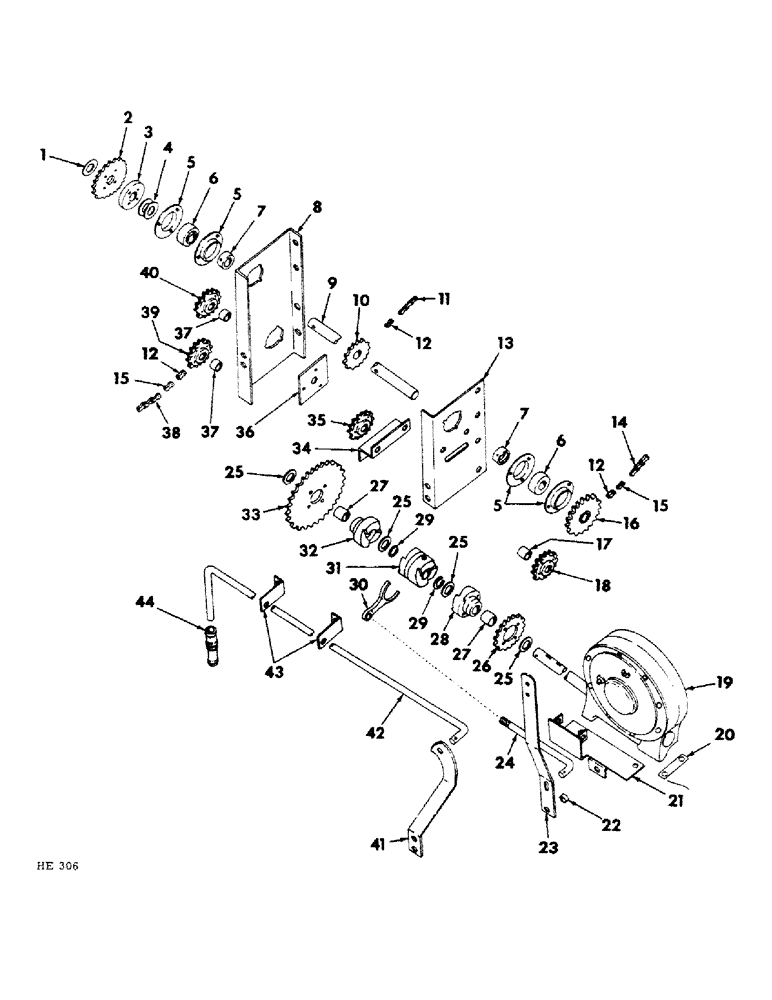

Схема запчастей Case IH 320 - (M-14) - REAR APRON SHAFT TWO SPEED DRIVE

Артикул

Название

Примечание

Количество

1

609836R1

WASHER

jackshaft sprocket front (1-1/32 x 1-3/4 x 16 ga cd-pltd)

1шт.

2

592971R1

SPROCKET, 32T jackshaft drive (regular)

1шт.

2

593084R1

SPROCKET, 22T jackshaft drive (special)

1шт.

2

593085R1

SPROCKET, 28T jackshaft drive (special)

1шт.

17419R11

BOLT

W/NUT, 5/16 x 7/8"

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

592972R1

HUB, jackshaft front driven sprocket

1шт.

Q67

KEY,1/4" Sq x 1 1/8", Par

STR-KEY, 1/4 sq x 1-1/8"

1шт.

4

609836R1

WASHER

jackshaft sprocket hub rear (1-1/32 x 1-3/4 x 16 ga cd-pltd)

1шт.

5

462360R1

FLANGED BEARING

RETAINER, jackshaft bearing

4шт.

16897R11

BOLT (SPREADER)

BOLT W/NUT, 5/16 x 3/4" cd-pltd crg

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

6

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

jackshaft (Fafnir or New Departure, use w/455102R11, collar)

2шт.

6

607416R91

BEARING

jackshaft (Fischer, use w/607417R11, collar)

2шт.

7

455102R11

COLLAR

jackshaft bearing lk, (includes 102569, screw)(Fafnir or New Departure use w/455965R91, bearing)

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

7

607417R11

COLLAR

jackshaft bearing lk, (includes 102569, screw)(Fischer use w/607416R91, bearing)

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

8

592966R1

CHANNEL, jackshaft front mounting

1шт.

19432R11

BOLT W/NUT, 3/8 x 1-3/8" cd-pltd crg

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

592970R1

SHAFT, rear apron shaft jack

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

10

451123R1

SPROCKET, 16T jackshaft gear case drive front (slow speed)

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

11

CHAIN, standard 5/8" pitch gear case drive (slow speed)(order 1-1791D, 10 ft length, reduce to 69 links and add 1-1310D connecting link)

1шт.

12

1310D

LINK

drive chain connecting

4шт.

13

592968R1

SUPPORT, jackshaft rear mounting

1шт.

18494R11

SCREW

BOLT W/NUT, 3/8 x 1" cd-pltd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

CHAIN, standard 5/8" pitch gear case drive (fast speed) (order 1-1791D, 10 ft length reduce to 61 links and add 1-1315D offset link and 1-1310D, connecting link)

1шт.

15

1315D

LINK

drive chain offset

4шт.

16

596664R91

SPROCKET, 22T jackshaft gear case drive rear (fast speed)

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

1шт.

17

468098R1

SPACER, tightener sprocket

1шт.

18

631905R91

SPROCKET

17T drive chain tightener

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2" cd-pltd type 2

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" cd-ptld

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

19

592984R91

CASE, rear apron shaft worm gear reduce (for component parts refer to "Worm Gear Reducer Case")

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

20

592985R1

SHIM

worm gear reducer case

1шт.

21

594984R1

BRACKET, feed control

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4" cd-pltd type 2

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

22

594536R1

BUSHING

feed control lever

1шт.

23

594987R1

LEVER, feed control

1шт.

19571R11

BOLT

W/NUT, 3/8 x 1-1/8" cd-pltd

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga cd-pltd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

594983R1

ROD, drive clutch

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga cd-pltd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

25

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga cd-pltd

4шт.

26

593084R1

SPROCKET, 22T apron shaft gear case drive (fast speed)

1шт.

19569R11

BOLT

W/NUT, 5/16 x 7/8" cd-pltd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

594978R1

BUSHING

clutch

2шт.

28

594981R11

HUB W/BUSHING, apron shaft drive rear clutch

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

STR-LUB-FITTING, 1/4"-NF

1шт.

29

758318C1

SNAP RING,#98, Ext

Ring, Snap, , clutch #98, Ext

2шт.

30

594980R1

YOKE

clutch shifter

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

STR-LUB-FITTING, 1/4"-NF

1шт.

31

594979R1

CLUTCH, apron shaft drive center

1шт.

16008R1

BALL,1/4" Dia, Steel

1/4" stl

1шт.

912495R2

SPRING

clutch ball tension

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

NLS

NO LONGER SERVICED

1/4 x 1" Woodruff

1шт.

32

594977R11

HUB W/BUSHING, apron shaft drive front clutch

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

STR-LUB-FITTING, 1/4"-NF

1шт.

33

592974R1

SPROCKET, 40T apron shaft gear case drive (slow speed)

1шт.

19569R11

BOLT

W/NUT, 5/16 x 7/8" cd-pltd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

34

594982R1

REINFORCEMENT, tightener sprocket

1шт.

18494R11

SCREW

BOLT W/NUT, 3/8 x 1" cd-pltd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

35

631905R91

SPROCKET

17T drive chain tightener

1шт.

18619R11

BOLT

W/NUT, 5/8 x 2-1/4" cd-pltd

1шт.

578274R1

WASHER

21/32 x 1 x 11 ga

1шт.

36

592967R1

BLOCK, channel filler

1шт.

15001R11

BOLT (SPREADER)

BOLT W/NUT, 5/16 x 7/8" crg

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

37

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

idler and tightener sprocket

2шт.

CHAIN, standard 5/8" pitch jackshaft drive (order 1-1791D, 10 ft chain reduce to 202 links add 3-1315D offset links & 2-1310D connecting links)(assemble in sequence of 1 connecting link, 197 regular links, 1 connecting link, 5 regular links 3 offset links)

1шт.

39

631905R91

SPROCKET

17T jackshaft drive chain tightener

1шт.

19408R11

BOLT W/NUT, 5/8 x 2-3/4" cd-pltd

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

40

631905R91

SPROCKET

17T jackshaft drive chain idler

1шт.

18626R11

BOLT W/NUT, 5/8 x 3" cd-pltd

1шт.

462623R1

WASHER, 21/32 x 1-1/2 x 11 ga

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

41

594988R1

LEVER, feed control extension

1шт.

18494R11

SCREW

BOLT W/NUT, 3/8 x 1" cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

42

594989R1

ROD, feed control

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga cd-pltd

1шт.

43

594990R1

SUPPORT, feed control rod

3шт.

44

610848R1

GRIP, feed control rod handle

1шт.
