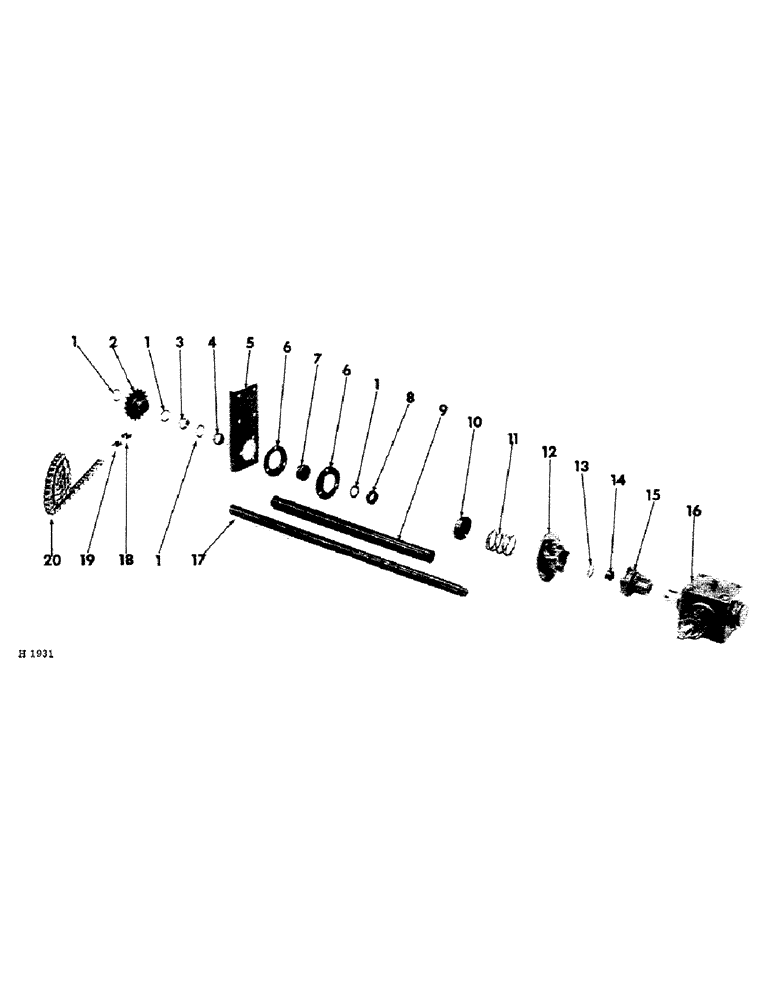

Запчасти Case IH 320 (M-12) - WIDESPREAD DRIVE CLUTCH & SHAFT

1

608700R1

WASHER

1-9/32 x 2" x 16 ga cd-pltd

1шт.

2

593060R91

SPROCKET, 18T widespread drive

1шт.

586879R1

KEY

5/16 x 5/16 x 2" straight

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

3

630669R1

SPACER, widespread drive sprocket

1шт.

4

557995R11

COLLAR

brg locking, (includes 115321, screw)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

5

593010R1

SUPPORT, drive shaft

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

W/NUT, 1/2 x 1" cd-pltd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, drive shaft brg

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

7

617668R91

BALL BEARING

beater drive shaft

1шт.

8

612867R1

COLLAR

shield tube

1шт.

613971R1

SCREW, 3/8 x 5/16" hdls-soc knurled cup-pt set

2шт.

9

593014R1

TUBE,1.312" ID, 24" Length

drive shaft shield

1шт.

10

608070R1

CUP, throw-out spg retaining

1шт.

11

369A

SPRING

throw-out clutch

1шт.

12

593009R1

PLATE

throw-out clutch

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

LUB-FTG, 1/4" NF

1шт.

13

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga cd-pltd shaft

1шт.

14

610517R1

BUSHING

throw-out clutch

1шт.

15

593008R11

CLUTCH

drive throw-out, (includes 610517R1, bushing)

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

113879

KEY

5/16 x 1-1/4" Woodruff

1шт.

16

592984R91

GEAR CASE, (for component parts refer to "Miter Gear Case")

1шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

3/8 x 7/8" cd-pltd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

17

593012R1

SHAFT, widespread drive

1шт.

17086R1

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

608700R1

WASHER

WASH, 1-9/32 x 2" x 16 ga cd-pltd

1шт.

18

611361R91

DRAG LINK

LINK, drive chain connecting

1шт.

19

612612R91

CHAIN LINK

LINK, drive chain offset

2шт.

20

CHAIN, widespread beater drive 3/4" pitch standard, (order 1-611362R91 10 ft chain, reduce to 105 links, add 2-612612R91, offset links & 1-611361R91, connecting link)

1шт.
