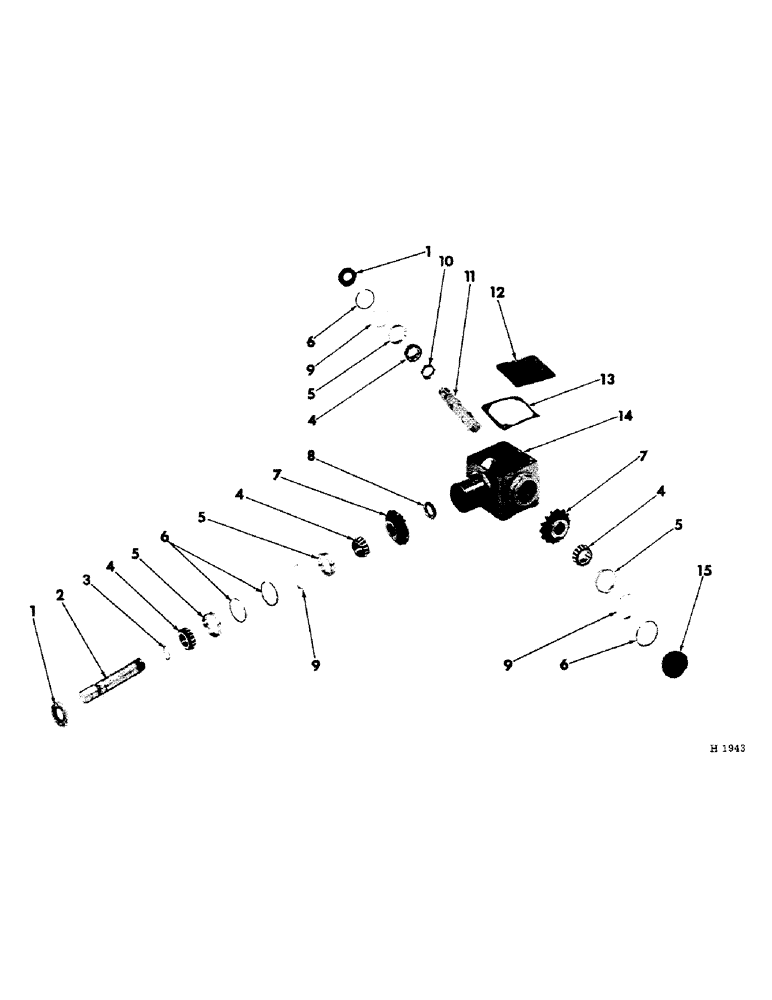

Запчасти Case IH 320 (M-11) - MITER GEAR CASE

592961R91

CASE

miter gear, (composed of parts listed, unless otherwise noted)

1шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

3/8 x 7/8" cd-pltd mach

4шт.

+: Not part of miter gear case

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

+: Not part of miter gear case

1шт.

1

594435R91

OIL SEAL

gear housing oil

2шт.

2

594431R1

SHAFT

gear input

1шт.

3

594440R1

RING

input shaft retaining

1шт.

4

459456R91

CONE

input & output shaft brg

4шт.

5

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP, input & output shaft brg

4шт.

6

594433R1

RING

brg retaining

4шт.

7

594430R1

GEAR

miter

2шт.

103909

KEY

1/4 x 1-1/8 Woodruff

2шт.

8

594436R1

NUT

gear shaft lock

1шт.

9

594441R1

SHIM

gear housing

1шт.

10

594439R1

NUT

output shaft lock

1шт.

11

594432R1

SHAFT

gear output

1шт.

12

594437R1

COVER

gear housing

1шт.

356569R1

PLUG

cover vent

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

594438R1

GASKET

housing cover

1шт.

14

594429R1

HOUSING

gear

1шт.

103879

PLUG, 3/8" sq-hd pipe

1шт.

15

594434R1

CAP

gear housing

1шт.
