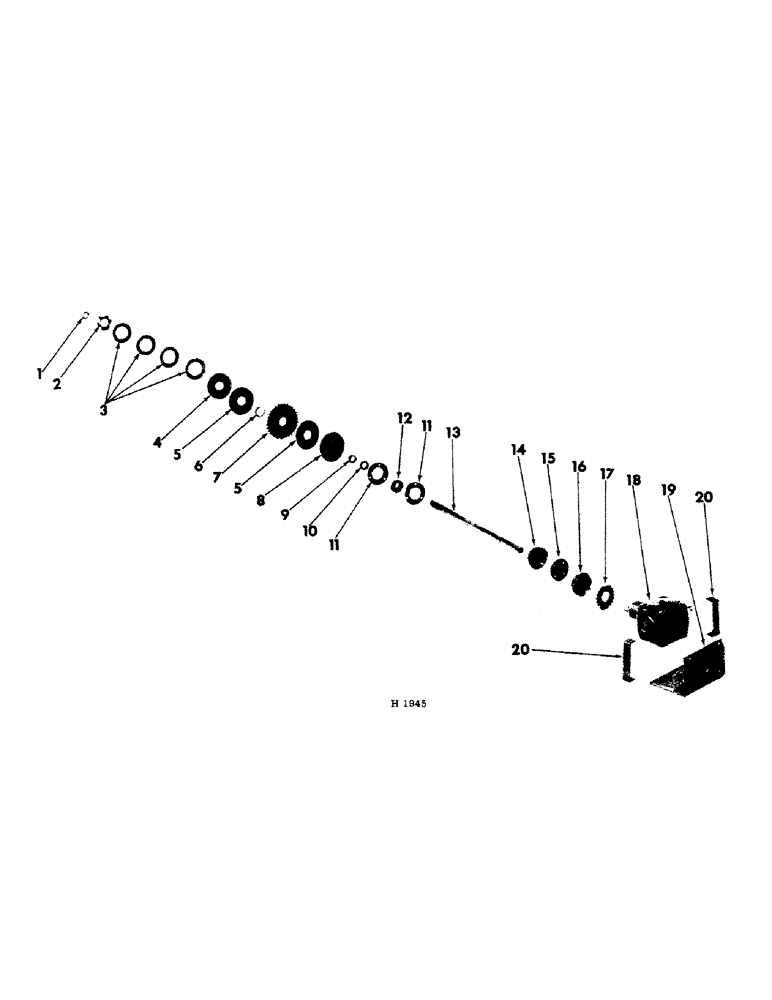

Запчасти Case IH 320 (M-10) - MAIN DRIVE SHAFT

1

20885R1

WASHER

1-5/32 x 2" x 16 ga cd-pltd

2шт.

2

592957R1

COLLAR

clutch locking

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1" cd-pltd mach

1шт.

3

592956R1

BELLEVILLE WASHER

clutch

4шт.

4

592955R1

PLATE

clutch

1шт.

5

592952R1

FACING

clutch

2шт.

6

592954R1

BUSHING

clutch sprocket

1шт.

7

592953R11

SPROCKET, 32T clutch, (includes 592954R1, bush)

1шт.

592954R1

BUSHING

BUSH, clutch sprocket

1шт.

8

592951R1

HUB

drive shaft clutch

1шт.

T14185

KEY, 1/4 x 1/4 x 2-3/4" straight 1/4" Sq x 2 3/4", Par

1шт.

9

567961R1

SPACER, brg & clutch hub

1шт.

10

557115R11

COLLAR

COLLAR, shaft brg locking, (includes 115321, screw)(Fafnir or New Departure, use 2/455960R91 brg)

3шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

3шт.

10

610537R11

COLLAR

shaft brg locking, (includes 115321, screw), (SKF, use w/610536R91, brg)

3шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

3шт.

11

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, shaft brg

6шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

12

455960R91

BALL BEARING

BEARING, main drive shaft, (Fafnir or New Departure, use w/557115R11, collar)

3шт.

12

610536R91

BEARING

main drive shaft, (SKF for use w/610537R11, collar)

3шт.

13

592948R1

SHAFT, main drive

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

14

592958R1

COUPLING

shaft front

1шт.

21028R1

SCREW, 5/16 x 7/8" cd-pltd sq-hd cone-pt set

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16" cd-pltd jam

1шт.

15

608054R1

PAD

rear coupling disk rubber

1шт.

16

592959R1

COUPLING

shaft rear

1шт.

192

KEY,5/16" Sq x 1 5/8", Par

5/16 x 5/16 x 1-5/8" straight

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4" type 2 cd-pltd

4шт.

231-1448

NUT,1/2"-13, GB

LK-NUT, 1/2" special cd-pltd

4шт.

17

592960R1

SPROCKET ASSY.

SPROCKET, jackshaft drive chain

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1" cd-pltd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

592961R91

CASE

GEAR CASE, miter, (for component parts refer to "Miter Gear Case")

1шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

3/8 x 7/8" cd-pltd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

19

592962R11

BRACKET, gear case

1шт.

17442R1

BOLT W/NUT, 1/2 x 1-1/8" cd-pltd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20

592864R11

CHANNEL, miter gear case

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" cd-pltd mach

2шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1" cd-pltd no. 3 plow

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
