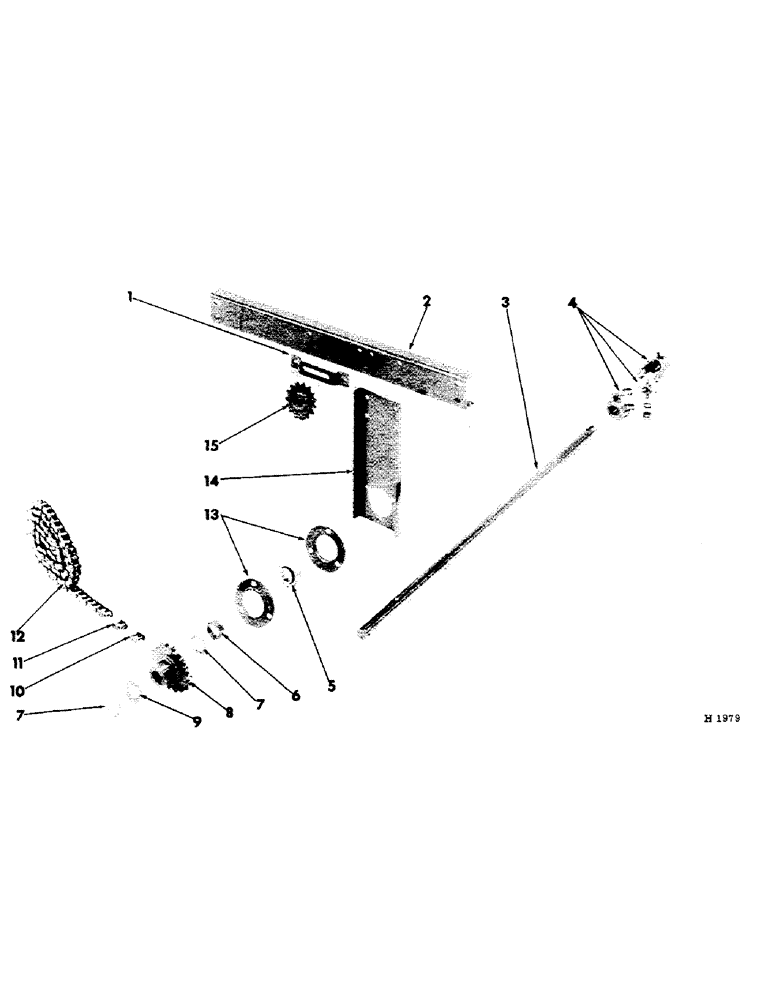

Запчасти Case IH 320 (M-08) - FRONT DRIVE SHAFT

1

592946R1

SUPPORT, chain tightener

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

592941R1

CHANNEL, drive shaft brg bracket

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

W/NUT, 1/2 x 1-1/4" cd-pltd mach

4шт.

607895R1

WASHER

WASH, 17/32 x 1 x 11 ga cd-pltd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

462583R1

SHAFT, front drive

1шт.

657196R1

PIN

1/4 x 2" slt-spg

1шт.

20885R1

WASHER

WASH, 1-5/32 x 2 x 16 ga cd-pltd

4шт.

4

COUPLING, universal PTO (for component parts refer to the applicable "PTO Universal Coupling")

1шт.

5

455960R91

BALL BEARING

BEARING, front drive shaft (Fafnir & New Departure, use w/557115R11, collar)

1шт.

5

610536R91

BEARING

front drive shaft (SKF, use w/610537R11, collar)

1шт.

6

557115R11

COLLAR

COLLAR, drive shaft brg locking (includes 115321, screw), (Fafnir & New Departure use w/455960R91 brg)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

6

610537R91

COLLAR, drive shaft brg locking (includes 115321 screw), (SKF, use w/610536R91, brg)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

7

20885R1

WASHER

1-5/32 x 2 x 16 ga cd-pltd

4шт.

8

592943R11

SPROCKET ASSY.

SPROCKET, 18T drive shaft

1шт.

586879R1

KEY

5/16 x 5/16 x 2" straight

1шт.

657196R1

PIN

1/4 x 2" slt-spg

1шт.

9

615255R1

WASHER, 1-5/32 x 2-1/2 x 5/16" thick

2шт.

10

611361R91

DRAG LINK

LINK, drive chain connecting

1шт.

11

612612R91

CHAIN LINK

LINK, drive chain offset

1шт.

12

CHAIN, 3/4" pitch standard (order 1-611362R91, 10 ft chain, reduce to 77 links, add 1-612612R91, offset link & 1-611361R91, connecting link)

1шт.

13

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, drive shaft brg

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

14

592942R1

CHANNEL, brg bracket lower

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" cd-pltd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

15

582389R1

SPROCKET, 15T chain tightener

1шт.

10759R1

BOLT W/NUT, 5/8 x 2-1/4" cd-pltd crg

1шт.

578274R1

WASHER

WASH, 21/32 x 1 x 11 ga

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
