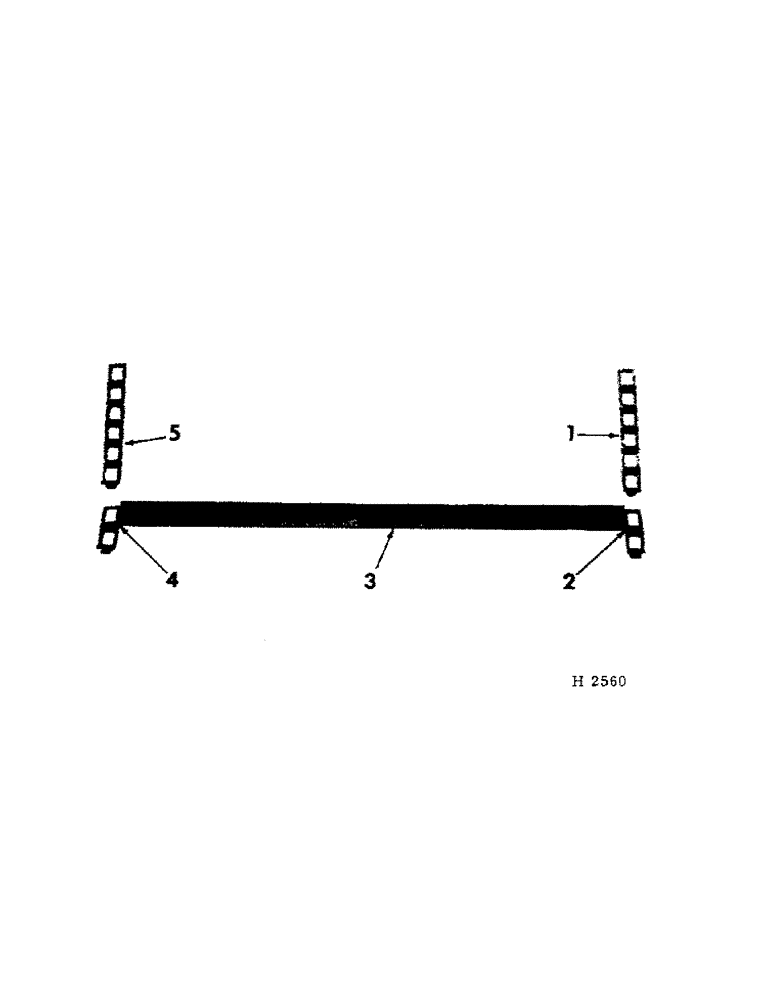

Запчасти Case IH 320 (M-06) - APRON CHAIN, REGULAR, STANDARD TYPE

593000R91

CHAIN, apron, (all parts listed)

2шт.

CHAIN, apron LH, (for service of single LH chain, order 2-CS67XH, 10 ft chains & when using 25-613787R11, attaching links, reduce the chains to a total of 102 links. However, when using 25-609279R1, attaching links, reduce the chains to a total of 127 links)

1шт.

2

613787R11

LINK ASSY.,67 Links x 58.75mm = 3936.25mm

LINK, chain attaching LH, (opt w/609276R1, link), (50)

1шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd, (50)

1шт.

2

609279R1

LINK, chain attaching LH, (opt w/613787R11, link), (50)

1шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd, (50)

1шт.

3

593005R91

MEMBER

CROSSMEMBER, apron, (includes 613787R11 & 313788R11, links and 106915, rivets), (opt w/593606R91, crossmember), (50)

1шт.

3

593006R91

CROSSMEMBER, apron, (includes 609279R1 & 609280R1, links and 106915, rivets), (opt w/593005R91, crossmember), (50)

1шт.

4

613788R11

LINK ASSY.,67 Links x 58.75mm = 3936.25mm

LINK, chain attaching RH, (opt w/609280R1, link), (50)

1шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd, (50)

1шт.

4

609280R1

LINK, chain attaching RH, (opt w/613788R11, link), (50)

1шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd, (50)

1шт.

CHAIN, apron RH, (for service of single RH chain, order 2-CS67XH, 10 ft chains & when using 25-613788R11 attaching links, reduce the chains to a total of 102 links. However, when using 25-609280R1, attaching links, reduce the chains to a total of 127 links)

1шт.

594804R91

CHAIN (AG)

CHAIN, apron, (all parts listed)

2шт.
