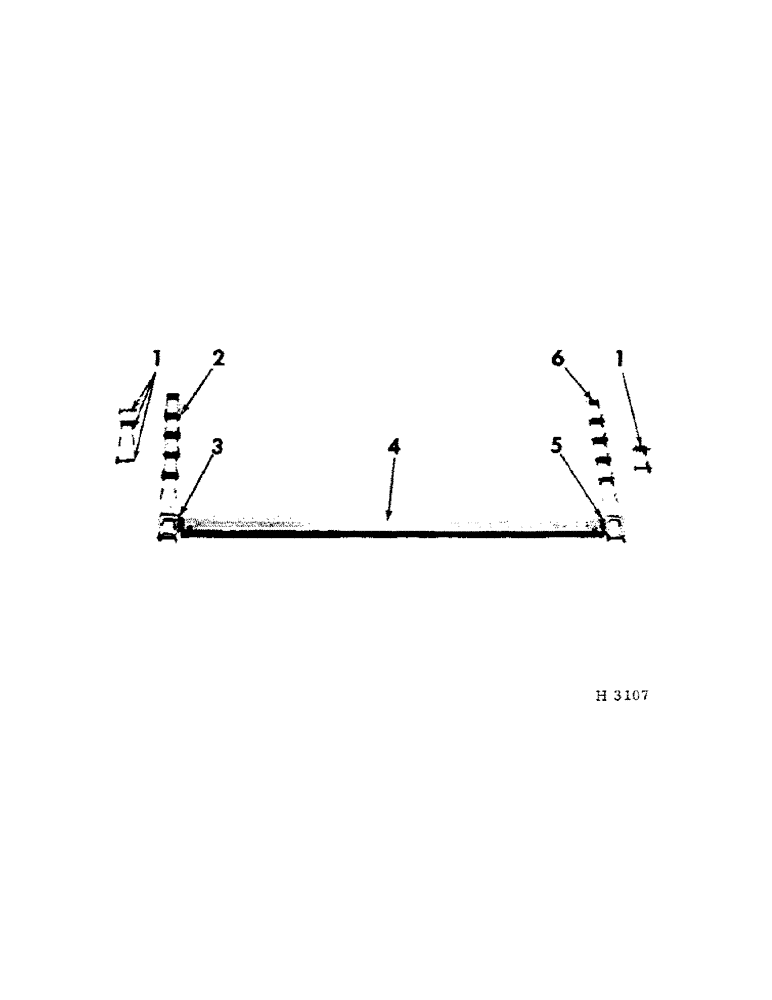

Запчасти Case IH 320 (M-06[A]) - APRON CHAIN, REGULAR, SPECIAL, PINTLE TYPE

1

594791R11

LINK W/PINS & COTTERS, connector

6шт.

594790R1

PIN, link coupler

12шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

12шт.

2

CHAIN, apron, LH, (for service of single LH chain order 3-CS667H 10 ft chains and reduces to 124 links, add 25-594788R11 attaching links and 3-594791R11 connector links)

1шт.

3

594788R11

LINK

W/PINS & COTTERS, attaching LH, (50)

1шт.

594790R1

PIN, link coupler, (100)

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), (100) 1/8" x 5/8"

1шт.

4

594803R91

MEMBER

CROSSMEMBER W/ATTACHING LINKS, apron, (50)

1шт.

5

594789R11

LINK

W/PINS & COTTERS, attaching RH, (50)

1шт.

594790R1

PIN, link coupler, (100)

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), (100) 1/8" x 5/8"

1шт.

6

CHAIN, apron RH, (for service of single RH chain, order 3-CS667H 10 ft chains, reduce to 124 links, add 25-594789R11 attaching links and 3-594791R11 connector links)

1шт.
