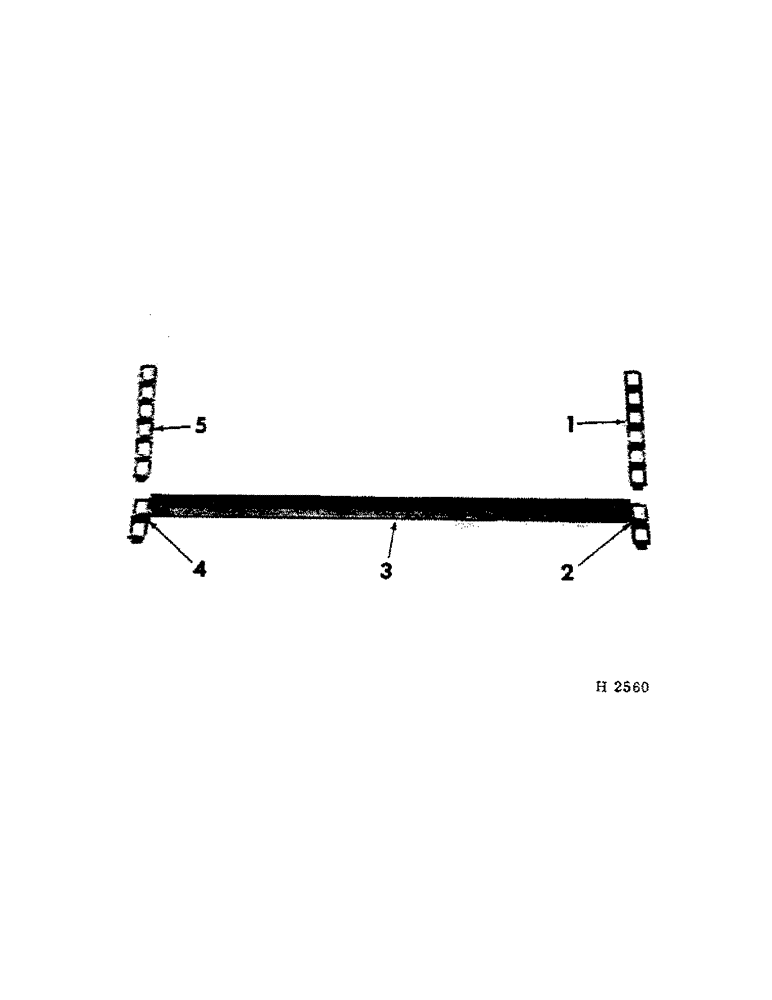

Запчасти Case IH 275 (L-06) - APRON CHAIN, REGULAR, STANDARD TYPE, APRON CHAIN

592999R91

CHAIN, apron (all parts listed)

2шт.

1

CHAIN, apron LH (for service or single LH chain, order 2-CS67XH, 10 ft. chains & when using 22-613787R11 attaching links, reduce the chains to a total of 88 links. However, when using 22-609279R1 attaching links, reduce the chains to a total of 110 links)

2шт.

2

613787R11

LINK ASSY.,67 Links x 58.75mm = 3936.25mm

LINK, chain attaching LH (opt w/609279R1, link)

44шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

44шт.

2

609279R1

LINK, chain attaching LH (opt w/613787R11, link)

44шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

44шт.

3

593005R91

MEMBER

CROSSMEMBER, apron (Includes 613787R11 & 613788R11, links & 106915 rivets) (Opt w/593006R91 crossmember)

44шт.

3

593006R91

CROSSMEMBER, apron (Includes 609279R1 & 609280R1, links & 106915, rivets) (opt w/593005R91, crossmember)

44шт.

4

613788R11

LINK ASSY.,67 Links x 58.75mm = 3936.25mm

LINK, chain attaching RH (Opt w/609280R1, link)

44шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

44шт.

4

609280R1

LINK, chain attaching RH (Opt w/613788R11, link)

44шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

44шт.

5

CHAIN, apron RH (for service of single RH chain, order 2-CS67XH 10 ft. chains & when using 22-613788R11, attaching links, reduce the chains to a total of 88 links. However, when using 22-609280R1 attaching links, reduce the chains to a total of 110 links)

2шт.

594800R91

CHAIN (AG)

CHAIN, apron (all parts listed)

2шт.
