(L-06[A]) - APRON CHAIN (SPECIAL-PINTLE TYPE)

Запчасти Case IH 275 (L-06[A]) - APRON CHAIN (SPECIAL-PINTLE TYPE)

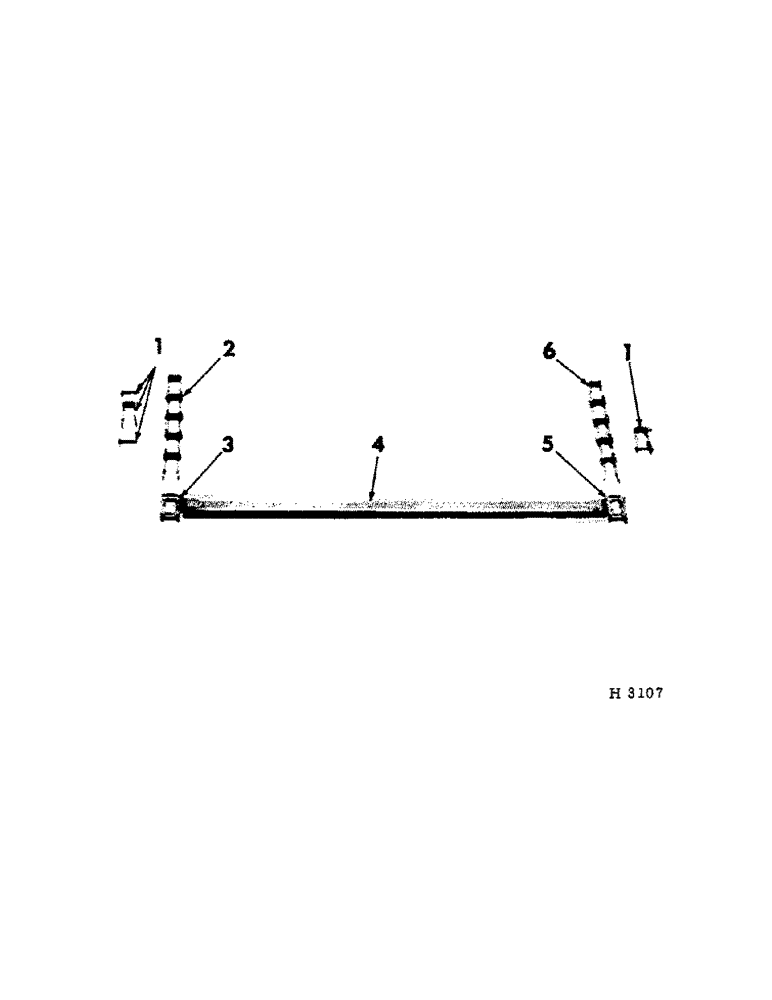

Схема запчастей Case IH 275 - (L-06[A]) - APRON CHAIN (SPECIAL-PINTLE TYPE)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

594791R11

LINK W/PINS & COTTERS, connector

6шт.

594790R1

PIN, link coupler

12шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

12шт.

2

CHAIN, apron, LH (for service of single LH chain, order 3-CS-667H 10 ft. chains, reduce to 107 links and 3-594791R11 connector links)

2шт.

3

594788R11

LINK

W/PINS & COTTERS, attaching LH

44шт.

594790R1

PIN, link coupler

88шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

88шт.

4

594803R91

MEMBER

CROSSMEMBER W/ATTACHING LINKS, apron

44шт.

5

594789R11

LINK

S W/PINS & COTTERS, attaching RH

44шт.

594790R1

PIN, link coupler

88шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

88шт.

6

CHAIN, apron (for service of single RH chain, order 3-CS-667H, 10 ft. chains, reduce to 107 links add 22-594789R11 attaching links and 3-594791R11 connector links)

2шт.
