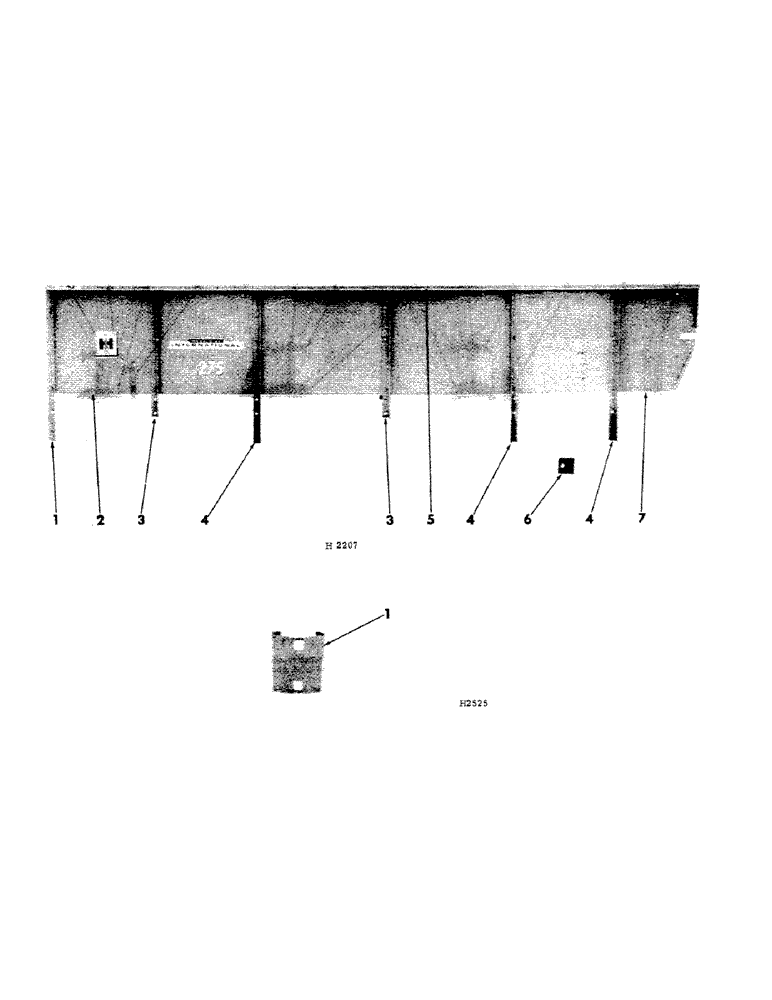

Запчасти Case IH 275 (L-04) - SPREADER BOX SIDE, HIGHWAY SAFETY LIGHTING
№
Артикул
Название
Примечание
Количество
1
592896R1
POST, front corner LH
1шт.
1
592897R1
POST, front corner RH
1шт.
17433R1
HARDWARE,Hex, 1/2" - 13 x 1", Gr 2
BOLT W/NUT, 1/2 x 1 cd-pltd mach
6шт.
120384
WASHER,1/2"
LOCK, 1/2"
6шт.
2
592879R1
BOARD, side LH
1шт.
2
592880R1
BOARD, side RH
1шт.
19432R1
BOLT W/NUT, 3/8 x 1-3/8 cd-pltd crg
18шт.
3
592884R1
ANGLE, 1st & 3rd RH
2шт.
3
592885R1
ANGLE
1st & 3rd LH
2шт.
17433R1
HARDWARE,Hex, 1/2" - 13 x 1", Gr 2
BOLT W/NUT, 1/2 x 1 cd-pltd mach
8шт.
120384
WASHER,1/2"
LOCK, 1/2"
8шт.
4
592886R1
ANGLE, 2nd & 5th LH
2шт.
4
592887R1
ANGLE
4th LH
1шт.
4
592887R1
ANGLE
2nd & 5th RH
2шт.
4
592886R1
ANGLE, 4th RH
1шт.
17433R1
HARDWARE,Hex, 1/2" - 13 x 1", Gr 2
BOLT W/NUT, 1/2 x 1 cd-pltd mach (12-LH, 11-RH)
1шт.
120384
WASHER,1/2"
LOCK, (12-LH, 11-RH) 1/2"
1шт.
5
592890R1
CHANNEL, top LH
1шт.
5
592891R1
CHANNEL
top RH
1шт.
19427R1
BOLT
W/NUT, 3/8 x 7/8 cd-pltd crg
6шт.
19433R1
BOLT W/NUT, 3/8 x 1-1/2 cd-pltd crg
12шт.
18422R1
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2
BOLT W/NUT, 3/8 x 1-3/4 cd-pltd crg
12шт.
469668R1
WASHER
13/32 x 3/4 x 16 ga cd-pltd
12шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
30шт.
6
592883R1
STRIP
board support (3-LH, 4-RH)
1шт.
19573R1
BOLT,Hex, 3/8"-16 x 7/8", G2
W/NUT, 3/8 x 7/8 cd-pltd mach (3-LH, 4-RH)
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, (3-LH, 4-RH) 3/8"
1шт.
7
592888R1
SIDE, rear LH
1шт.
7
592889R1
SIDE, rear RH
1шт.
19433R1
BOLT W/NUT, 3/8 x 1-1/2 cd-pltd crg
4шт.
18707R1
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2
BOLT W/NUT, 1/2 x 1 cd-pltd crg
4шт.
17140R1
CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd
BOLT W/NUT, 1/2 x 1-1/4 cd-pltd crg
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
6шт.
624341R1
SOCKET
BRACKET, warning lamp mounting
1шт.
14995R1
BOLT
W/NUT, 5/16 x 5/8 crg
2шт.
Q398
WASHER
11/32 x 7/8 x 16 ga
2шт.
Выбрано товаров: 38
