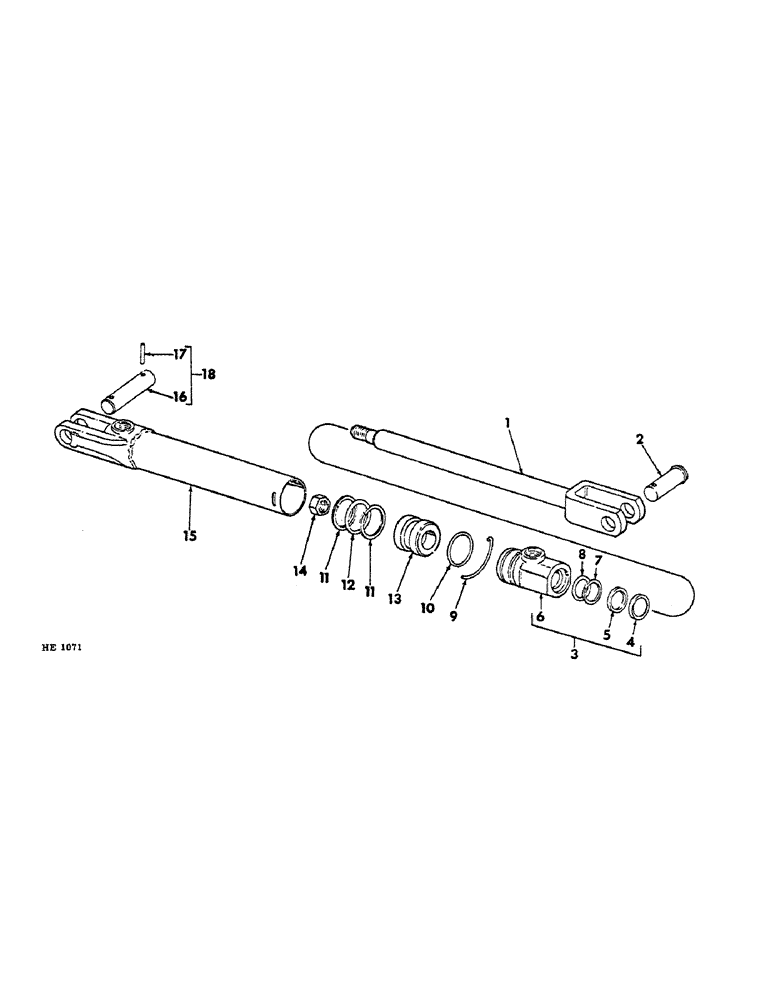

Запчасти Case IH 275 (L-52) - LIFT ARM HYDRAULIC CYLINDER, (2 X 8 STROKE), (ENDGATE)

381833R91

CYLINDER

ASSY, hydraulic endgate (composed of all parts listed unless otherwise noted)

2шт.

1

381842R91

ROD

piston

1шт.

2

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 x 2-3/4" headed

1шт.

520175R1

CLIP

C-PIN, qiuick-attachable

1шт.

3

381803R11

HEAD

ASSY, rod end, composed of (1) head (NSS), (1) seal (NSS), (1) retainer (NSS)

1шт.

4

SEAL, piston rod dust (for service order 1 - 386685R91, kit)

1шт.

5

RETAINER, piston rod dust (for service order 1 - 386685R91, kit)

1шт.

6

HEAD, rod end (for service order 1 - 381803R11, head assy)

1шт.

7

383669R1

BACK-UP RING

hyd cylinder gland back-up

1шт.

8

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

hyd cylinder gland

1шт.

9

461180R1

RETAINER

RING, retaining

1шт.

10

384251R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

rod end head

1шт.

11

381850R1

WASHER

piston head back-up

2шт.

12

381565R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

piston head

1шт.

13

381849R1

HEAD

piston

1шт.

14

385054R1

NUT

3/4-16 hex lock (opt w/385020R1, nut)

1шт.

14

385020R1

NUT

3/4-16 hex lock (opt w/385054R1, nut)

1шт.

15

381820R91

TUBE, cylinder

1шт.

16

381852R1

PIN, cylinder pivot

1шт.

17

591260R1

Pin, 1/4" x 1 7/8", Coiled 1/4" x 1 7/8", Coiled

1шт.

18

381852R11

PIN

ASSY, cylinder pivot (includes 1 - 381852R1, pin & 1 - 591260R1, pin)

1шт.

520175R1

CLIP

C-PIN, quick-attachable

1шт.

386685R91

KIT

KIT, hydraulic cylinder service composed of (1) o-ring 381565R1, (2) washer 381850R1, (1) seal (NSS), (1) retainer (NSS), (1) o-ring 354047R1, (1) washer 383669R1, (1) o-ring 384251R1

1шт.
