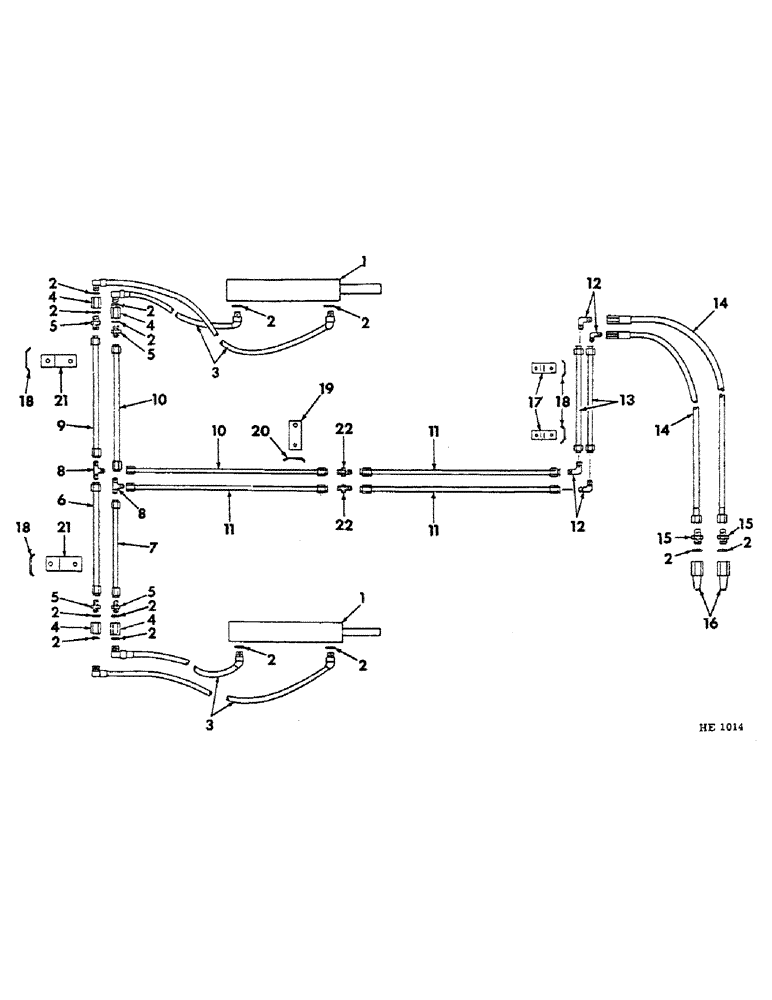

Запчасти Case IH 275 (L-51) - HYDRAULIC SYSTEM (ENDGATE)

1

381833R91

CYLINDER

ASSY, lift arm hydraulic (for service parts refer to "lift arm hydraulic cylinder")

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic seal

14шт.

3

371800R91

HOSE

hydraulic

4шт.

4

584802R1

CONNECTOR, ELEC

UNION, hydraulic hose adapter

4шт.

5

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 hydraulic

4шт.

6

820029C11

REAR, right lower

1шт.

7

820028C11

TUBE, rear right raise 0.625" OD, 16.5" Length

1шт.

8

9402983

TEE,7/8"-14, 37 Degree

hydraulic connection

2шт.

9

820032C11

TUBE, rear left lower

1шт.

10

820034C11

TUBE, rear lift raise & rear center lower

2шт.

11

820033C11

TUBE, rear center raise & front center raise & lower

3шт.

12

9402944

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8-14 hydraulic

4шт.

13

820030C11

TUBE, front raise & lower

2шт.

14

560193R92

HOSE

, Serial Range: tractor-spreader

2шт.

15

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 hydraulic

2шт.

16

395149R1

QUICK MALE COUPLING

COUPLER, male hose

2шт.

17

820038C1

SUPPORT

front tube

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18

820036C1

SUPPORT

CLAMP, dual tube clamping

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

19

820037C1

BAR, dual tube rear center

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20

820036C1

SUPPORT

CLAMP, dual tube rear center

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2" crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21

820035C1

SUPPORT

right & left tube

2шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 5/8 x 1-1/4" type 1 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

9402788

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8-14 hydraulic

2шт.
