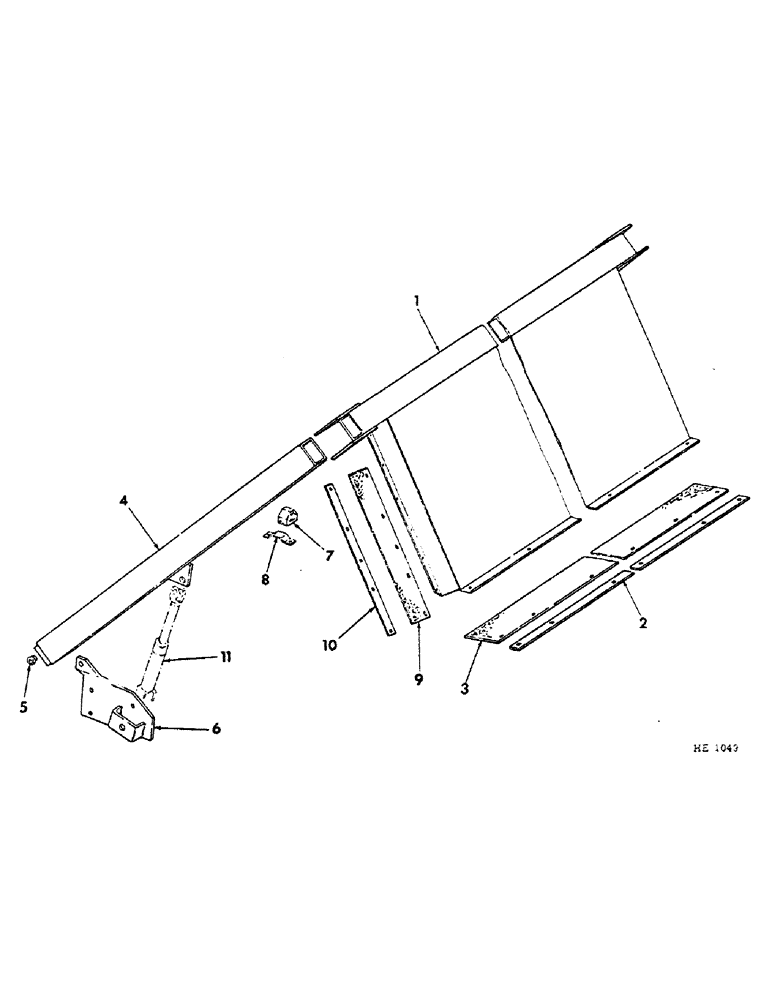

Запчасти Case IH 275 (L-50) - ENDGATE AND ARMS, (275 MANURE SPREADER)

1

820011C1

GUIDE

ENDGATE, rear

1шт.

2

592902R1

STRIP

bottom cover

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

7шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

3

592901R1

COVER

endgate bottom (rubber)

1шт.

4

820016C1

ARM ASSY.

ARM, lift LH shown

1шт.

4

820017C1

ARM

lift RH

1шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5"

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

820021C1

BUSHING

lift arm pivot

2шт.

6

820022C1

BRACKET

arm mounting LH shown

1шт.

6

820023C1

BRACKET

arm mounting RH

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

7

868261R1

BUMPER

endgate

2шт.

8

820027C1

SUPPORT, bumper

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

820102C1

STRIP

endgate end cover (rubber)

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

10

820101C1

BAR, cover strip

2шт.

11

381833R91

CYLINDER

hydraulic endgate (for service parts refer to "lift arm hydraulic cylinder" endgate)

1шт.
