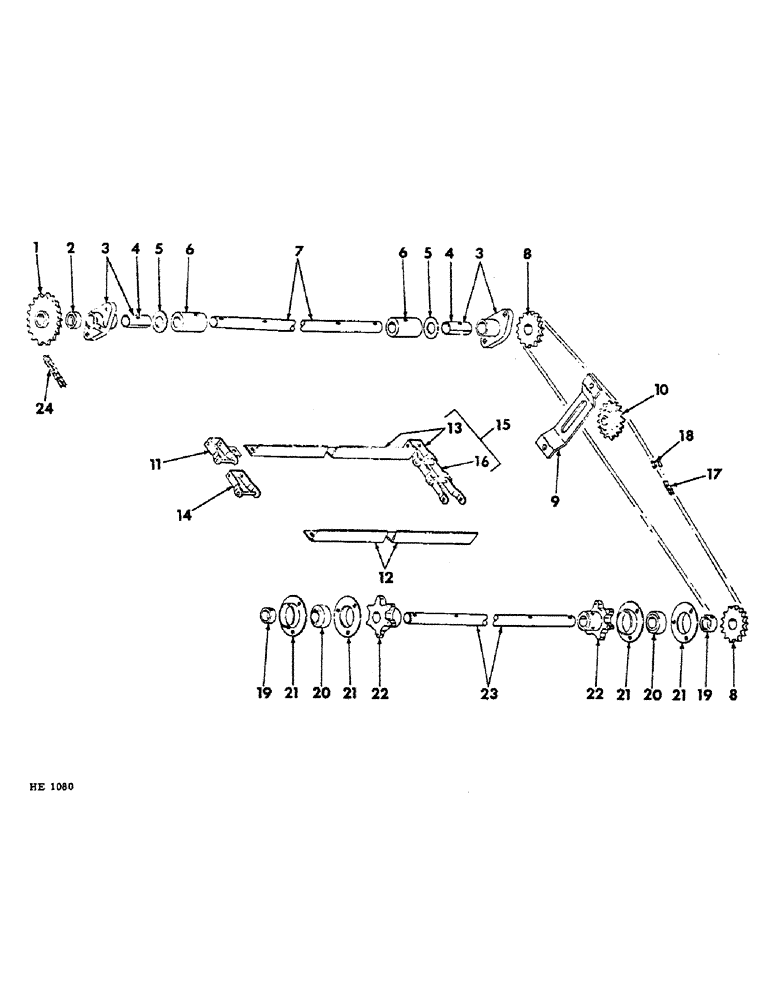

Запчасти Case IH 275 (L-48) - BUNK FEED EXTENSION CONVEYOR DRIVE, (1970 AND SINCE)

1

820073C1

SPROCKET ASSY.

SPROCKET, conveyor drive

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

2

455750R1

SPACER, drive shaft bearing

1шт.

3

594972R11

BEARING W/BUSHING, conveyor drive shaft

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg (front bearing)

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg (rear bearing)

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8", 65 deg. lub

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Front bearing 3/8"

1шт.

4

594973R1

BUSHING, drive shaft bearing

2шт.

5

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga (as required)

2шт.

6

594997R1

SPACER

BUSHING, conveyor chain guide

2шт.

19424R1

PIN,3/8" x 1 1/2", Coiled

2шт.

7

820072C1

SHAFT

conveyor drive

1шт.

8

451123R1

SPROCKET, 16T extension drive

2шт.

616387R1

PIN,3/8" x 2", Coiled

2шт.

9

596505R1

BRACE, chain tightener extension

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

631905R91

SPROCKET

17T drive chain extension

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

594960R11

LINK

W/PINS & COTTERS, attaching

10шт.

594961R1

PIN

link coupler

20шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

20шт.

12

594958R1

ANGLE, conveyor

5шт.

106900

RIVET,Truss Hd, 1/4" x 3/4"

10шт.

13

594959R91

ANGLE

W/ATTACHING LINKS, conveyor composed of: (1) angle 594958R1, (2) rivet 106900, (2) link (attaching) 594960R11

5шт.

14

594962R11

LINK

W/PINS & COTTERS, connecting

2шт.

594961R1

PIN

link coupler

4шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

4шт.

15

596508R91

CONVEYOR ASSY, bunk feed extension (riveted) composed of: (5) angle w/att. links 594959R91, (74) link (riveted) (NSS), (2) link (connecting) 594962R11

1шт.

16

LINK, conveyor bunk feed extension (for service order 594962R11, replacement connecting link w/pins & cotters)

1шт.

17

CHAIN, standard 5/8" pitch extension drive (for service order 1, 1791D 10 ft chain, reduce to 131 links and add 1, 1310D connecting link)

1шт.

18

1310D

LINK

drive chain extension connecting

1шт.

19

455102R11

COLLAR

drive shaft bearing locking (includes 102569, screw) (for use w/455965R91, bearing)

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

19

607417R11

COLLAR

drive shaft bearing locking (LC-100 Fisher) (includes 1, 102569, screw) (for use w/16205-100 Fisher bearing)

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

20

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

extension drive shaft (for use w/455102R11, collar)

2шт.

20

BEARING, extension drive shaft (NSS) (16205-100 Fisher) (for service order 1, 455965R91, bearing and 1, 455102R11, collar)

2шт.

21

462360R1

FLANGED BEARING

RETAINER, bearing extension

4шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

22

594964R1

SPROCKET ASSY.

SPROCKET, 6 T extension conveyor drive

2шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

2шт.

23

596507R1

ROD

extension drive shaft

1шт.

24

CHAIN, conveyor drive (For service refer to "BUNK FEED MAIN DRIVE"

1шт.
