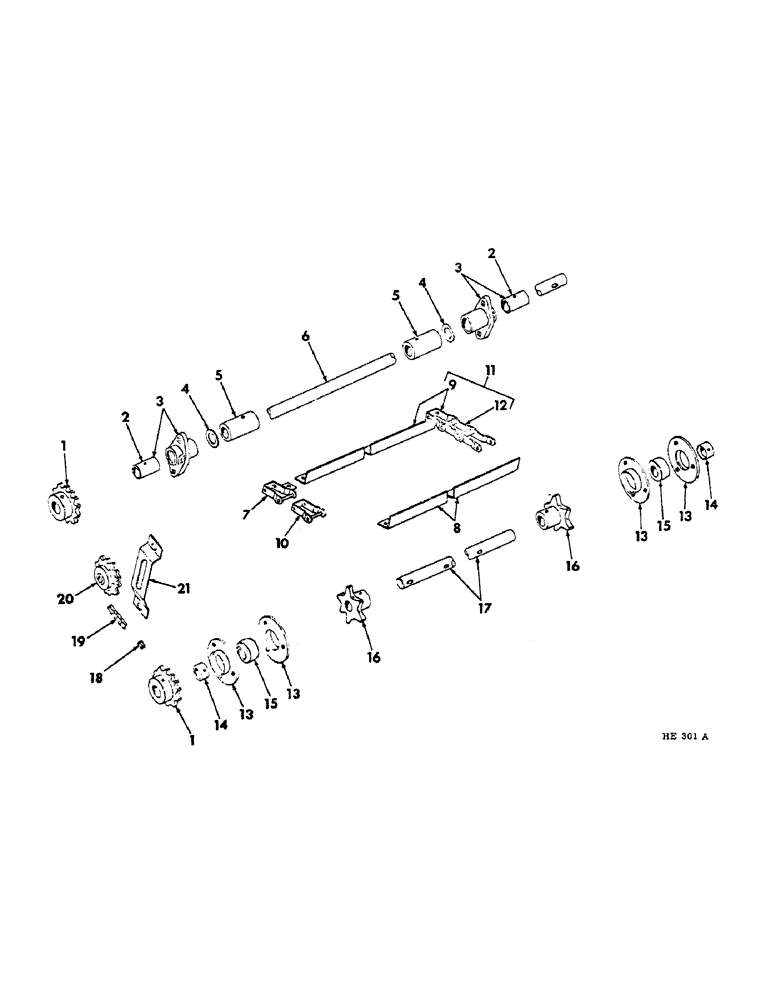

Запчасти Case IH 275 (L-46) - BUNK FEED EXTENSION CONVEYOR DRIVE, (PRIOR 1970)

1

451123R1

SPROCKET, 16T extension drive

2шт.

616387R1

PIN,3/8" x 2", Coiled

2шт.

2

594973R1

BUSHING, pivot shaft bearing

2шт.

3

594972R11

BEARING W/BUSHING, pivot shaft

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

19427R1

BOLT

3/8 x 7/8" crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga shaft

1шт.

5

594997R1

SPACER

BUSHING, conveyor chain guide

2шт.

19424R1

PIN,3/8" x 1 1/2", Coiled

2шт.

6

594970R1

SHAFT, bunk feed pivot

1шт.

7

594960R11

LINK

W/PINS & COTTERS, attaching

10шт.

594961R1

PIN

link coupler

20шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

20шт.

8

594958R1

ANGLE, conveyor

5шт.

106900

RIVET,Truss Hd, 1/4" x 3/4"

10шт.

9

594959R91

ANGLE

W/ATTACHING LINKS, conveyor composed of: (1) angle 594958R1, (2) rivet 106900, (2) link (attaching) 594960R11

5шт.

10

594962R11

LINK

W/PINS & COTTERS, connecting

2шт.

594961R1

PIN

link coupler

4шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

4шт.

11

596508R91

CONVEYOR ASSY, bunk feed extension (riveted) composed of: (5) angle w/att. links 594959R91, (74) link (riveted) (NSS), (2) link (connecting) 594962R11

1шт.

12

LINK, conveyor bunk feed extension (for service order 594962R11, replacement connecting link w/pins & cotters)

1шт.

13

462360R1

FLANGED BEARING

RETAINER, drive shaft bearing

4шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

14

455102R11

COLLAR

drive shaft bearing locking (includes 102569 screw) (for use w/455965R91, bearing)

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

14

607417R11

COLLAR

drive shaft bearing locking (LC-100 Fisher) (includes 1, 102569, screw) (for use w/16205-100 Fisher bearing)

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

15

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

extension drive shaft (for use w/455102R11, collar)

2шт.

15

BEARING, extension drive shaft (NSS) (16205-100 Fisher) (for service order 1, 455965R91, bearing and 1, 455102R11, collar)

2шт.

16

594964R1

SPROCKET ASSY.

SPROCKET, 6 T extension conveyor drive

2шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

2шт.

17

596507R1

ROD

extension drive shaft

1шт.

18

1310D

LINK

drive chain connecting

1шт.

19

CHAIN, standard 5/8" pitch extension drive (for service order 1, 1791D 10 ft chain, reduce to 131 links and add 1, 1310D connecting link)

1шт.

20

631905R91

SPROCKET

17T drive chain tightener

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2"

1шт.

Q1593

WASHER, 21/32 x 1-1/4 x 12 ga

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21

596505R1

BRACE, drive chain tightener

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
