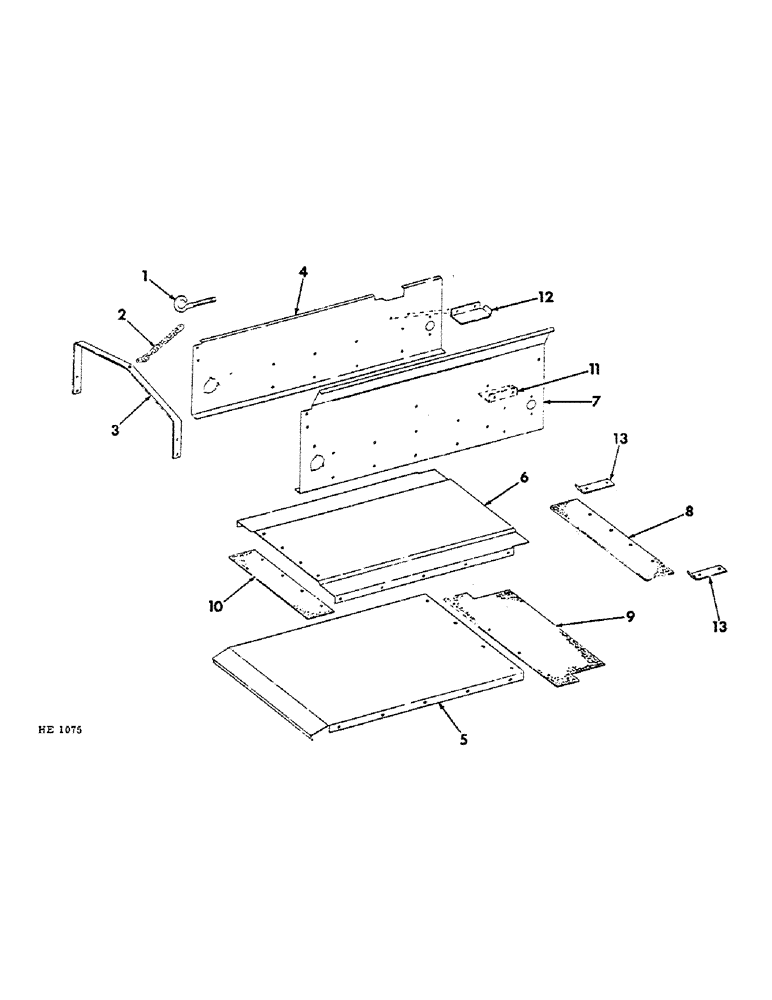

Запчасти Case IH 275 (L-45) - BUNK FEED EXTENSION, (1970 AND SINCE)

1

S2023

BOLT

HOOK, extension lift

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

596503R91

CHAIN (AG)

CHAIN, extension lift

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

596502R1

SUPPORT, extension lifting

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

820065C1

SIDE, extension front

1шт.

5

820066C1

SHIELD, extension bottom

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

6

820067C1

SECTION, extension floor

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

7

820068C1

SIDE, extension rear

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

8

820069C1

STRIP, conveyor drive shaft cover

1шт.

133891

SCREW, 3/8 x 3/4" flat-hd SLT

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

820070C1

COVER

extension bottom

1шт.

133891

SCREW, 3/8 x 3/4" flat-hd SLT

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

820054C1

STRIP

extension end conveyor cover strip

1шт.

133891

SCREW, 3/8 x 3/4" flat-hd SLT

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

596501R1

SUPPORT, conveyor chain guide rear

1шт.

12

596500R1

SUPPORT, conveyor chain guide front

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

820071C1

SUPPORT, chain guide

2шт.

133827

SCREW, 5/16 x 3/4" flat-hd SLT

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
