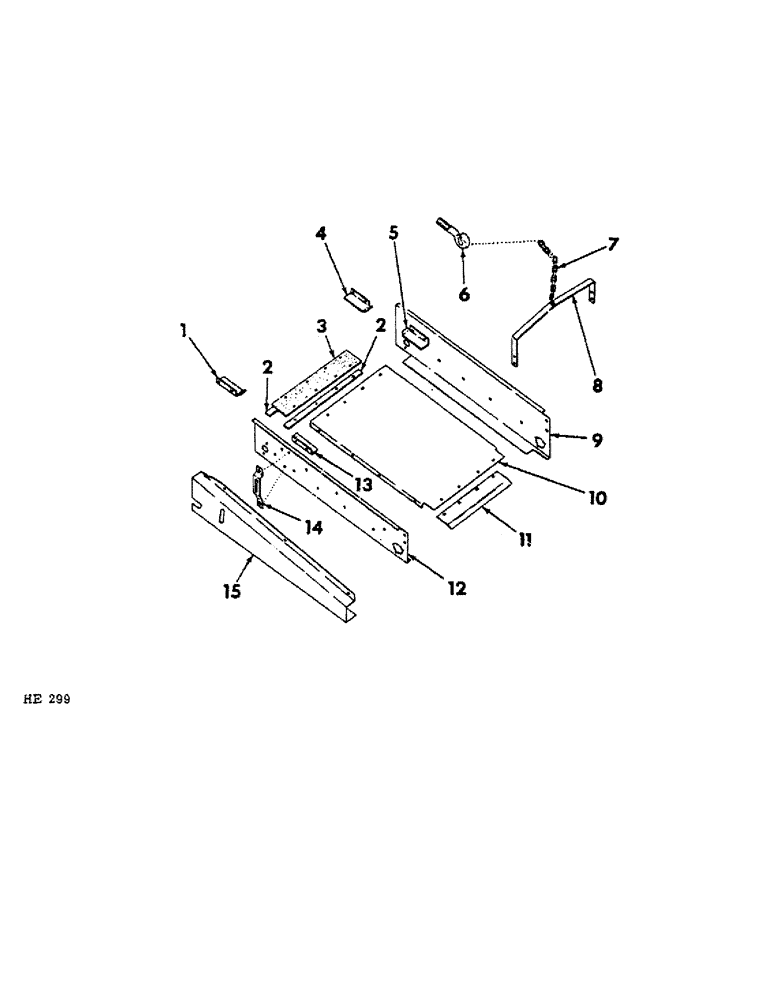

Запчасти Case IH 275 (L-44) - BUNK FEED EXTENSION ATTACHMENT, (PRIOR 1970)

1

594998R1

SUPPORT, feed box conveyor chain front

1шт.

2

594996R1

STRIP, extension connection cover

2шт.

16897R11

BOLT (SPREADER)

BOLT W/NUT, 5/16 x 3/4" cd-pltd crg

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

3

594995R1

COVER, extension connection

1шт.

4

594999R1

SUPPORT, feed box conveyor chain rear

1шт.

18778R11

BOLT

W/NUT, 3/8 x 3/4" cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

596501R1

SUPPORT, extension conveyor chain rear

1шт.

18778R11

BOLT

W/NUT, 3/8 x 3/4" cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

S2023

BOLT

EYEBOLT, extension lift chain

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga cd-pltd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

596503R91

CHAIN (AG)

CHAIN, extension lift

1шт.

17351R11

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

596502R1

SUPPORT, extension lifting

1шт.

18778R11

BOLT

W/NUT, 3/8 x 3/4" cd-pltd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

594993R1

SIDE, extension rear

1шт.

10

594994R1

SECTION, extension bottom

1шт.

19574R11

BOLT

W/NUT, 3/8 x 5/8" cd-pltd

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

11

594954R1

SECTION, extension deflector

1шт.

18673R11

BOLT

W/NUT, 5/16 x 1/2" cd-pltd crg

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

594992R1

SIDE, extension side

1шт.

13

596500R1

SUPPORT, extension conveyor chain front

1шт.

18778R11

BOLT

W/NUT, 3/8 x 3/4" cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

596505R1

BRACE, drive chain tightener

1шт.

18778R11

BOLT

W/NUT, 3/8 x 3/4" cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

596506R1

SHIELD, drive chain

1шт.

19574R11

BOLT

W/NUT, 3/8 x 5/8" cd-pltd

3шт.

18673R11

BOLT

W/NUT, 5/16 x 1/2" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
