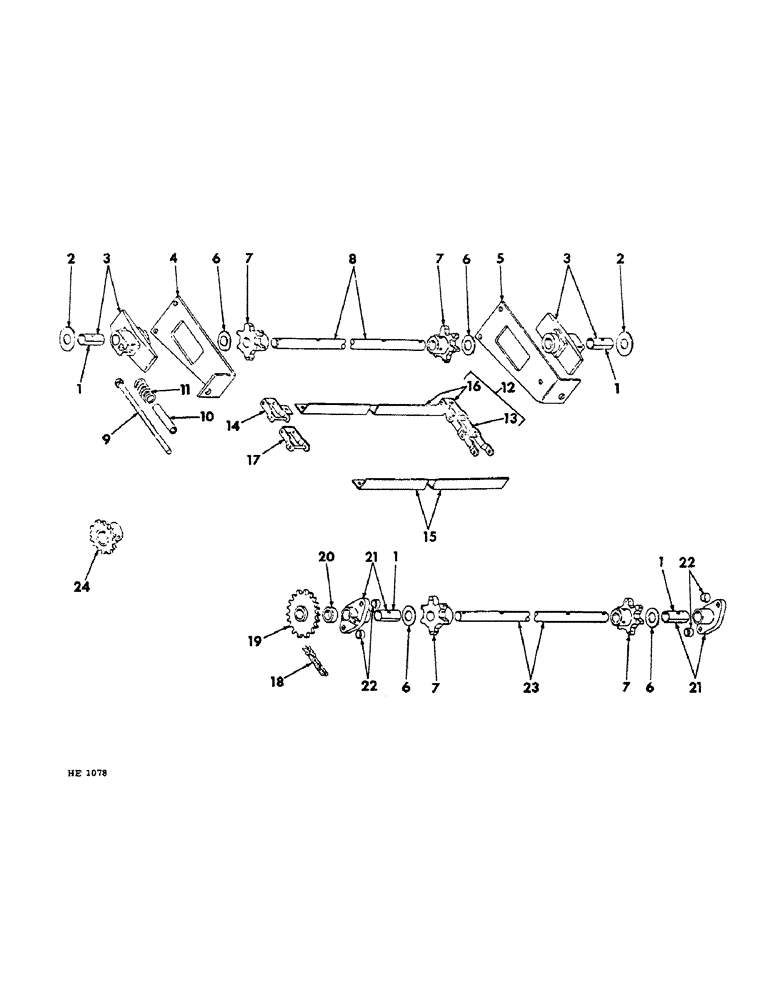

Запчасти Case IH 275 (L-42) - BUNK FEED BOX CONVEYOR DRIVE, (1970 AND SINCE)

1

594973R1

BUSHING, drive and conveyor shaft

4шт.

2

22181R1

WASHER, 1-1/32 x 2-1/2 x 16 ga

4шт.

3

820063C11

BEARING

W/BUSHING, conveyor shaft

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

4

820062C1

SUPPORT

front tightener

1шт.

5

820061C1

SUPPORT

rear tightener

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

6

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga

8шт.

7

594964R1

SPROCKET ASSY.

SPROCKET, 6T conveyor

4шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

4шт.

8

820060C1

SHAFT

conveyor tightener

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

9

592995R1

BOLT,Hex, 7/16" x 8 3/4"

conveyor shaft tightener

2шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

271501

SOCKET

NUT, 7/16"

4шт.

10

820085C1

BUSHING

tightener

2шт.

11

367254R2

SPRING

tightener

2шт.

12

594956R91

CONVEYOR ASSY, bunk feed box (riveted) composed of: (12) angle w/att. links 594959R91, (168) link (riveted) (NSS), (2) link (connecting) 594962R11

1шт.

13

LINK, conveyor bunk feed box (NSS) (for service order 594962R11, replacement connecting link w/pins & cotters)

1шт.

14

594960R11

LINK

W/PINS & COTTERS, attaching

24шт.

594961R1

PIN

link coupler

48шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

48шт.

15

594958R1

ANGLE, conveyor

12шт.

106900

RIVET,Truss Hd, 1/4" x 3/4"

24шт.

16

594959R91

ANGLE

W/ATTACHING LINKS, conveyor composed of: (1) angle 594958R1, (2) rivet 106900, (2) link (attaching) 594960R11

1шт.

17

594962R11

LINK

W/PINS & COTTERS, connecting

2шт.

594961R1

PIN

link coupler

4шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

4шт.

18

CHAIN, conveyor drive (for service refer to "Bunk Feed Main Drive")

1шт.

19

820073C1

SPROCKET ASSY.

SPROCKET, conveyor drive

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

20

455750R1

SPACER, drive shaft bearing

1шт.

21

594972R11

BEARING W/BUSHING, conveyor drive shaft

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8" 65 deg. lub

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

22

594974R1

SPACER

drive shaft

4шт.

23

820072C1

SHAFT

conveyor drive

1шт.

24

594955R11

SPROCKET ASSY.

SPROCKET, 14T widespread beater drive

1шт.
