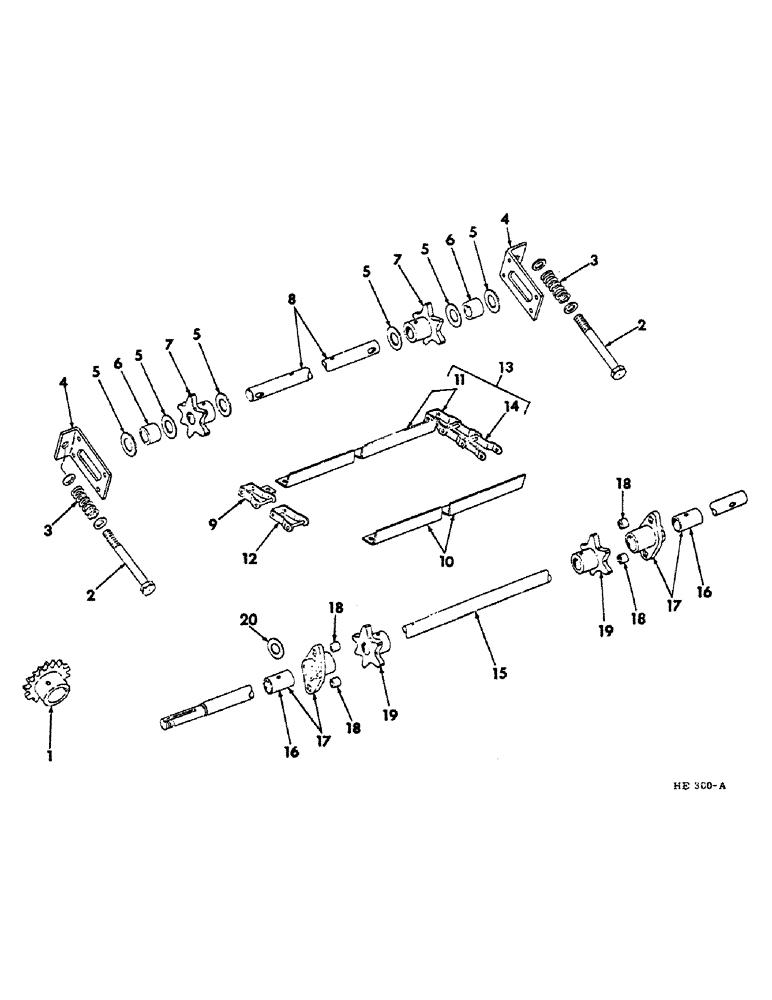

Запчасти Case IH 275 (L-40) - BUNK FEED BOX CONVEYOR DRIVE, (PRIOR 1970)

1

594955R11

SPROCKET ASSY.

SPROCKET, 14T widespread beater drive

1шт.

2

592995R1

BOLT,Hex, 7/16" x 8 3/4"

conveyor chain tightener

2шт.

21029R1

WASHER

15/32 x 1 x 16 ga

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

3

105414H

SPRING, tightener bolt tension

2шт.

4

594965R1

SUPPORT, conveyor tightener

2шт.

180120R1

BOLT, 3/8 x 3/4"

4шт.

133891

SCREW, 3/8 x 3/4" slt-fl-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

5

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga rod

6шт.

6

623907R1

SPACER,1" Pipe x 5/8"

tightener shaft

2шт.

7

594964R1

SPROCKET ASSY.

SPROCKET, 6T conveyor idler

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4" lub

2шт.

8

594963R1

ROD, conveyor tightener

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

9

594960R11

LINK

W/PINS & COTTERS, attaching

24шт.

594961R1

PIN

link coupler

48шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

48шт.

10

594958R1

ANGLE, conveyor

12шт.

106900

RIVET,Truss Hd, 1/4" x 3/4"

24шт.

11

594959R91

ANGLE

W/ATTACHING LINKS, conveyor composed of: (1) angle 594958R1, (2) rivet 106900, (2) link (attaching) 594960R11

12шт.

12

594962R11

LINK

W/PINS & COTTERS, connecting

2шт.

594961R1

PIN

link coupler

4шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

4шт.

13

594956R91

CONVEYOR ASSY, bunk feed box (riveted) composed of: (12) angle w/att links 594959R91, (168) link (riveted) (NSS), (2) link (connecting) 594962R11

1шт.

14

LINK, conveyor bunk feed box (NSS) (for service order 594962R11, replacement connecting link w/pins & cotters)

1шт.

15

594970R1

SHAFT, bunk feed pivot

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

16

594973R1

BUSHING, pivot shaft bearing

2шт.

17

594972R11

BEARING W/BUSHING, pivot shaft

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

594974R1

SPACER

pivot shaft bearing

4шт.

19

594964R1

SPROCKET ASSY.

SPROCKET, 6T conveyor drive

2шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

2шт.

20

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga shaft

2шт.
