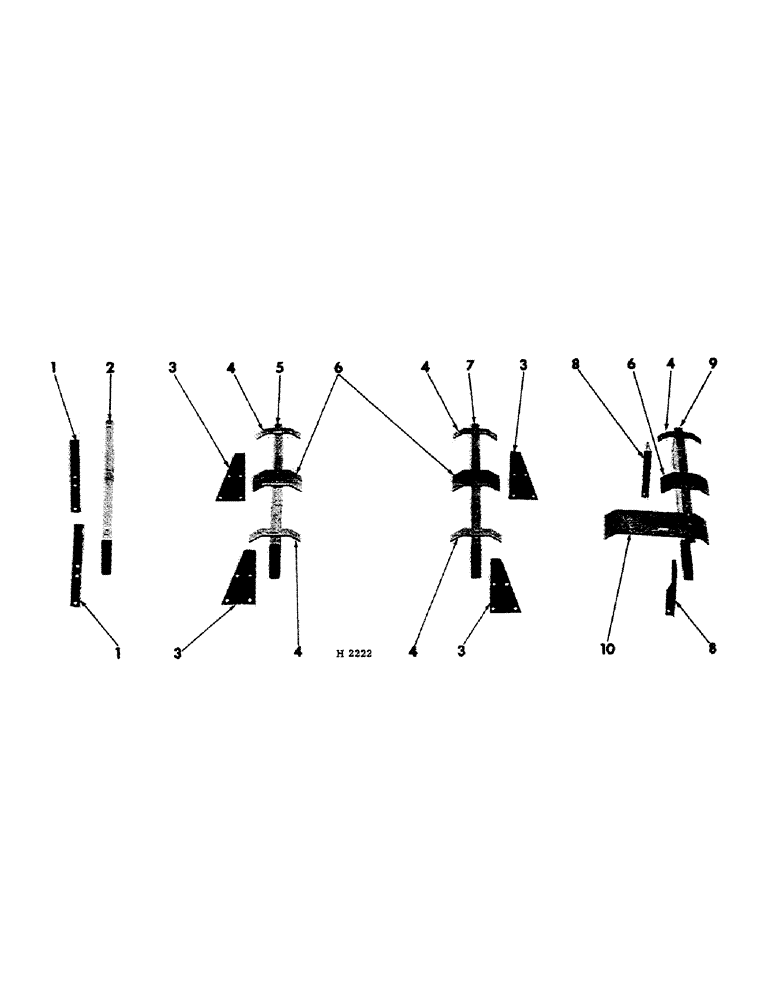

Запчасти Case IH 275 (L-03) - SPREADER BOX BOTTOM SUPPORTS

1

592833R1

SUPPORT, hitch front LH

1шт.

1

592834R1

SUPPORT, hitch front RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

w/Nut Hex, 1/2"-13 x 1", G5, Full Thd

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

2

592853R1

CHANNEL, bottom first cross

1шт.

17433R11

BOLT W/NUT, 1/2 x 1 cd-pltd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

592835R1

SUPPORT, hitch intermediate LH

2шт.

3

592836R1

SUPPORT

hitch intermediate RH

2шт.

17433R11

BOLT W/NUT, 1/2 x 1 cd-pltd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

4

592860R1

SUPPORT

apron chain raising outer

5шт.

19019R11

BOLT (SPREADER)

BOLT W/NUT, 3/8 x 1 no. 3 cd-pltd plow

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

5

590855R1

CHANNEL, bottom second cross

1шт.

17433R11

BOLT W/NUT, 1/2 x 1 cd-pltd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

592841R1

VALVE BLOCK

SECTION, apron raising center

3шт.

19019R11

BOLT (SPREADER)

BOLT W/NUT, 3/8 x 1 no. 3 cd-pltd plow

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

7

592856R1

CHANNEL, bottom third cross

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1 cd-pltd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

8

592837R1

SUPPORT, hitch rear LH

1шт.

8

592836R1

SUPPORT

hitch rear RH

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1 cd-pltd mach (2-RH, 4-RH)

1шт.

120384

WASHER,1/2"

LOCK, (2-LH, 4-RH) 1/2"

1шт.

9

592858R1

CHANNEL, bottom fourth cross

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1 cd-pltd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

10

592862R11

GUIDE

gear case chain raising

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1 no. 3 cd-pltd plow

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
