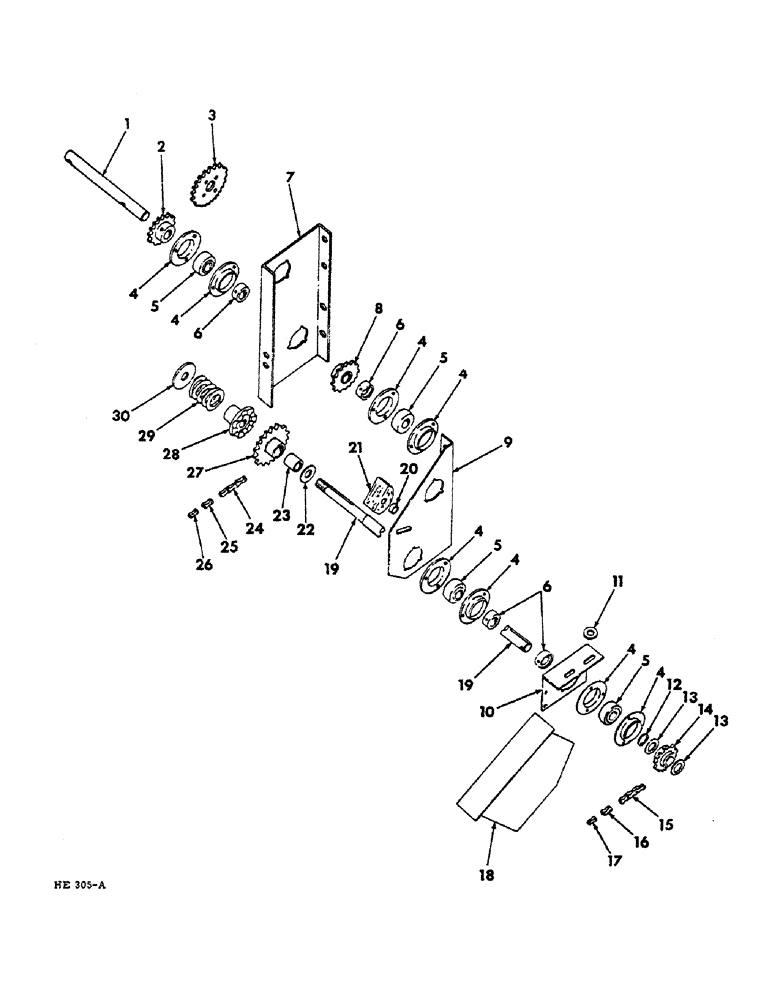

Запчасти Case IH 275 (L-38) - BUNK FEED MAIN DRIVE, (1970 AND SINCE)

1

594967R1

ROD

counter jackshaft

1шт.

2

451123R1

SPROCKET, 16T countershaft drive

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

3

593084R1

SPROCKET, 22T jackshaft front driven

1шт.

4

462360R1

FLANGED BEARING

RETAINER, bearing

8шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

5

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

extension drive shaft (for use w/455102R11, collar)

4шт.

5

BEARING, extension drive shaft (NSS) (16205-100 Fisher) (for service order 1, 455965R91, bearing and 1, 455102R11, collar)

4шт.

6

455102R11

COLLAR

drive shaft bearing locking (includes 102569, screw) (for use w/ 455965R91, bearing)

4шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

4шт.

6

607417R11

COLLAR

drive shaft bearing locking (LC-100 Fisher) (includes 1, 102569, screw) (for use w/16205-100 Fisher bearing)

4шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

4шт.

7

592966R1

CHANNEL, jackshaft front mounting

1шт.

8

594968R11

SPROCKET, 23 T jackshaft drive

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

9

820055C1

SUPPORT

counter jackshaft

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

820078C1

SUPPORT, drive shaft rear

1шт.

11

21375R1

WASHER

17/32 x 1-1/4 x 7 ga support adjusting

1шт.

12

551855R1

WASHER

1-1/32 x 1-1/4 x 16 ga drive shaft rear bearing

1шт.

13

609836R1

WASHER

1-1/32 x 1-1/2 x 16 ga drive shaft

1шт.

14

820056C1

SPROCKET, 14 T drive shaft driven

1шт.

Q67

KEY,1/4" Sq x 1 1/8", Par

1/4 sq x 1-1/8"

1шт.

15

CHAIN, standard 5/8" pitch drive (for service order 1, 1791D 10 ft length of chain, reduce to 47 links and add 1, 1310D connecting link and 1, 1315D offset link)

1шт.

16

1310D

LINK

chain connecting

1шт.

17

1315D

LINK

chain offset

1шт.

18

820058C1

SHIELD

drive shaft

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

820077C1

SHAFT

conveyor drive

1шт.

495465R1

WASHER, 29/32 x 2-3/4 x 3/16"

1шт.

426767

NUT,7/8"-14, G5

7/8"

1шт.

425-1514

JAM NUT,Jam, 7/8"-14, G5

7/8" jam

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

20

302508R1

SPACER

tightener block

1шт.

21

585270R1

BLOCK

drive chain tightener

1шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3" crg

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22

619373R1

WASHER

29/32 x 2 x 3/16" front bearing

1шт.

23

606485R1

BUSHING, drive sprocket

1шт.

24

CHAIN, standard 1" pitch drive shaft clutch drive (for service order 1, 569088R91 10 ft length of chain, reduce to 25 links and add 1, 457113R91, connecting link and 1, 457114R91, offset link)

1шт.

25

457113R91

CHAIN LINK

LINK, chain connecting

1шт.

26

457114R91

CHAIN LINK

LINK, chain offset

1шт.

27

594975R11

SPROCKET ASSY, 13 T clutch drive (includes 1, 606485R1, bushing)

1шт.

28

606496R1

CLUTCH, drive shaft

1шт.

Q20

KEY,1/4" Sq x 2 1/8", Par

1/4" sq x 2-1/8"

1шт.

29

619034R1

SPRING

drive shaft clutch

1шт.

30

495965R1

WASHER, 29/32 x 2-3/4 x 3/16" clutch spring retaining

1шт.
