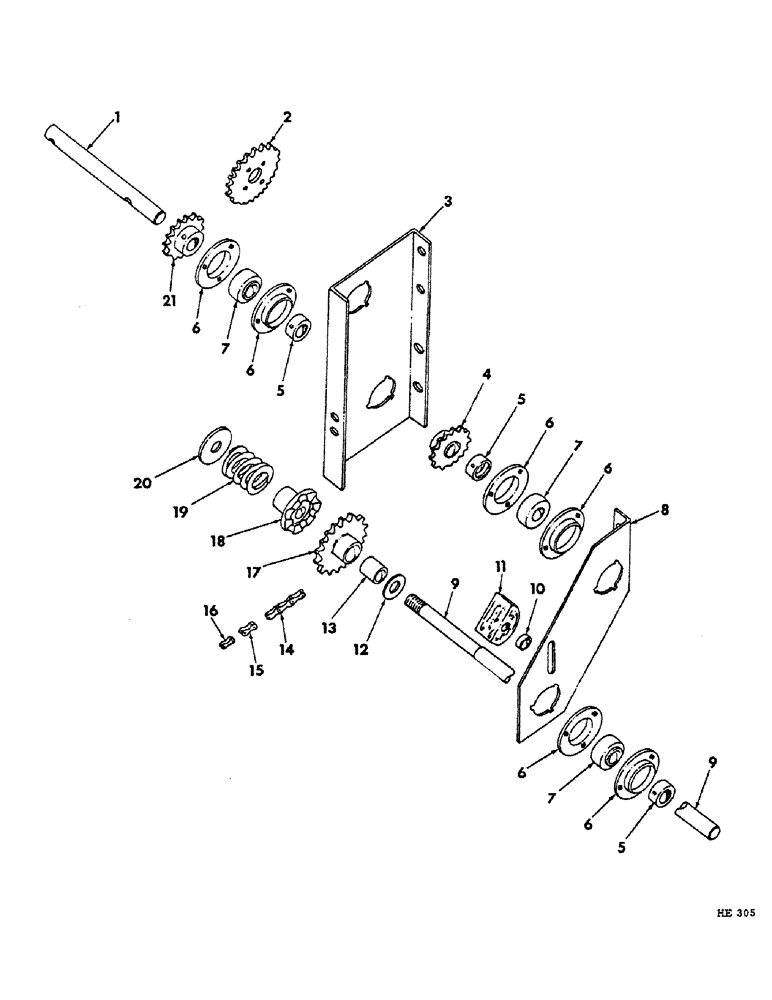

Запчасти Case IH 275 (L-36) - BUNK FEED PIVOT SHAFT DRIVE, (PRIOR 1970)

1

594967R1

ROD

counter jackshaft

1шт.

2

593084R1

SPROCKET, 22T jackshaft front driven

1шт.

3

592966R1

CHANNEL, jackshaft front mounting

1шт.

4

594968R11

SPROCKET, 23T countershaft driven

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

5

455102R11

COLLAR

countershaft and pivot shaft bearing locking (includes 102569, screw) (for use w/455965R91, bearing)

3шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

3шт.

5

607417R11

COLLAR

countershaft and pivot shaft bearing locking (LC-100 Fisher) (includes 1, 102569, screw) (for use w/16205-100 Fisher bearing)

3шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

3шт.

6

462360R1

FLANGED BEARING

RETAINER, countershaft and pivot shaft bearing

6шт.

19576R1

BOLT,Short NK, 5/16"-18 x 7/8", G2, Full Thd

5/16 x 7/8" crg

9шт.

120376

NUT,5/16"-18, G5

9шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

7

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

countershaft and pivot shaft (for use w/455102R11, collar)

3шт.

7

BEARING, countershaft and pivot shaft (NSS) (16205-100 Fisher) (for service order 1, 455965R91, bearing and 1, 455102R11, collar)

3шт.

8

594966R1

SECTION, pivot shaft mounting support

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

594970R1

SHAFT, bunk feed pivot

1шт.

427767

NUT, 7/8"-NF

1шт.

NLS

NO LONGER SERVICED

7/8"-NF jam

1шт.

10

302508R1

SPACER

tightener block

1шт.

11

585270R1

BLOCK

drive chain tightener

1шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3"

1шт.

20601R1

WASHER

BOLT, 17/32 x 1-1/4 x 11 ga

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

12

619373R1

WASHER

29/32 x 2 x 3/16" drive sprocket and bearing

1шт.

13

606485R1

BUSHING, drive clutch sprocket

1шт.

14

CHAIN, standard 1" pitch (for service order 1, 569088R91, 10 ft chain, reduce to 37 links and add 2, 457114R91, offset links and 1, 457113R91, connecting link)

1шт.

15

457113R91

CHAIN LINK

LINK, connecting

1шт.

16

457114R91

CHAIN LINK

LINK, offset

2шт.

17

594975R11

SPROCKET W/BUSHING, 13T clutch drive

1шт.

18

606496R1

CLUTCH, pivot shaft

1шт.

Q20

KEY,1/4" Sq x 2 1/8", Par

1/4 sq x 2-1/8" STR

1шт.

19

619034R1

SPRING

pivot shaft clutch

1шт.

20

495965R1

WASHER, 20/32 x 2-3/4 x 3/16" clutch spring retaining

1шт.

21

451123R1

SPROCKET, 16T countershaft drive

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.
