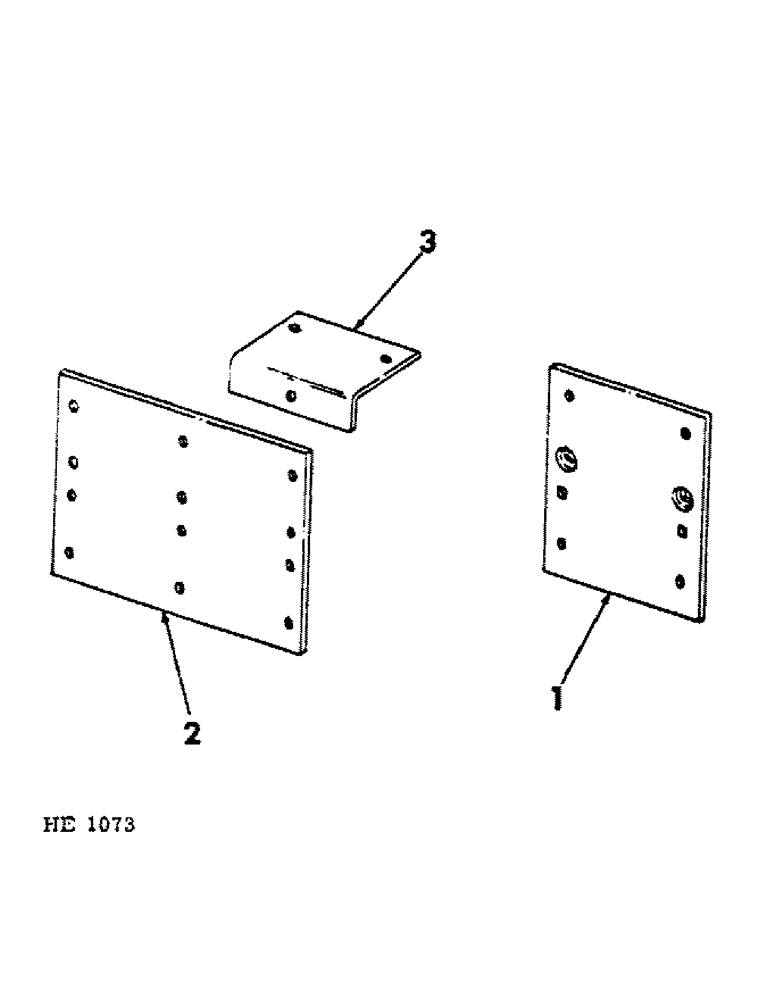

Запчасти Case IH 275 (L-35) - RAISING PLATES, (FOR BUNK FEED ON 275 SPREADERS), (1970 AND SINCE)

1

820083C1

PLATE, inner

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

8шт.

19097R1

BOLT, 3/4 x 2-1/4" No. 3 type 1 plow

8шт.

280954

NUT,3/4"-10, G5

16шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

16шт.

2

820084C1

PLATE, outer

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

10шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2"

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

22шт.

120384

WASHER,1/2"

LOCK, 1/2"

22шт.

3

820086C1

ANGLE, apron raising support

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
