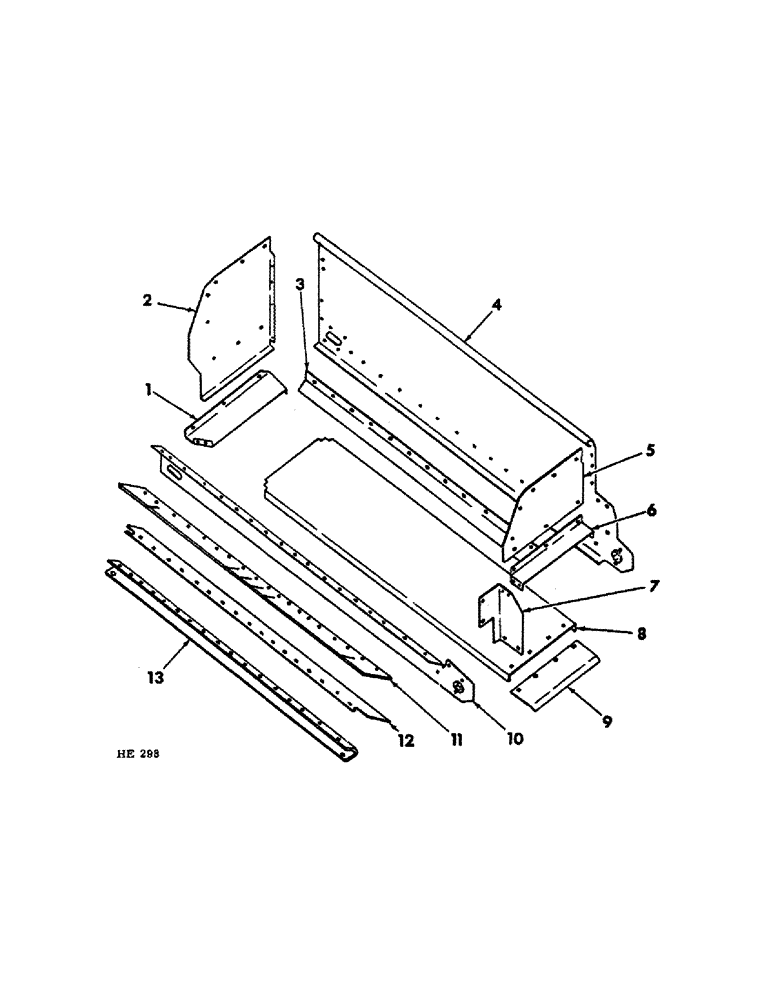

Запчасти Case IH 275 (L-33) - BUNK FEED BOX, (PRIOR 1970)

1

594952R1

SECTION, box end section deflector RH

1шт.

19574R11

BOLT

W/NUT, 3/8 x 5/8" cd-pltd

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

2

594942R1

SECTION, feed box end RH

1шт.

19574R11

BOLT

W/NUT, 3/8 x 5/8" cd-pltd

3шт.

18778R11

BOLT

W/NUT, 3/8 x 3/4" cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

3

594951R1

SECTION, rear side deflector

1шт.

19574R11

BOLT

W/NUT, 3/8 x 5/8" cd-pltd

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

4

594947R11

SIDE, feed box rear

1шт.

19574R11

BOLT

W/NUT, 3/8 x 5/8" cd-pltd

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

5

594941R1

SECTION, feed box end LH

1шт.

19574R11

BOLT

W/NUT, 3/8 x 5/8" cd-pltd

3шт.

18778R11

BOLT

W/NUT, 3/8 x 3/4" cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

6

594950R1

FILLER, feed box opening

1шт.

19574R11

BOLT

W/NUT, 3/8 x 5/8" cd-pltd

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

7

594949R1

SUPPORT, front side

1шт.

17452R11

BOLT W/NUT, 1/2 x 1-1/4" cd-pltd

2шт.

18778R11

BOLT

W/NUT, 3/8 x 3/4" cd-pltd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

594953R1

SECTION, feed box bottom

1шт.

19574R11

BOLT

W/NUT, 3/8 x 5/8" cd-pltd

22шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

22шт.

9

594954R1

SECTION, pivot shaft deflector

1шт.

18673R11

BOLT

W/NUT, 5/16 x 1/2" cd-pltd crg

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

594946R11

SIDE, feed box front

1шт.

19574R11

BOLT

W/NUT, 3/8 x 5/8" cd-pltd

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

11

594944R1

COVER, feed box bottom

1шт.

18494R11

SCREW

BOLT W/NUT, 3/8 x 1" cd-pltd

11шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

11шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

11шт.

12

594945R1

SECTION, front side support

1шт.

13

594943R1

SUPPORT, bottom cover

1шт.

17433R11

BOLT W/NUT, 1/2 x 1" cd-pltd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
