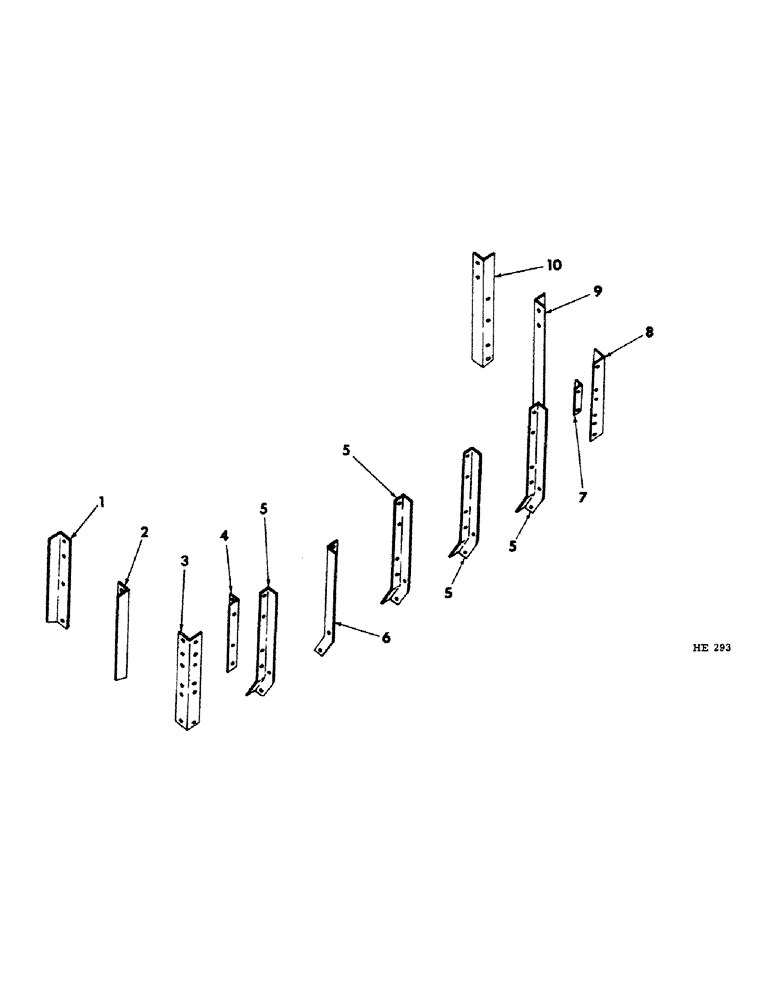

Запчасти Case IH 275 (L-32) - FORAGE BOX UPPER EXTENSION

1

594926R1

ANGLE, rear side support LH

1шт.

18780R11

BOLT (SPREADER)

BOLT, 3/8 x 1-3/4" cd-pltd w/NUT

1шт.

18685R11

BOLT

3/8 x 1-1/2" cd-pltd w/NUT

8шт.

17142R11

BOLT

3/8 x 3-1/2" cd-pltd w/NUT

7шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

9шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2" cd-pltd w/NUT

1шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga cd-pltd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

17шт.

2

594927R1

ANGLE, rear side support RH

1шт.

18780R11

BOLT (SPREADER)

BOLT, 3/8 x 1-3/4" cd-pltd w/NUT

1шт.

18685R11

BOLT

3/8 x 1-1/2" cd-pltd crg w/NUT

8шт.

17142R11

BOLT

3/8 x 3-1/2" cd-pltd crg w/NUT

7шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

9шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2" cd-pltd w/NUT

1шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga cd-pltd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

17шт.

3

594925R1

ANGLE, rear side corner RH

1шт.

3

594924R1

ANGLE, rear side corner LH

1шт.

18685R11

BOLT

3/8 x 1-1/2" cd-pltd crg w/NUT

20шт.

17142R11

BOLT

3/8 x 3-1/2" cd-pltd crg w/NUT

4шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

4

594917R1

ANGLE, baffle board mounting RH (applicable when equipped w/bunk feed)

1шт.

4

594916R1

ANGLE, baffle board mounting LH (applicable when equipped w/bunk feed)

1шт.

18779R11

BOLT

3/8 x 1-1/2" cd-pltd w/NUT

6шт.

18784R11

BOLT

3/8 x 2-3/4" C-Z w/NUT

10шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga cd-pltd

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

5

594915R1

SUPPORT, upper extension side RH

4шт.

5

594914R1

SUPPORT, upper extension side LH

4шт.

19573R11

BOLT

3/8 x 7/8" cd-pltd w/NUT

8шт.

18794R11

BOLT (SPREADER)

BOLT, 7/16 x 1" cd-pltd w/NUT

6шт.

18685R11

BOLT

3/8 x 1-1/2" cd-pltd crg w/NUT

16шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

6

594914R1

SUPPORT, upper extension side RH

1шт.

6

594915R1

SUPPORT, upper extension side LH

1шт.

19573R11

BOLT

3/8 x 7/8" cd-pltd

2шт.

18685R11

BOLT

3/8 x 1-1/2" cd-pltd crg w/NUT

4шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

7

594921R1

ANGLE, front side corner tie right

1шт.

7

594920R1

ANGLE, front side corner tie left

1шт.

18780R11

BOLT (SPREADER)

BOLT, 3/8 x 1-3/4" cd-pltd w/NUT

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

8

594919R1

ANGLE

front side corner RH

1шт.

8

594918R1

ANGLE, front side corner LH

1шт.

18685R11

BOLT

3/8 x 1-1/2" cd-pltd crg w/NUT

14шт.

21314R1

WASHER, 13/32 sq x 1 x 16 C-Z

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

9

594923R1

ANGLE, front side support RH

1шт.

19573R11

BOLT

3/8 x 7/8" cd-pltd w/NUT

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2" cd-pltd crg w/NUT

3шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

10

594922R1

ANGLE, front side support LH

1шт.

19573R11

BOLT

3/8 x 7/8" cd-pltd

2шт.

18685R11

BOLT

3/8 x 1-1/2" cd-pltd crg w/NUT

3шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.
