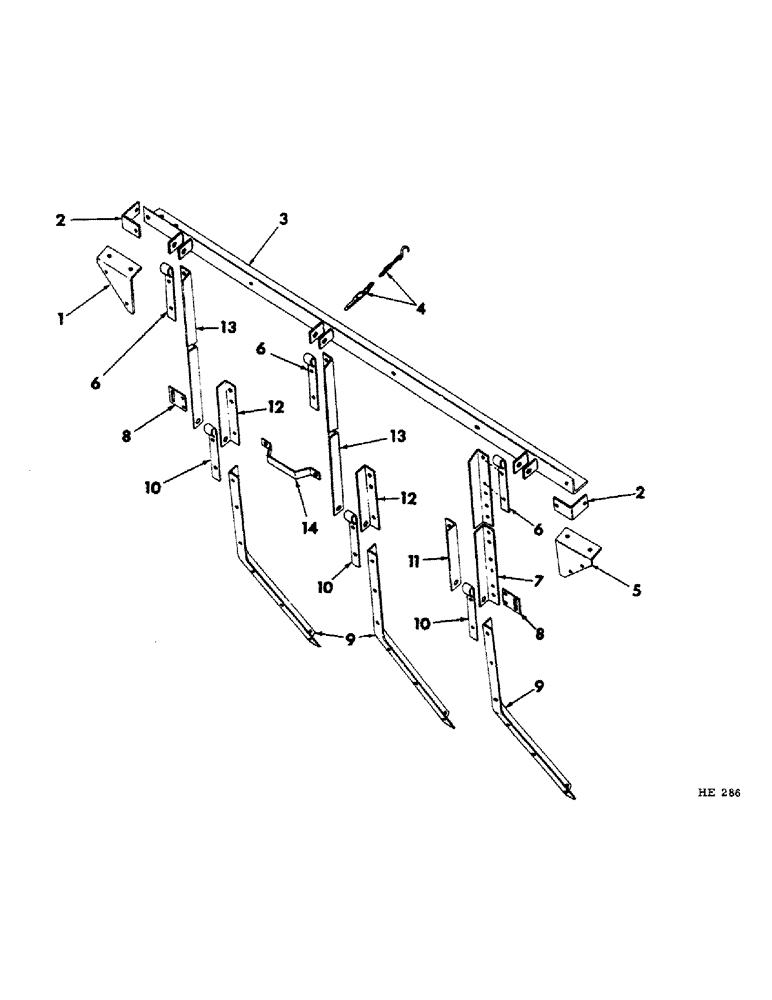

Запчасти Case IH 275 (L-30) - UPPER AND LOWER REAR ENDGATES

1

594911R1

SUPPORT, rear endgate pivot LH

1шт.

18494R11

SCREW

BOLT, 3/8 x 1" cd-pltd w/NUT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

594910R1

ANGLE

pivot support corner tie

2шт.

19573R11

BOLT

3/8 x 7/8" cd-pltd w/NUT

2шт.

18687R11

BOLT

3/8 x 2-3/4" cd-pltd crg w/NUT

2шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

594902R11

SUPPORT, rear endgate

1шт.

18494R11

SCREW

BOLT, 3/8 x 1" cd-pltd w/NUT

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

594938R91

CHAIN (AG)

CHAIN, lower rear endgate holding

1шт.

5

594912R1

SUPPORT, rear endgate pivot RH

1шт.

18494R11

SCREW

BOLT, 3/8 x 1" cd-pltd w/NUT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

594906R1

HINGE

upper rear endgate

3шт.

18422R11

BOLT

3/8 x 1-3/4" cd-pltd crg w/NUT

6шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

K156

HEADED PIN,5/8" x 2 1/8"

PIN, 5/8 x 2-1/8" std-hd -dld

3шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

3шт.

7

594905R1

ANGLE

rear endgate support RH

1шт.

18685R11

BOLT

3/8 x 1-1/2" cd-pltd crg w/NUT

9шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

8

594908R1

STRIP

rear endgate door latch

2шт.

18422R11

BOLT

3/8 x 1-3/4" cd-pltd crg w/NUT

4шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

594935R1

SUPPORT, lower rear endgate

3шт.

18779R11

BOLT

3/8 x 1-1/2" cd-pltd w/NUT

15шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga cd-pltd

15шт.

10

594906R1

HINGE

lower rear endgate

3шт.

18780R11

BOLT (SPREADER)

BOLT, 3/8 x 1-3/4" cd-pltd crg w/NUT

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

K156

HEADED PIN,5/8" x 2 1/8"

PIN, 5/8 x 2-1/8" std-hd-dld

3шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

3шт.

11

594934R1

ANGLE, lower rear endgate pivot RH

1шт.

18685R11

BOLT

3/8 x 1-1/2" cd-pltd crg w/NUT

3шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

12

594933R1

ANGLE, lower rear endgate pivot LH

2шт.

18685R11

BOLT

3/8 x 1-1/2" cd-pltd crg w/NUT

6шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

13

594904R1

ANGLE, rear endgate support LH

2шт.

18685R11

BOLT

3/8 x 1-1/2" cd-pltd crg w/NUT

20шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

20шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

14

591841R1

STRIP

rear endgate handle

1шт.

16888R11

BOLT

5/16 x 1-1/4" cd-pltd crg w/NUT

2шт.

20744R1

WASHER, 11/32 sq x 7/8 x 16 ga cd-pltd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
