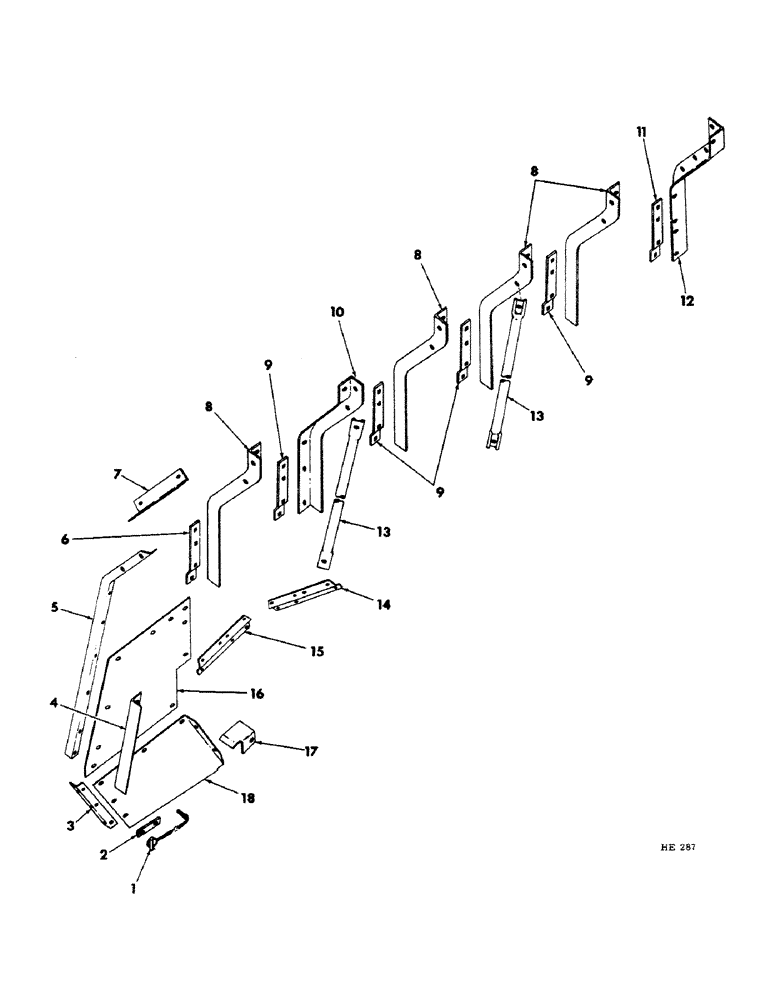

Запчасти Case IH 275 (L-28) - FORAGE BOX SIDE SUPPORTS

1

375893R91

AXLE PIN

PIN & CHAIN ASSEMBLY, endgate door latch

2шт.

2

594909R1

BAR

engine door latch

2шт.

18494R11

SCREW

BOLT, 3/8 x 1" cd-pltd w/NUT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

594932R11

ANGLE, lower rear engine stop

2шт.

18778R11

BOLT

3/8 x 3/4" cd-pltd w/NUT

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

594931R1

ANGLE

outer support section stiffener

2шт.

18778R11

BOLT

3/8 x 3/4" cd-pltd w/NUT

4шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga cd-pltd

2шт.

19573R11

BOLT

3/8 x 7/8" cd-pltd w/NUT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

5

594894R1

SUPPORT, rear stop RH

1шт.

5

594893R1

SUPPORT, rear stop LH

1шт.

18779R11

BOLT

3/8 x 1-1/2" cd-pltd w/NUT

14шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga cd-pltd

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

6

594891R1

BRACE, rear side support (not applicable when equipped w/upper beater)

2шт.

18479R11

BOLT, 3/8 x 2" cd-pltd crg w/NUT

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga cd-pltd

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

7

594907R1

ANGLE, lower baffle board mounting (applicable when equipped w/bunk feed)

2шт.

18779R11

BOLT

3/8 x 1-1/2" cd-pltd w/NUT

4шт.

18784R11

BOLT

3/8 x 2-3/4" C-Z w/NUT

4шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga cd-pltd

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

8

594890R1

SUPPORT, forage box side RH

4шт.

8

594889R1

SUPPORT, forage box side LH

4шт.

18685R11

BOLT

3/8 x 1-1/2" cd-pltd crg w/NUT

32шт.

18687R11

BOLT

3/8 x 2-3/4" cd-pltd crg w/NUT

8шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

40шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

40шт.

9

594891R1

BRACE, side support

8шт.

18479R11

BOLT, 3/8 x 2" cd-pltd crg w/NUT

24шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga cd-pltd

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

10

594889R1

SUPPORT, forage box side RH

1шт.

10

594890R1

SUPPORT, forage box side LH

1шт.

18685R11

BOLT

3/8 x 1-1/2" cd-pltd crg w/NUT

8шт.

18687R11

BOLT

3/8 x 2-3/4" cd-pltd crg w/NUT

2шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

11

594891R1

BRACE, front side corner support

2шт.

18422R11

BOLT

3/8 x 1-3/4" cd-pltd crg w/NUT

6шт.

18479R11

BOLT, 3/8 x 2" cd-pltd crg w/NUT

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

12

594899R1

SUPPORT, front side corner RH

1шт.

12

594898R1

SUPPORT, front side corner LH

1шт.

18685R11

BOLT

3/8 x 1-1/2" cd-pltd crg w/NUT

26шт.

18687R11

BOLT

3/8 x 2-3/4" cd-pltd crg w/NUT

2шт.

21314R1

WASHER, 13/32 sq x 1 x 16 ga C-Z

28шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

28шт.

13

594892R1

BRACE, side support pipe

4шт.

18794R11

BOLT (SPREADER)

BOLT, 7/16 x 1" cd-pltd w/NUT

4шт.

18795R11

BOLT

7/16 x 1-1/4" cd-pltd w/NUT

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

14

594897R1

SECTION, side board front RH (applicable when equipped w/upper beater)

1шт.

14

594896R1

SECTION, side board front LH (applicable when equipped w/upper beater)

1шт.

18778R11

BOLT

3/8 x 3/4" cd-pltd w/NUT

6шт.

18779R11

BOLT

3/8 x 1-1/2" cd-pltd w/NUT

4шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga cd-pltd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

15

594896R1

SECTION, side board rear RH (applicable when equipped w/upper beater)

1шт.

15

594897R1

SECTION, side board rear LH (applicable when equipped w/upper beater)

1шт.

18778R11

BOLT

3/8 x 3/4" cd-pltd w/NUT

4шт.

18779R11

BOLT

3/8 x 1-1/2" cd-pltd w/NUT

6шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga cd-pltd

4шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4" cd-pltd w/NUT

4шт.

142619H

WASHER

13/32 x 3/4 x 11 ga cd-pltd

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

16

594895R1

SECTION, rear side

2шт.

18778R11

BOLT

3/8 x 3" cd-pltd w/NUT

4шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1" cd-pltd w/NUT

2шт.

18779R11

BOLT

3/8 x 1-1/2" cd-pltd w/NUT

8шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga cd-pltd

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

17

594937R1

GUIDE

lower rear endgate RH

1шт.

17

594936R1

GUIDE, lower rear endgate LH

1шт.

17433R11

BOLT, 1/2 x 1" cd-pltd w/NUT

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

18

594930R1

SECTION, lower rear endgate outer support RH

1шт.

18

594929R1

SECTION, lower rear endgate outer support LH

1шт.

19574R11

BOLT

3/8 x 5/8" cd-pltd w/NUT

2шт.

18778R11

BOLT

3/8 x 3/4" cd-pltd w/NUT

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.
