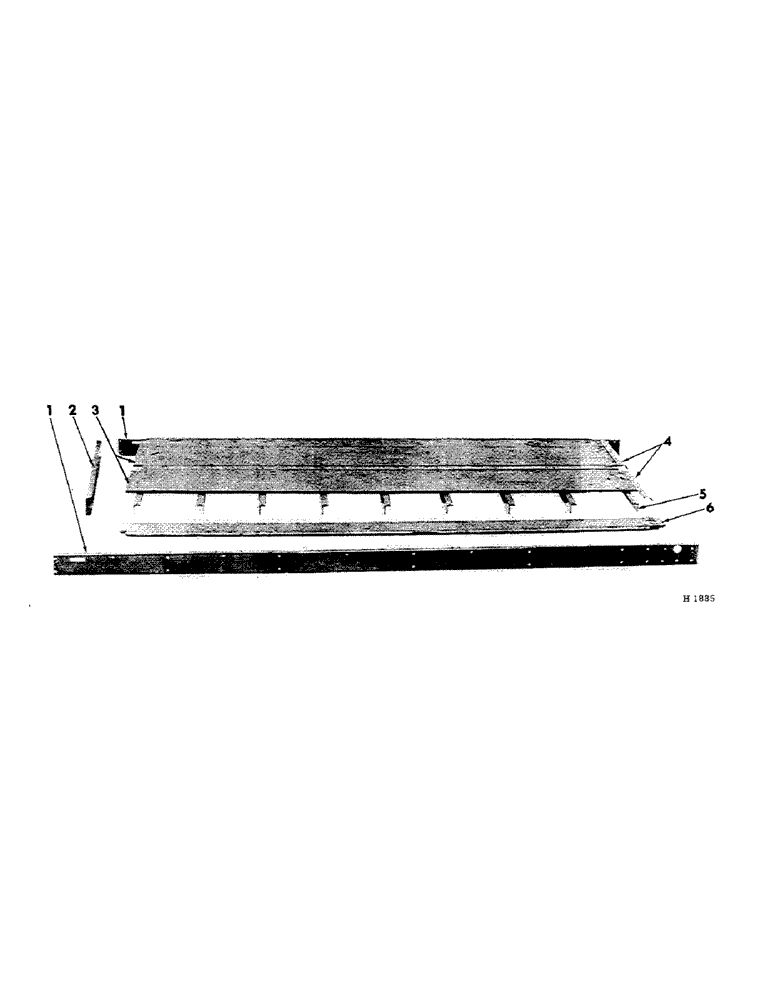

Запчасти Case IH 275 (L-02) - SPREADER BOX BOTTOM, PRODUCT GRAPHICS

1

592866R1

CHANNEL, bottom side LH

1шт.

1

592867R1

CHANNEL, bottom side RH

1шт.

2

592894R1

CHANNEL, box front

1шт.

3

592875R1

BOARD, bottom center

1шт.

19433R1

BOLT W/NUT, 3/8 x 1-1/2, cd-pltd crg

40шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

40шт.

4

592877R1

SHIELD, bottom board LH

1шт.

4

592878R1

SHIELD, bottom board RH

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT W/NUT, 5/16 x 1-1/4 cd-pltd crg

10шт.

134238R1

WASHER

WASH, 11/32 x 1 x 16 ga cd-pltd

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

5

592870R1

ANGLE, board support

8шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT W/NUT, 1/2 x 1-1/4 cd-pltd crg

14шт.

120384

WASHER,1/2"

LOCK, 1/2"

14шт.

6

592871R1

BOARD, bottom outer LH

1шт.

6

592872R1

BOARD, bottom outer RH

1шт.

19433R1

BOLT W/NUT, 3/8 x 1-1/2 cd-pltd crg

26шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

26шт.

593056R91

PACKAGE, product graphic service (composed of all product graphic listed below)

1шт.

2750502R1

PRODUCT GRAPHIC

LH

1шт.

2751050R1

PRODUCT GRAPHIC

McCormick International

2шт.

PRODUCT GRAPHIC, be careful, (NSS), (order pkg 1-593056R91)

1шт.

PRODUCT GRAPHIC, important, PTO operating speeds, (NSS), (order pkg 1-593056R91)

1шт.

PRODUCT GRAPHIC, lubrication apron, (NSS), (order pkg, 1-593056R91)

1шт.

PRODUCT GRAPHIC, made in China, (NSS), (order pkg, 1-593056R91)

2шт.

PRODUCT GRAPHIC, 275 name, (NSS), (order pkg 1-593056R91)

2шт.
