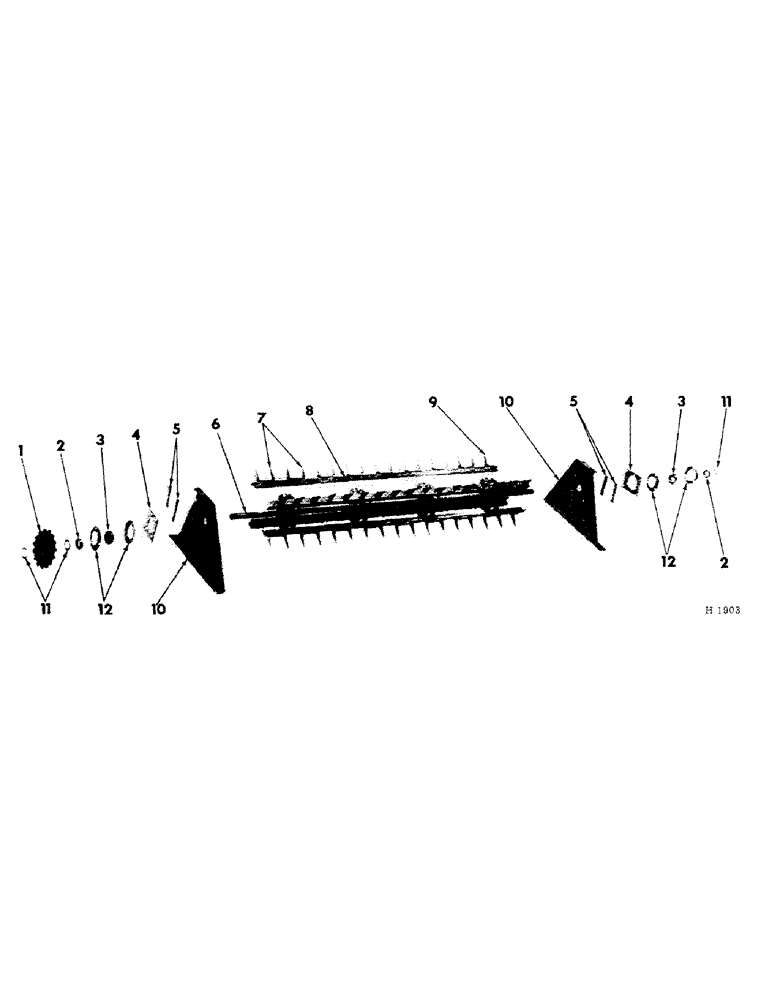

Запчасти Case IH 275 (L-26) - UPPER BEATER

1

593078R1

SPROCKET ASSY.

SPROCKET, 15T upper beater drive

1шт.

586879R1

KEY

5/16 x 5/16 x 2" straight

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga cd-pltd

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

2

517645R11

COLLAR

brg locking (includes 102592, SCREW) (Fafnir or new departure for use w/571588R91, BRG)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

2

619997R11

COLLAR

brg locking (includes 102592, SCREW) (SKF w/619996R91, BRG)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

3

571588R91

BALL BEARING

BEARING, upper beater (Fafnir or new departure w/517645R11, COLLAR)

2шт.

3

619996R91

BEARING

upper beater (SKF w/619997R11, COLLAR)

2шт.

4

593076R1

STRIP

brg bracket

2шт.

19431R1

BOLT

3/8 x 1-1/8" cd-pltd crg w/NUT

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

5

593077R1

BAR

brg bracket filler

4шт.

19431R11

BOLT, 3/8 x 1-1/8" cd-pltd crg w/NUT

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

6

593063R11

SHAFT

upper beater

1шт.

609085R1

WASHER, 1-13/32 x 2 x 16 ga cd-pltd

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

7

593073R1

TOOTH

beater double

32шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1" truss-rd

64шт.

8

593065R91

BEATER, No. 1 (includes 106916, RIVETS & 593073R1 & 593074R1, TEETH)

1шт.

8

593066R91

BEATER, No. 2 (includes 106916, RIVETS & 593073R1 & 593074R1, TEETH)

1шт.

8

593067R91

BEATER, No. 3 (includes 106916, RIVETS & 593073R1 & 593075R1, TEETH)

1шт.

8

593068R91

BEATER, No. 4 (includes 106916, RIVETS & 593073R1 & 593075R1, TEETH)

1шт.

19431R11

BOLT, 3/8 x 1" type 2 cd-pltd w/NUT

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

9

593074R1

TOOTH

beater single LH

2шт.

9

593075R1

TOOTH

beater single RH

2шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1" truss-hd

8шт.

10

593062R1

VALVE BLOCK

SECTION, upper beater mounting

2шт.

19573R11

BOLT

3/8 x 7/8" cd-pltd mach w/NUT

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

11

608085R1

WASHER

1-13/32 x 2 x 16 ga cd-pltd

1шт.

12

617863R1

FLANGED BEARING

TTE, shaft brg

4шт.

19427R11

BOLT

3/8 x 7/8" cd-pltd crg w/NUT

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.
