Запчасти Case IH 275 (L-24) - WIDESPREAD BEATER

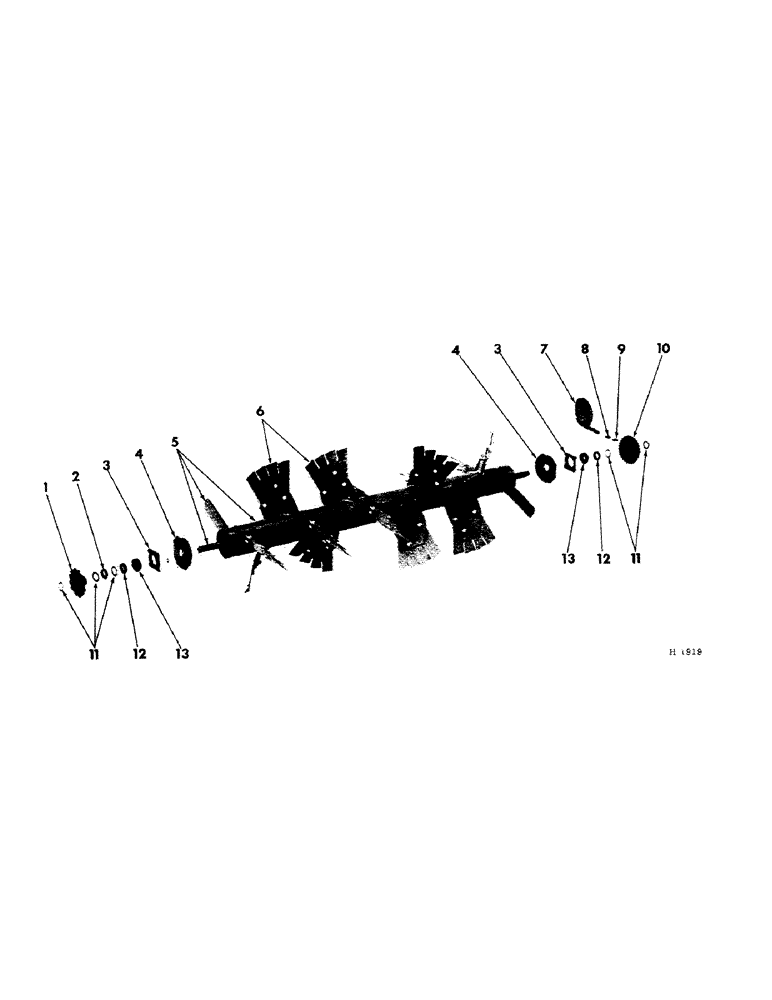

Схема запчастей Case IH 275 - (L-24) - WIDESPREAD BEATER

Артикул

Название

Примечание

Количество

1

593080R1

SPROCKET ASSY.

SPROCKET, 12T upper beater drive

1шт.

586879R1

KEY

5/16 x 5/16 x 2" straight

1шт.

551769R1

WASHER

1-13/32 x 2 x 16 ga (as req'd)

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

2

615671R1

SPACER, sprocket & brg RH

1шт.

3

612018R1

HOUSING

RETAINER, widespread brg

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2" cd-pltd mach

8шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

4

593032R91

PROTECTOR, widespread beater

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2" cd-pltd mach

8шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

5

593025R91

BEATER, widespread

1шт.

551769R1

WASHER

1-13/32 x 2 x 16 ga

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

6

609309R2

ASSEMBLY

SECTION, widespread claw LH

7шт.

6

609310R2

ASSEMBLY

SECTION, widespread claw RH

7шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x1-1/4" type 2 cd-pltd

42шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

42шт.

120384

WASHER,1/2"

LOCK, 1/2"

42шт.

7

CHAIN, widespread beater drive 3/4" pitch standard (order 1-611362R91, 10 ft chain, reduce to 1005 links, add 2-612612R91, offset links & 1-611361R91 connecting link)

1шт.

8

612612R91

CHAIN LINK

LINK, drive chain offset

2шт.

9

611361R91

DRAG LINK

LINK, drive chain connecting

1шт.

10

593035R91

SPROCKET, 29T beater drive

1шт.

13611A

KEY,5/16" Sq x 2 1/2", Par

5/16 x 5/16 x 2-1/2" straight

1шт.

551769R1

WASHER

1-13/32 x 2 x 16 ga

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

11

551769R1

WASHER

1-13/32 x 2 x 16 ga

1шт.

12

517645R11

COLLAR

brg locking (includes 102592, screw) (Fafnir or New Departure, use w/571588R91, bearing)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt

2шт.

13

571588R91

BALL BEARING

BEARING, widespread beater (Fafnir or New Departure for use w/517645R11, collar)

2шт.

Выбрано товаров: 32
