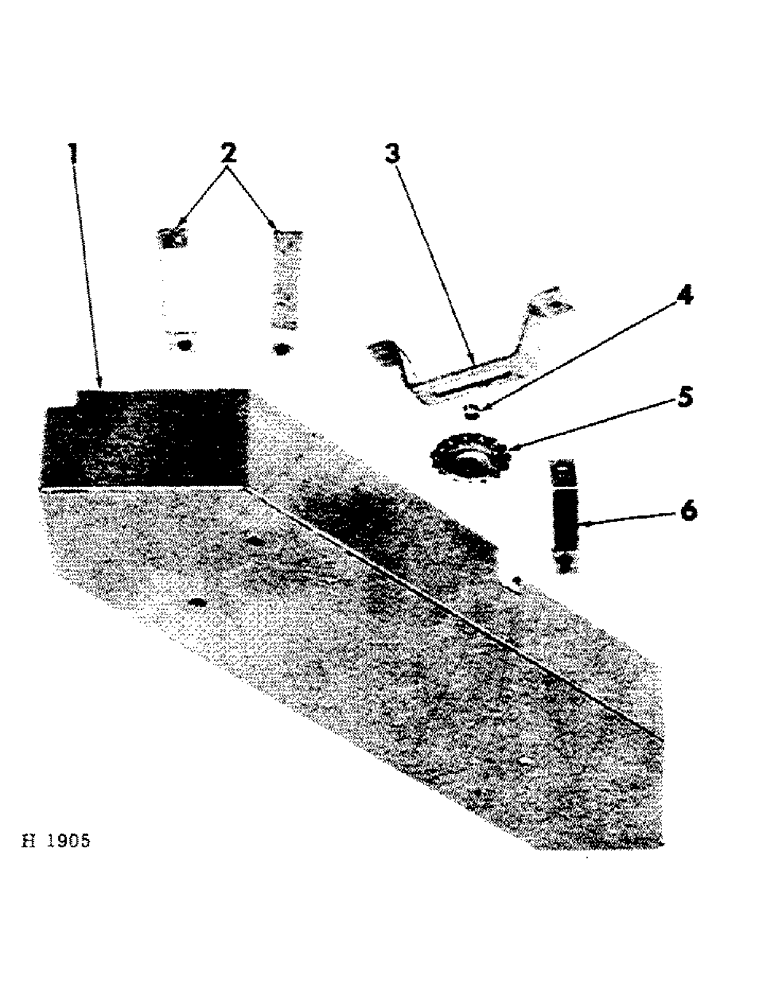

Запчасти Case IH 275 (L-23) - WIDESPREAD DRIVE SHIELD

1

593019R91

SHIELD, beater drive chain

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

126032

WING NUT,3/8"-16

NUT, 3/8" cd-pltd wing

3шт.

2

593023R11

BRACKET

shield upper

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

126032

WING NUT,3/8"-16

NUT, 3/8" cd-pltd wing

2шт.

19427R11

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

3

593018R1

SUPPORT

beater chain tightener

1шт.

17351R11

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

590750R1

SPACER

tightener sprocket

1шт.

5

582389R91

DRIVE SPROCKET

SPROCKET, 15T chain tightener

1шт.

18722R11

BOLT (SPREADER)

BOLT W/NUT, 5/8 x 2-1/2" cd-pltd crg

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga (as req'd)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

593024R11

BRACKET, shield lower

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8" cd-pltd wing

1шт.

17452R11

BOLT W/NUT, 1/2 x 1-1/4" cd-pltd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
