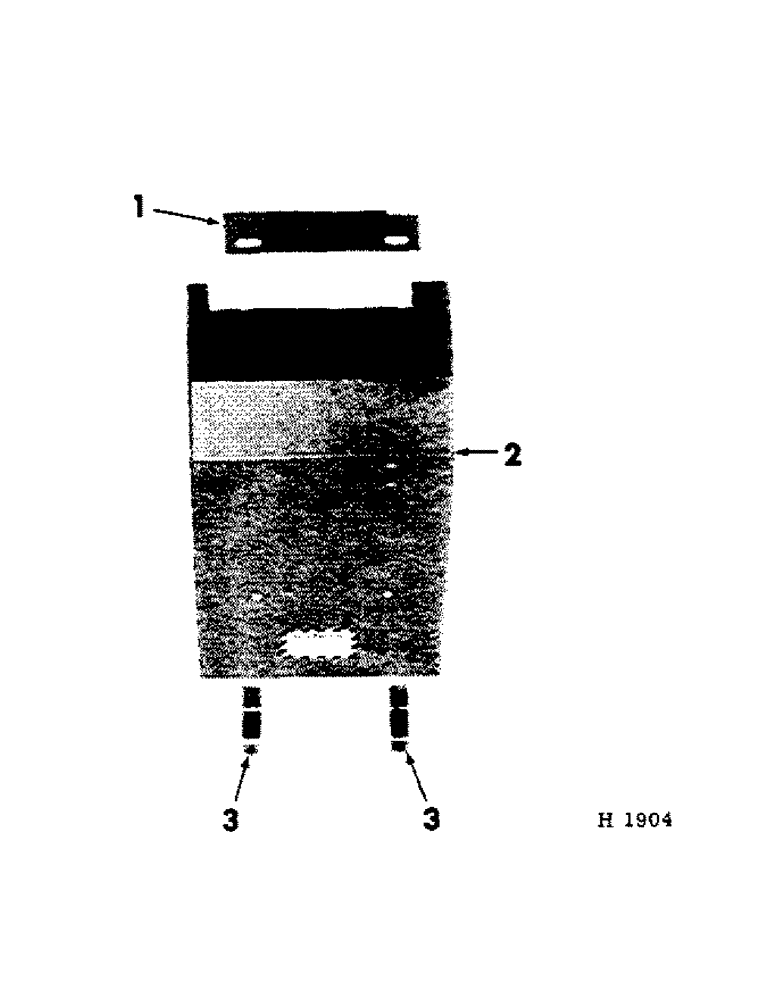

Запчасти Case IH 275 (L-21) - JACKSHAFT AND GEAR CASE SHIELD
№
Артикул
Название
Примечание
Количество
1
592975R1
ANGLE, shield support
1шт.
18684R11
BOLT
w/NUT, 3/8 x 1-1/4" cd-pltd crg
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
2
592977R91
SHIELD, jackshaft drive
1шт.
619856R1
WASHER
13/32 x 1 x 16 ga cd-pltd
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
126032
WING NUT,3/8"-16
NUT, 3/8" cd-pltd wing
2шт.
3
592976R11
BRACKET, drive shield
2шт.
18494R11
SCREW
BOLT w/NUT, 3/8 x 1" cd-pltd mach
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
126032
WING NUT,3/8"-16
NUT, 3/8" cd-pltd wing
2шт.
619856R1
WASHER
13/32 x 1 x 16 ga cd-pltd
2шт.
Выбрано товаров: 12
