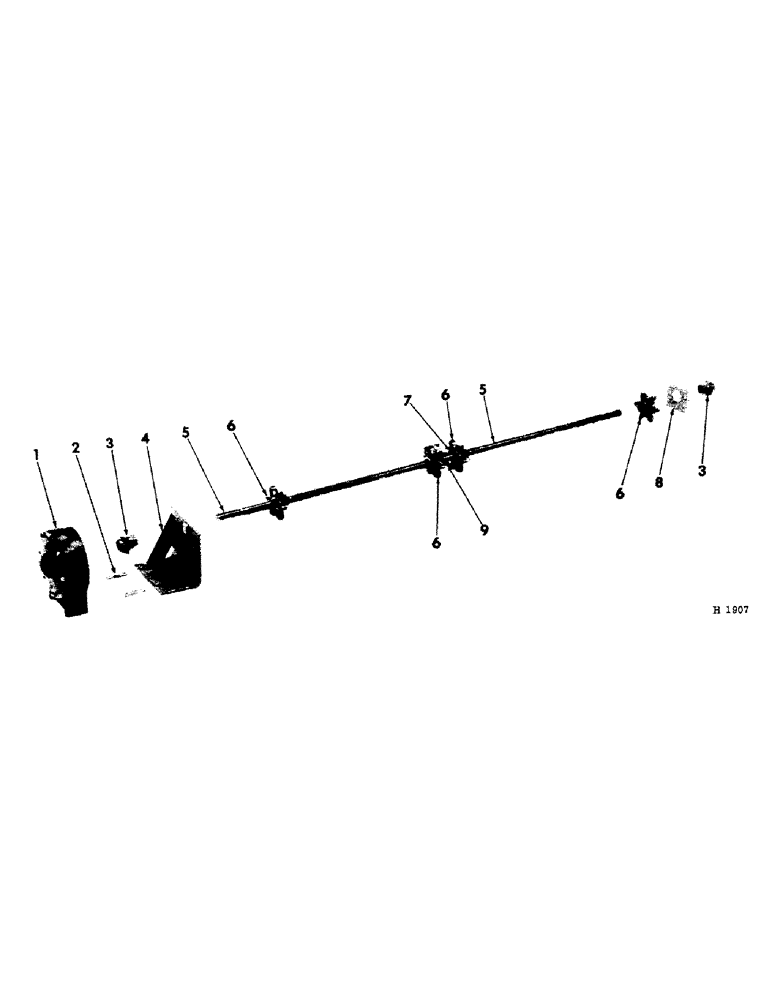

Запчасти Case IH 275 (L-17) - REAR APRON SHAFT

1

592984R91

CASE, apron shaft gear reducer (for component parts refer to "Worm Gear Reducer Case")

1шт.

592985R1

SHIM

gear case

1шт.

17423R1

BOLT, 1/2 x 7/8" cd-pltd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

592985R1

SHIM

gear case

1шт.

3

592987R1

BEARING ASSY,1.381" ID x 2.13" OD x 3"

rear shaft outer

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (In left outer bearing) 1/8"-27 x .66 lg

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-90" lub (in right outer brg)

1шт.

108657

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

2шт.

4

592981R11

SUPPORT

reducer gear case

1шт.

17442R11

BOLT W/NUT, 1/2 x 1-1/8" cd-pltd mach

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

5

592989R1

SHAFT

rear apron

1шт.

657206R1

KEY,3/8" Sq x 2 3/8", Par

3/8 x 3/8 x 2-3/8" straight

2шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga cd-pltd

1шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

108657

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

2шт.

6

592990R1

SPROCKET ASSY.

SPROCKET, 6T rear apron shaft

4шт.

586879R1

KEY

5/16 x 5/16 x 2" straight

4шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

4шт.

7

592991R1

SPACER

shaft inner sprocket

2шт.

8

592988R1

SUPPORT

shaft outer brg RH

1шт.

17433R11

BOLT W/NUT, 1/2 x 1" cd-pltd mach

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

9

592986R1

SUPPORT

apron shaft center

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

18496R11

BOLT W/NUT, 1/2 x 1-1/2" cd-pltd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
