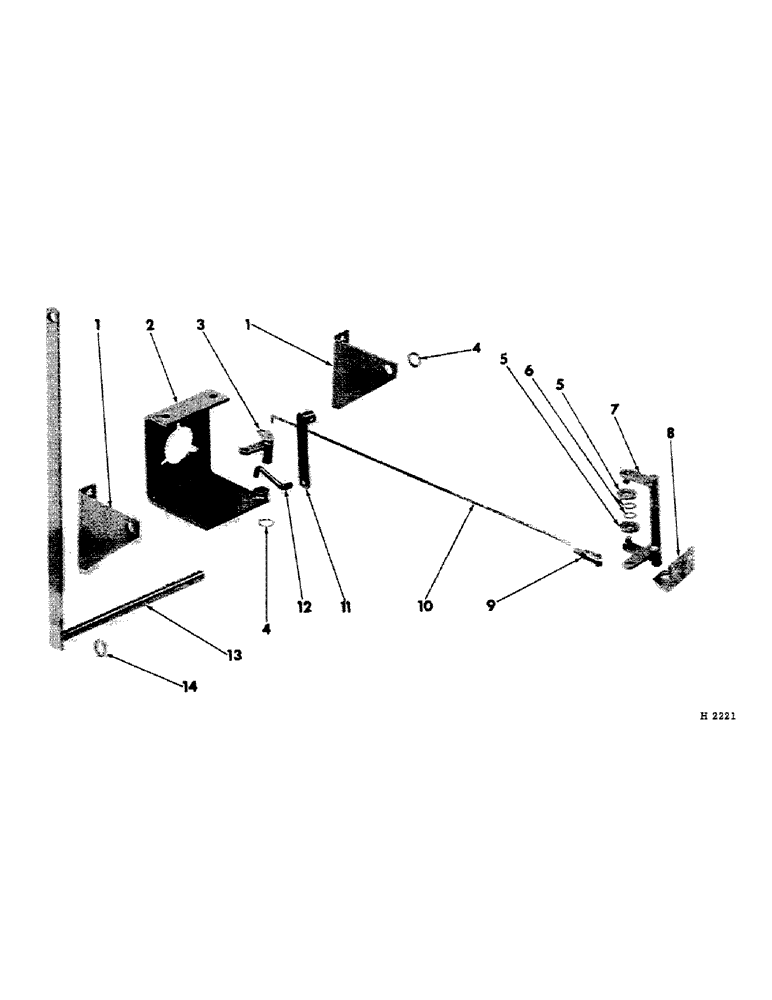

Запчасти Case IH 275 (L-16) - WIDESPREAD THROW-OUT CLUTCH CONTROL

1

593036R1

SUPPORT, clutch control arm

2шт.

17433R11

BOLT W/NUT, 1/2 x 1 cd-pltd mach

2шт.

17452R11

BOLT W/NUT, 1/2 x 1-1/4 cd-pltd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

592949R11

BRACKET, main shaft front brg

1шт.

17442R11

BOLT W/NUT, 1/2 x 1-1/8

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

593045R91

ROCKSHAFT, throw-out front

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga cd-pltd

1шт.

4

178375R1

WASHER

25/32 x 1-1/4 x 16 ga cd-pltd

1шт.

5

617439R1

WASHER

ROLLER, throw-out arm stud

2шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

6

12026R1

WASHER

17/32 x 1-1/4 x 16 ga washer

2шт.

7

593053R91

ARM

clutch throw-out

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga cd-pltd

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

8

593051R1

ANGLE, arm bottom support

1шт.

17442R11

BOLT W/NUT, 1/2 x 1-1/8 cd-pltd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

104037

CLEVIS

5/16 adjustable rod

1шт.

327-5094

CLEVIS PIN,5/16" x .940"

PIN, 5/16 x 31/32 rod-end

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

10

593049R1

ROD, clutch throw-out

1шт.

120368

NUT,5/16"-24, G5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11

593040R91

ARM, upper front

1шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

1шт.

12

593043R1

ROD, front connecting

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

2шт.

13

593037R11

ARM, clutch control

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga cd-pltd

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

14

366112R1

WASHER

25/32 x 1-1/4 x 11 ga cd-pltd

2шт.

ROPE, control arm control (3/8 sisal x 12 ft.) (dealer to supply from bulk stock)

1шт.
