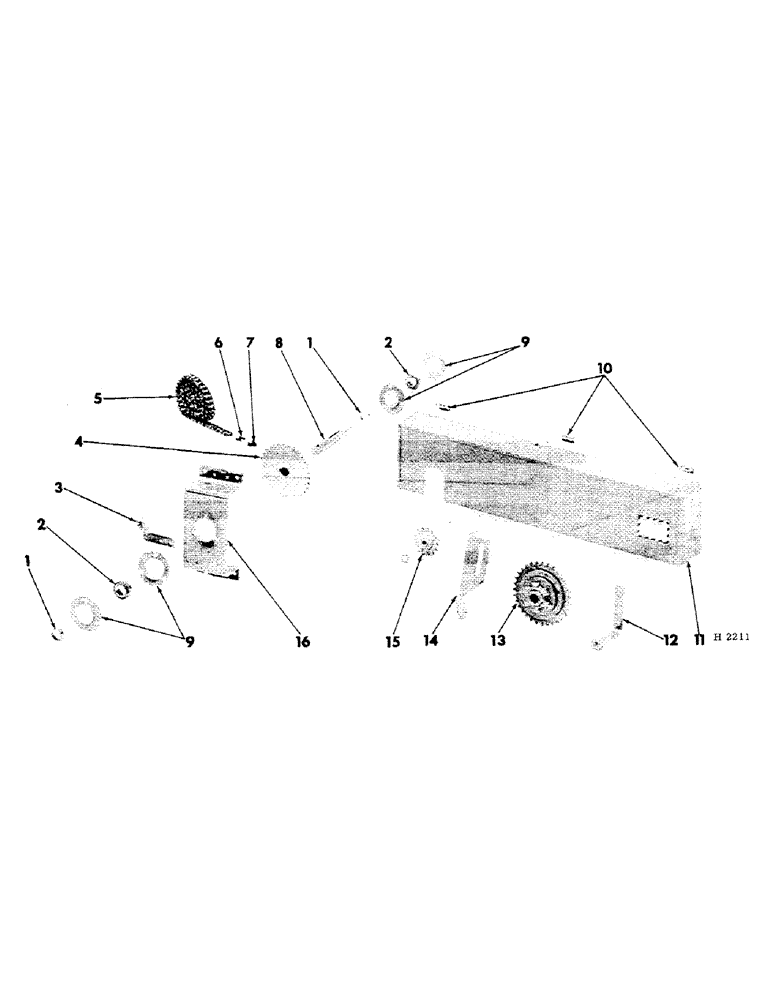

Запчасти Case IH 275 (L-12) - FRONT DRIVE SHAFT

1

557995R11

COLLAR

drive shaft brg locking, (includes 115321, screw)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hdls-cup-pt set

2шт.

2

617668R91

BALL BEARING

drive shaft

2шт.

3

592934R11

BRACKET, chain shield inner

1шт.

18494R11

SCREW

BOLT W/NUT, 3/8 cd-pltd mach

2шт.

120032

CARRIAGE BOLT,Short Nk, M6 x 20mm, Cl 8.8, Full Thd

NUT, 3/8 cd-pltd wing

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

4

592929R11

SPROCKET, drive shaft (540 RPM)

1шт.

4

593060R91

SPROCKET, drive shaft (1000 RPM)

1шт.

586879R1

KEY

5/16 x 5/16 x 2 straight

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

5

CHAIN, 540 RPM 3/4 pitch front drive standard (for service order 1-611362R91, 10ft. length of chain, reduce to 113 links, add 1-612612R91, offset link & 1-611361R91, connecting link)

1шт.

5

CHAIN, 1000 RPM 3/4 pitch front drive standard (for service order 1-611362R91, 10 ft. length of chain, reduce to 105 links, add 2-612612R91, offset link & 1-611361R91, connecting link)

1шт.

6

611361R91

DRAG LINK

LINK, drive chain connecting

1шт.

7

612612R91

CHAIN LINK

LINK, drive chain offset

1шт.

8

592928R1

SHAFT, front drive

1шт.

9

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER, drive shaft brg

4шт.

19427R11

BOLT

W/NUT, 3/8 x 7/8 cd-pltd crg

3шт.

17351R11

BOLT

W/NUT, 3/8 x 1 cd-pltd crg

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

10

592933R1

ANGLE, chain shield support

3шт.

18788R11

BOLT

W/NUT, 3/8 x 3/4 cd-pltd mach

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

11

592936R91

SHIELD, front drive chain

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8 cd-pltd wing

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

592935R11

BRACKET, chain shield outer

1шт.

19573R11

BOLT

W/NUT, 3/8 x 7/8 cd-pltd mach

2шт.

126032

WING NUT,3/8"-16

NUT, 3/8 cd-pltd wing

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga-cd-pltd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

13

SPROCKET, clutch (refer to main drive shaft)

1шт.

14

592932R1

BRACKET, front drive chain tightener

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

W/NUT, 1/2 x 1-1/2 type 2 cd-pltd

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

W/NUT, 1/2 x 1-3/4 type 2

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

15

582389R1

SPROCKET, 15T chain tightener

1шт.

18824R11

BOLT

W/NUT, 5/8 x 2-1/2 cd-pltd mach

1шт.

578274R1

WASHER

21/32 x 1 x 11 ga

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

592927R1

CHANNEL, shaft mounting bracket

1шт.

17442R11

BOLT W/NUT, 1/2 x 1-1/8 cd-pltd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.
