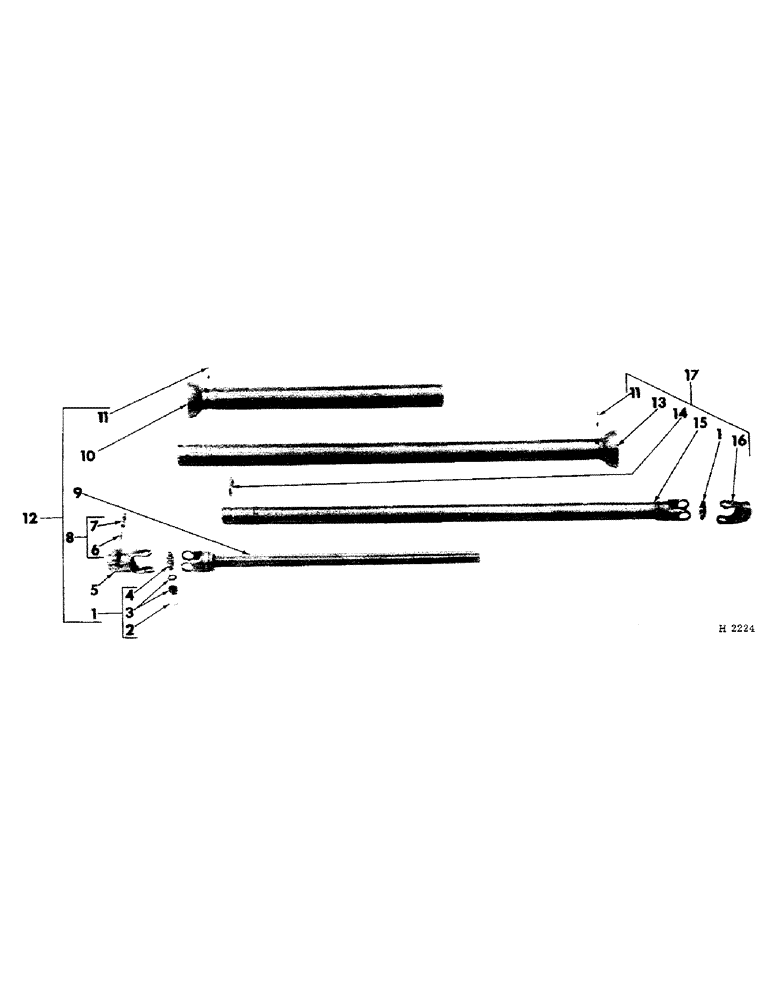

Запчасти Case IH 275 (L-11) - POWER TAKE-OFF, 1000 RPM - SPECIAL

1

208959R91

KIT

PACKAGE, center cross service composed of, (4) bearing 210889R91, (1) cross (NSS), (4) ring 975666R1

1шт.

2

975666R1

RING

center cross brg snap

8шт.

3

210889R91

BEARING

center cross

8шт.

4

CROSS, yoke center, (NSS), (order 1-208959R91, package)

2шт.

5

594199R91

YOKE, quick-detachable front (includes 613867R11, pin)

1шт.

6

613868R1

SPRING

front yoke release pin

1шт.

7

17078R1

LOCK PIN,1/8" x 13/16", Slotted

PIN, 1/8" x 13/16", Slotted

1шт.

8

613867R11

PIN

quick-detachable front yoke release (includes 613868R1, spring & 17078R1, pin)

1шт.

9

594190R91

YOKE & SHAFT, front joint

1шт.

10

594191R91

SHIELD, front half corner

1шт.

11

613870R1

BEARING HALF

BEARING, shield nylon

4шт.

12

594198R91

JOINT, pto front half single composed of, (2) bearing 613870R1, (1) package 208959R91, (1) shield 594191R91, (1) yoke 594190R91, (1) yoke 504198R91

1шт.

13

594193R91

SHIELD, rear half inner

1шт.

14

594195R1

BEARING, shield support inner rear

1шт.

15

594192R91

YOKE & TUBE, rear joint

1шт.

16

594194R1

YOKE W/KEYWAY, rear joint

1шт.

17

594189R91

JOINT, pto rear half single composed of, (1) bearing 594195R1, (2) bearing 613870R1, (1) package 208959R91, (1) shield 594193R91 (1) yoke, 594192R91, (1) yoke 594194R1

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

117977

WOODRUFF KEY

5/16 x 1

1шт.
