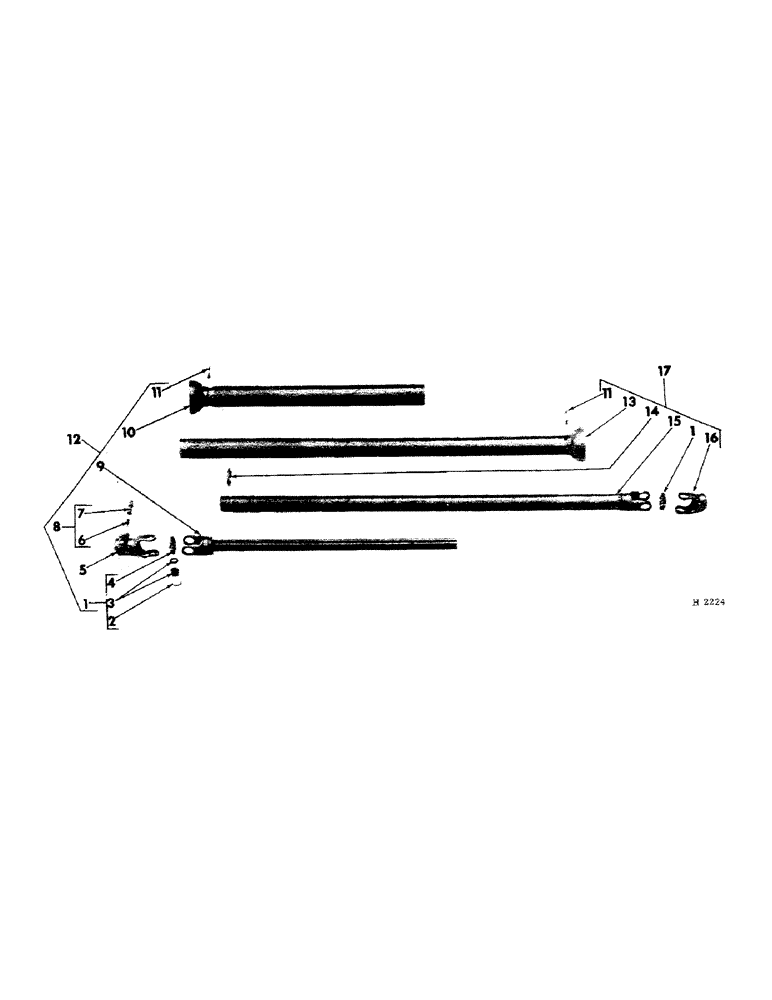

Запчасти Case IH 275 (L-10) - POWER TAKE-OFF, 540 RPM - REGULAR

1

609144R91

CROSS

PACKAGE, center cross service composed of, (4) bearing 609153R11, (1) cross (NSS), (4) ring 609154R1, (1) fitting 109460

2шт.

2

609154R1

RING

center cross brg snap

8шт.

3

609153R11

BEARING

center cross

8шт.

4

CROSS, yoke center, (NSS) (Order 1-609144R91, package)

2шт.

5

596607R91

YOKE

quick-detachable front (Includes 613867R11, pin)

1шт.

6

613868R1

SPRING

front yoke release pin

1шт.

7

17078R1

LOCK PIN,1/8" x 13/16", Slotted

PIN, 1/8" x 13/16", Slotted

1шт.

8

613867R11

PIN

quick-detachable front yoke release (Includes 613868R1, springs & 17078R1, pin)

1шт.

9

596606R91

YOKE & SHAFT, front joint

1шт.

10

596608R91

SHIELD, front half outer

1шт.

11

607910R1

BEARING HALF

shield nylon

4шт.

12

596604R91

JOINT, pto front half single composed of, (2) bearing 607910R1, (1) package 609144R91, (1) shield 596608R91, (1) yoke 596606R91, (1) yoke 596607R91

1шт.

13

596611R91

SHIELD, rear half inner

1шт.

14

607911R1

NYLON BEARING,1.781" ID x 0.25"

BEARING, shield support inner rear

1шт.

15

596609R91

YOKE & TUBE, rear joint

1шт.

16

596610R1

YOKE A KEYWAY, rear joint

1шт.

17

596605R91

JOINT, pto rear half single composed of, (1) bearing 607911R1, (2) bearing 607910R1, (1) package 609144R91, (1) shield 596611R91 (1) toke 596609R91, (1) yoke 596610R1

1шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

1шт.

117977

WOODRUFF KEY

5/16 x 1

1шт.
