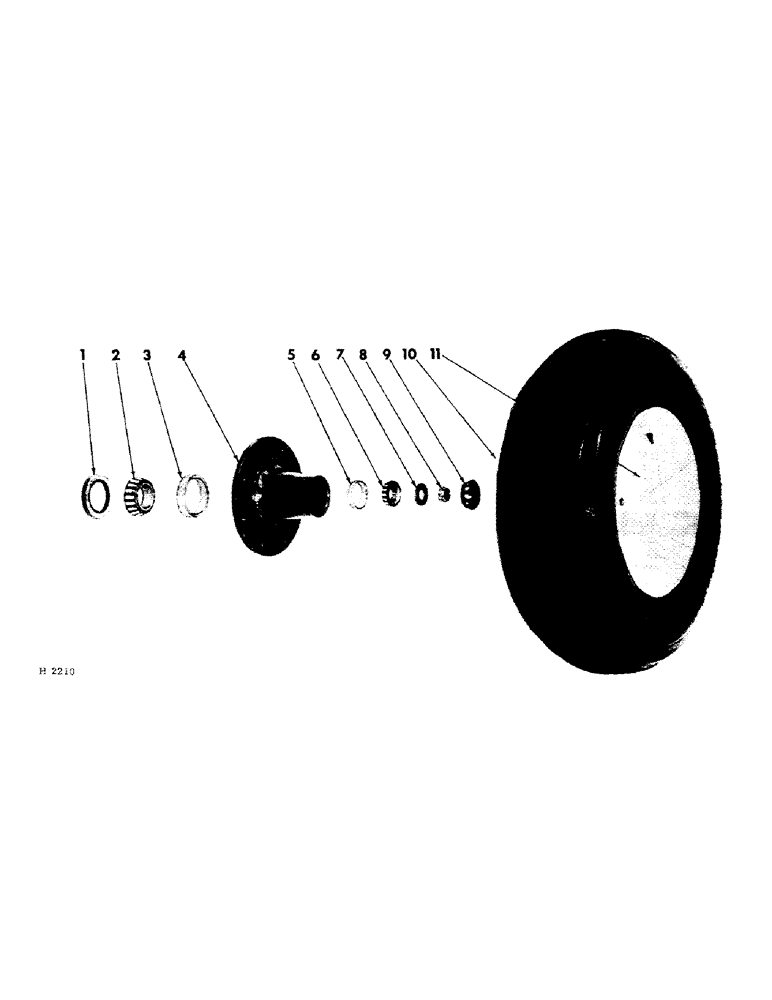

Запчасти Case IH 275 (L-09) - PNEUMATIC TIRE & WHEEL

1

22415HA

SEAL

axle spindle oil

4шт.

2

62923R91

ROLLER BEARING

CONE, spindle inner brg

4шт.

3

130503H

BEARING CUP

CUP, spindle inner brg

4шт.

4

592920R1

HUB

wheel

4шт.

5

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP, spindle outer brg

4шт.

6

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

CONE, spindle outer brg

4шт.

7

619373R1

WASHER

29/32 x 2 x 7 ga spindle

4шт.

8

612634R1

NUT

7/8-NF slt-hex spindle

4шт.

9

612884R1

HUB CAP

CAP, wheel hub

4шт.

10

TIRE & TUBE 11.00 x 16, 8 ply ribbed farm (specail)

4шт.

11

592922R91

RIM

WHEEL, 8 ply ribbed farm tire (WHIOL-16 C.V.) (regular)

4шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel hub

32шт.
