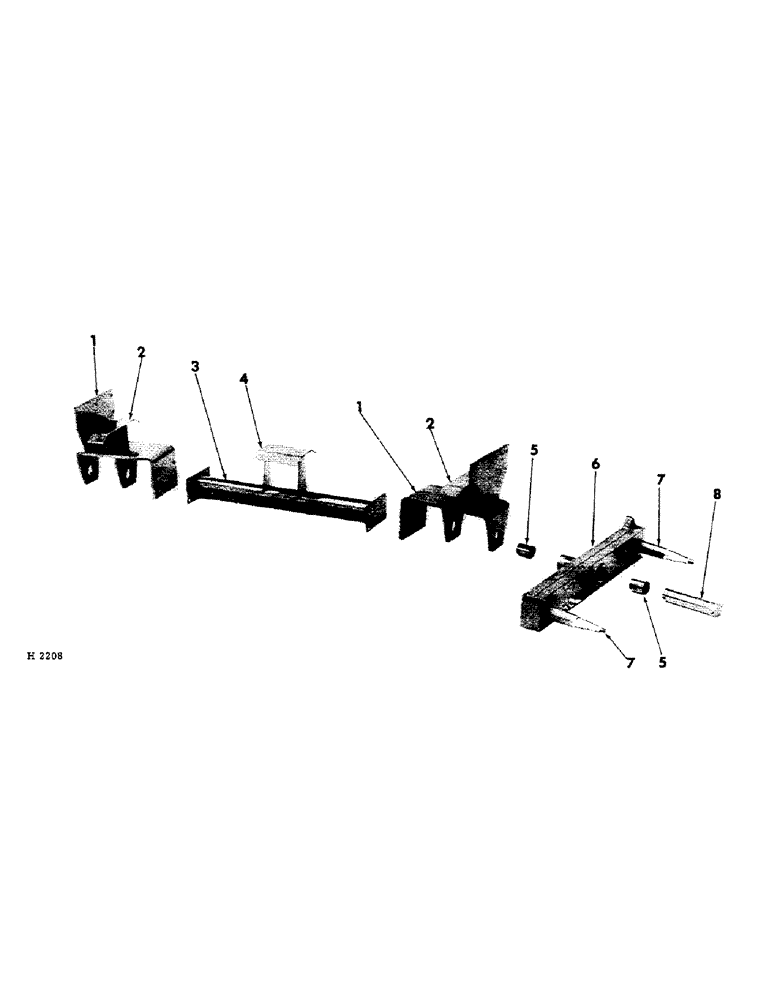

Запчасти Case IH 275 (L-08) - TANDEM-AXLE

1

592903R91

BRACKET, tandem axle pivot

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

W/NUT, 1/2 x 1-1/4 type 2 cd-pltd

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

2

592910R1

SUPPORT

apron raising chain

2шт.

19019R11

BOLT (SPREADER)

BOLT W/NUT, 3/8 x 1 cd-pltd no. 3 plow

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

592838R11

BRACE

hitch torsion

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

w/nut Hex, 3/4"-10 x 2 1/4", G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

4

592841R1

VALVE BLOCK

SECTION, apron chain raising

1шт.

19019R11

BOLT (SPREADER)

BOLT W/NUT, 3/8 x 1 cd-pltd no. 3 plow

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

467529R1

BUSHING, axle pivot tube

4шт.

6

592911R91

AXLE, tandem wheel LH (Includes 467529R1, bushings and 592918R1, spindles)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

20886R1

WASHER

2-17/32 x 3-1/2 x 16 ga cd-pltd

4шт.

6

592912R91

AXLE, tandem wheel RH (Includes 467529R1, bushings and 592918R1, spindles)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

20886R1

WASHER

2-17/32 x 3-1/2 x 16 ga cd-pltd

4шт.

7

592918R1

SPINDLE, axle

4шт.

619373R1

WASHER

29/32 x 2 x 7 ga

4шт.

612634R1

NUT

7/8-NF slt

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

8

592919R1

BAR

axle pivot

2шт.

19982R1

PIN,1/2" x 3 3/4", Coiled

4шт.

20886R1

WASHER

2-17/32 x 3-1/2 x 16 ga cd-pltd

4шт.
