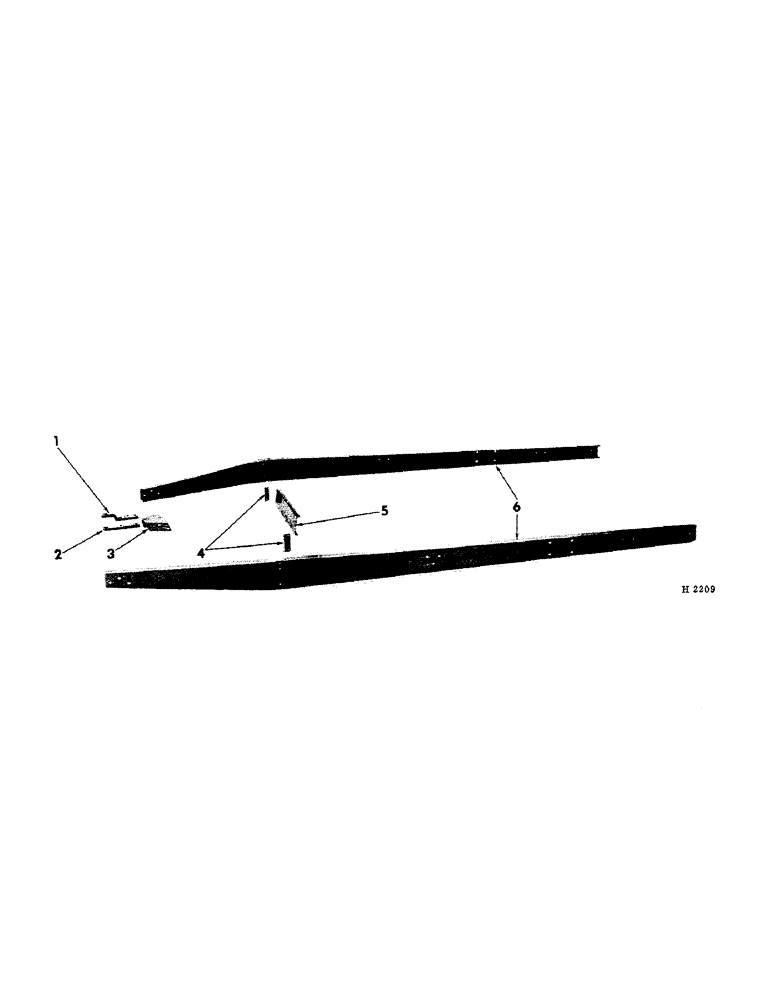

Запчасти Case IH 275 (L-07) - HITCH

1

594230R1

BRACE

hitch bracket upper

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

W/NUT, 3/4 x 3-1/2 type 2 cd-pltd

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

594231R1

BAR

hitch bracket lower

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

W/NUT, 3/4 x 3-1/2 type 2 cd-pltd

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

3

592844R1

SUPPORT

hitch bracket

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

W/NUT, 5/8 x 1-1/2 type 2 cd-pltd

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

4

592843R1

ANGLE, front channel mounting

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

W/NUT, 1/2 x 1-1/2 type 2 cd-pltd (RH)

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

W/NUT, 1/2 x 1-3/4 type 2 cd-pltd (LH)

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

5

592842R1

CHANNEL, hitch cross front

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

w/Nut Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

592821R91

HITCH, LH

1шт.

6

592822R91

HITCH, RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

w/Nut Hex, 1/2"-13 x 1", G5, Full Thd

10шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

W/NUT, 1/2 x 1-1/4 type 2 cd-pltd (RH)

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

11шт.

604683R1

HEADED PIN,1" x 4 1/2"

PIN, hitch bracket draw (1 x 4-1/2 std-hd-dld pin)

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.
