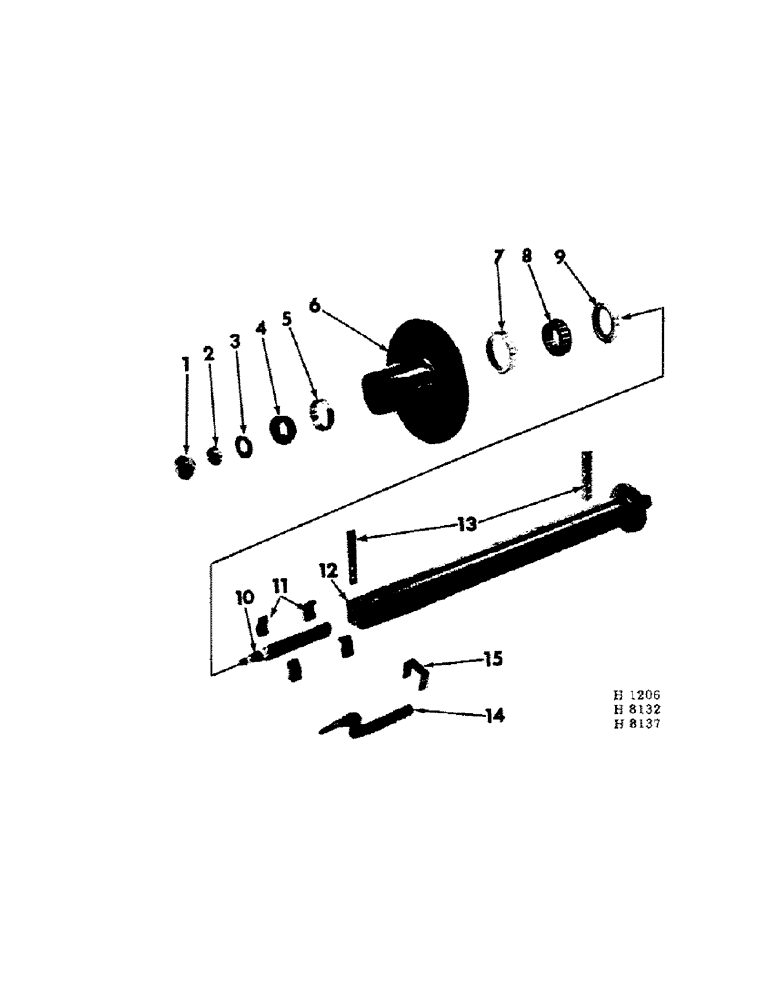

Запчасти Case IH 160 (G-05) - AXLE

1

612884R1

HUB CAP

CAP, hub

2шт.

2

612634R1

NUT

7/8" - NF slt axle

2шт.

3

619373R1

WASHER

29/32 x 2 x 7 ga

2шт.

4

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

CONE, axle outer brg

2шт.

5

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP, axle outer brg

2шт.

6

606374R1

HUB, wheel

2шт.

7

130503H

BEARING CUP

CUP, axle inner brg

2шт.

8

62923R91

ROLLER BEARING

CONE, axle inner brg

2шт.

9

22415HA

SEAL

axle oil

2шт.

10

617436R11

AXLE, straight (includes 612634R1, nut) (NOTE A)

1шт.

612634R1

NUT

7/8" - NF slt

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

11

617401R1

CLAMP, axle

8шт.

187152

BOLT,Hex, 1/2" - 13 x 5", Gr 5

W/NUT, 1/2 x 5" type 2 (4-NOTE A; 2-NOTE B)

1шт.

187238

BOLT,Hex, 1/2" - 13 x 6", Gr 5

W/NUT, 1/2 x 6" type 2 (2-NOTE B)

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

12

617581R1

CHANNEL, axle

2шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" crg

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

13

617554R1

ANGLE, channel support LH

1шт.

13

617555R1

ANGLE, channel support RH

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

592799R11

AXLE, drop (includes 612634R1, nut; 103387, c-pin & 619373R1, wash) (NOTE B)

2шт.

612634R1

NUT

7/8" - NF slt

2шт.

619373R1

WASHER

WASH, 29/32 x 2 x 7 ga

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

15

592800R1

CHANNEL, axle reinforcing (NOTE B)

2шт.

187238

BOLT,Hex, 1/2" - 13 x 6", Gr 5

W/NUT, 1/2 x 6" type 2

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
