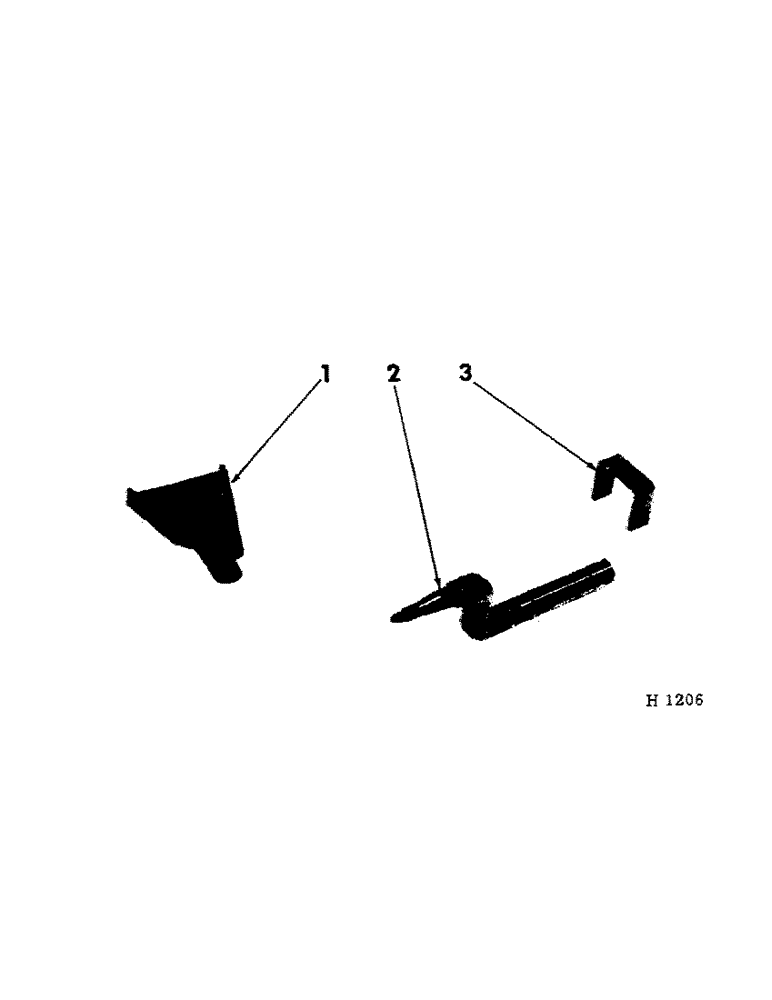

Запчасти Case IH 160 (G-04[A]) - DROP AXLE CONVERSION PACKAGE

1

592795R91

BRACKET, tractor hitch

1шт.

18837R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2

W/NUT, 3/4 x 1-3/4" cd-pltd mach

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

650355R1

AXLE PIN

PIN, 3/4 x 3-3/4" std-hd dld

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

2

592799R11

AXLE, bent (includes 612634R1, nut; 103387, pin & 619373R1, wash)

2шт.

612634R1

NUT

7/8" - NF slt

2шт.

619373R1

WASHER

WASH, 29/32 x 2 x 7 ga

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

3

592800R1

CHANNEL, axle channel reinforcing

2шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

W/NUT, 1/2 x 5" cd-pltd type 2

2шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

BOLT W/NUT, 1/2 x 6" cd-pltd type 2

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

1018935R1

PAMPHLET, field conversion pkg

1шт.
