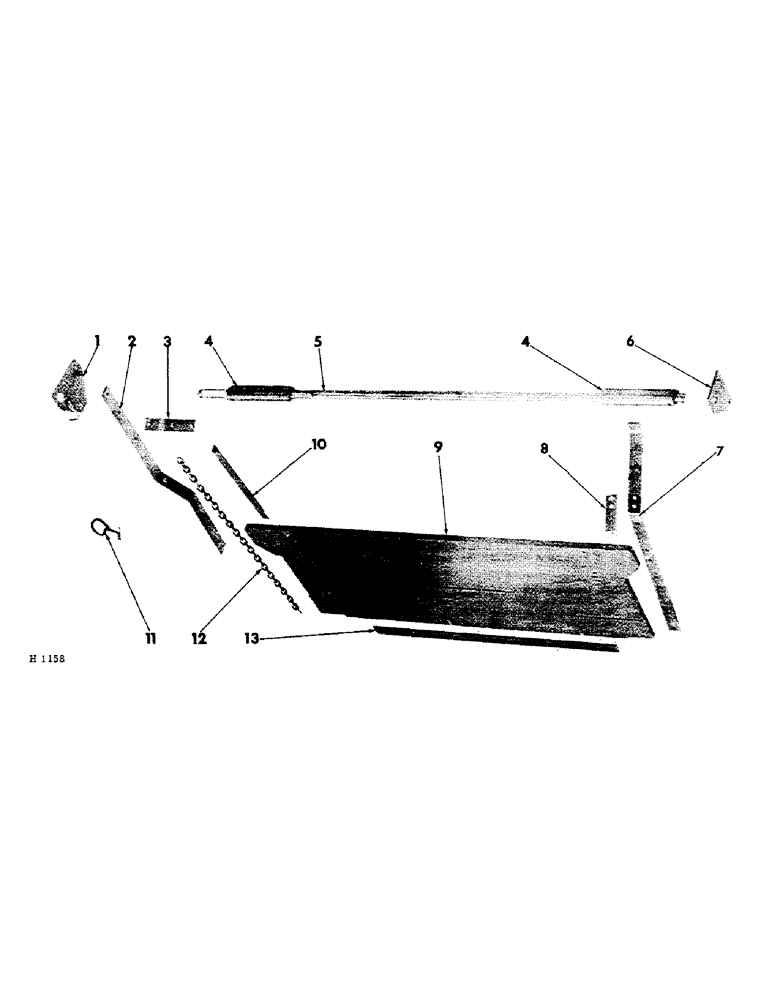

Запчасти Case IH 160 (G-16) - REAR ENDGATE (LIQUID MANURE) (1965 SEASON & SINCE)

592643R91

PACKAGE, rear endgate field conversion (composed of all parts listed, unless otherwise noted)

1шт.

1

592654R91

BRACKET, endgate shaft RH

1шт.

15023R11

BOLT

W/NUT, 3/8 x 1-1/4" crg

1шт.

15024R11

BOLT (SPREADER)

BOLT W/NUT, 7/16 x 1-1/4" crg

1шт.

+ Not part of field conversion package

1шт.

16789R1

BOLT, 7/16 x 2-3/4" dld crg

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

10322

LK-WASHER, 7/16"

1шт.

+ Not part of field conversion package

1шт.

2

592653R1

BRACE, endgate shaft

2шт.

19577R11

BOLT W/NUT, 5/16 x 1-1/8" cd-pltd crg

2шт.

+ Not part of field conversion package

1шт.

18767R11

BOLT

W/NUT, 5/16 x 2" cd-pltd mach

2шт.

+ Not part of field conversion package

1шт.

18768R11

BOLT W/NUT, 5/16 x 2-1/4" cd-pltd mach

2шт.

+ Not part of field conversion package

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

+ Not part of field conversion package

1шт.

3

608403R1

STRAP, flail shield support

2шт.

+ Not part of field conversion package

1шт.

18421R11

SCREW

BOLT W/NUT, 7/16 x 1" cd-pltd crg

4шт.

+ Not part of field conversion package

1шт.

19759R11

BOLT W/NUT, 7/16 x 1-1/8" cd-pltd crg

2шт.

+ Not part of field conversion package

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

+ Not part of field conversion package

1шт.

4

592646R1

PIPE, lift chain

2шт.

5

592644R1

SHAFT, endgate

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

4шт.

+ Not part of field conversion package

1шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga

1шт.

+ Not part of field conversion package

1шт.

6

592657R1

BLOCK, endgate shaft LH

1шт.

18684R11

BOLT

W/NUT, 3/8 x 1-1/4" cd-pltd crg

1шт.

15024R11

BOLT (SPREADER)

BOLT W/NUT, 7/16 x 1-1/4" crg

1шт.

+ Not part of field conversion package

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

+ Not part of field conversion package

1шт.

7

592650R1

BRACE, cross board tie

2шт.

8

592651R1

STRIP, guide brace

2шт.

12872R11

BOLT

W/NUT, 5/16 x 1" cd-pltd crg

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

592647R1

BOARD, cross top

1шт.

9

592649R1

BOARD, cross intermediate

2шт.

9

592648R1

BOARD, cross bottom

1шт.

18422R11

BOLT

W/NUT, 3/8 x 1-3/4" cd-pltd crg

14шт.

18479R11

BOLT W/NUT, 3/8 x 2" cd-pltd crg

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga cd-pltd

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

10

592662R1

ANGLE, endgate stop LH

1шт.

10

592661R1

ANGLE, endgate stop RH

1шт.

18767R11

BOLT

W/NUT, 5/16 x 2" cd-pltd mach

2шт.

+ Not part of field conversion package

1шт.

18768R11

BOLT W/NUT, 5/16 x 2-1/4" cd-pltd mach

2шт.

+ Not part of field conversion package

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

+ Not part of field conversion package

1шт.

11

612766R12

GUIDE

rope center

1шт.

19576R11

BOLT

W/NUT, 5/16 x 7/8" cd-pltd crg

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

592645R91

CHAIN, endgate lift

2шт.

18479R11

BOLT W/NUT, 3/8 x 2" cd-pltd crg

2шт.

15124R11

BOLT

W/NUT, 3/8 x 2-3/4" crg

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

592652R1

BAR, cross board weight

1шт.

18422R11

BOLT

W/NUT, 3/8 x 1-3/4" cd-pltd crg

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
