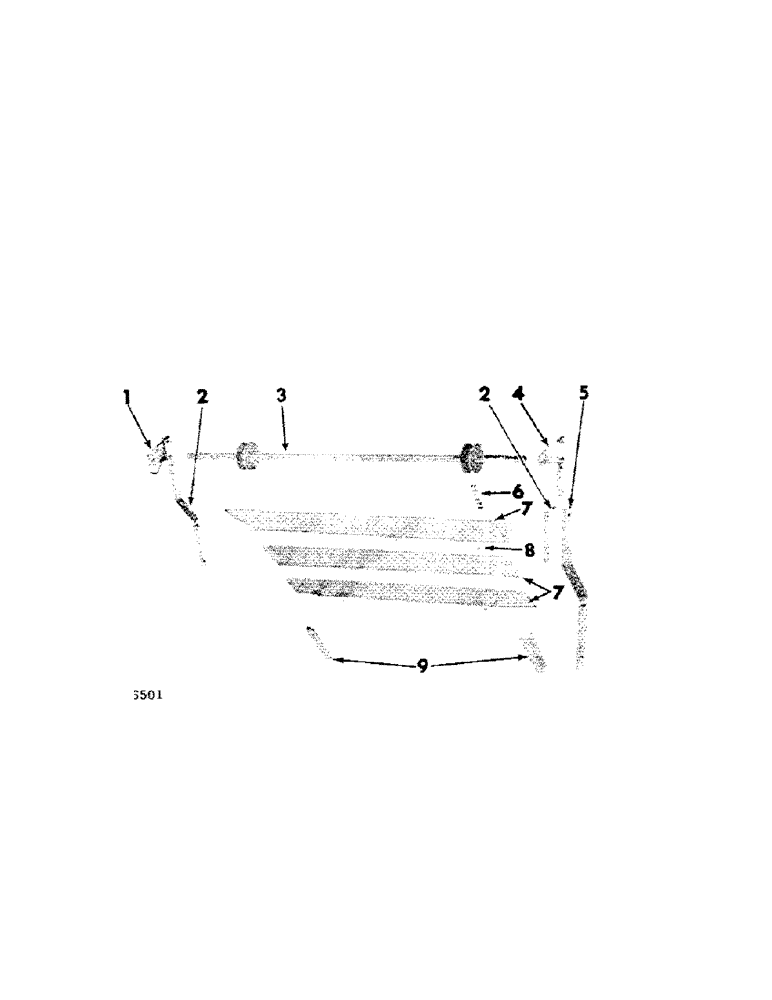

Запчасти Case IH 160 (G-15[B]) - PRIOR ENDGATE (LIQUID MANURE) (PRIOR TO 1965 SEASON)

1

608411R91

BRACKET, endgate shaft RH

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT W/NUT, 7/16 x 1-1/4" crg

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

2

608402R1

STRAP, endgate support

2шт.

19577R1

BOLT

W/NUT, 5/16 x 1-1/8" cd-pltd crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

613184R21

SHAFT, endgate

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

4шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga

1шт.

4

612937R2

BRACKET, endgate shaft LH

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT W/NUT, 7/16 x 1-1/4" crg

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

5

608403R1

STRAP, flail shield support

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd, w/nut

4шт.

19759R1

BOLT W/NUT, 7/16 x 1-1/8" cd-pltd crg

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

6

CHAIN, endgate lift (order 1-CS-34) 10 ft chain & reduce to 23 links)

2шт.

Q3516

PIN

1/4 x 2" std-hd dld

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

7

613188R11

CROSSMEMBER, endgate top

1шт.

7

613188R1

CROSSMEMBER, endgate center

2шт.

7

613189R1

CROSSMEMBER, endgate bottom

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

8

612938R1

SPACER, endgate chain

8шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

9

608404R1

ANGLE, endgate stop LH

1шт.

9

608405R1

ANGLE, endgate stop RH

1шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

W/NUT, 5/16 x 2" cd-pltd mach

2шт.

18768R1

BOLT,Hex, 5/16"-18 x 2 1/4", G2

W/NUT, 5/16 x 2-1/4" cd-pltd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
