Запчасти Case IH 160 (G-13) - FLAIL BEATER

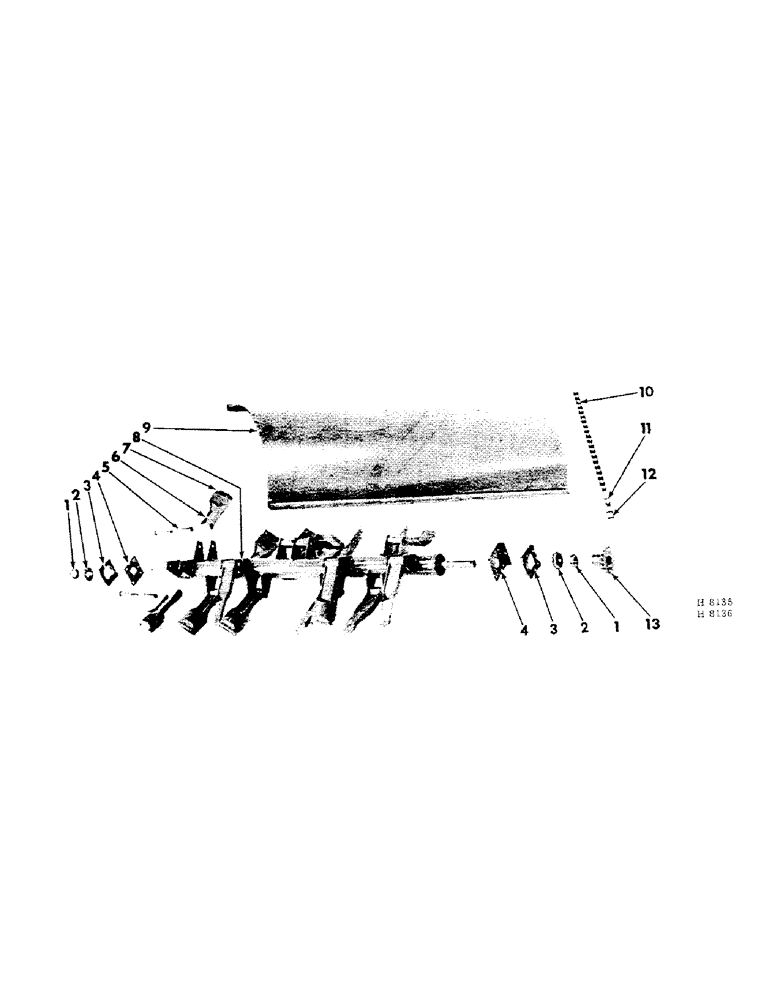

Схема запчастей Case IH 160 - (G-13) - FLAIL BEATER

Артикул

Название

Примечание

Количество

1

517645R11

COLLAR

brg locking (includes 102592, screw) (Fafnir or New Departure w/571588R91, bearing)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

1

619997R11

COLLAR

brg locking (includes 102592, screw) SKF w/619996R91, bearing)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

2

571588R91

BALL BEARING

BEARING, (Fafnir w/517645R11, collar)

2шт.

2

573849R91

BALL BEARING

BEARING, (New Departure w/517645R11, collar)

2шт.

2

619996R91

BEARING

(SKF w/619997R11, collar)

2шт.

3

612018R1

HOUSING

shaft brg

2шт.

19433R1

BOLT W/NUT, 3/8 x 1-1/2" cd-pltd crg

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

4

608018R1

BRACKET, brg support

2шт.

611034R1

BOLT, 3/8 x 2-1/2" cd-pltd crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

5

608078R1

BUSHING, flail arm bolt

16шт.

6

608075R21

ARM, flail LH (includes 608077R1, blade & 18352R1, rivets)

8шт.

6

608076R21

ARM, flail RH (includes 608077R1, blade & 18352R1, rivets)

8шт.

608079R1

BOLT, flail arm

14шт.

608080R1

BOLT, flail arm (center)

1шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga cd-pltd (center)

2шт.

608595R1

NUT

LK-NUT, 5/8" cd-pltd

15шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

15шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

15шт.

7

608077R1

BLADE, arm wear plate

16шт.

18352R1

RIVET, 5/16 x 1-1/16" wb-hd

32шт.

8

608068R91

FLAIL, widespread

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga cd-pltd

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

9

608086R11

TOP, flail shield

1шт.

19428R1

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

10шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga cd-pltd

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

10

CHAIN, widespread drive (3/4" pitch steel roller) (order 1-1793D, 10 ft chain, reduce to 67 links, add 1-1318D, offset link & 1-1317D, connecting link)

1шт.

11

612612R91

CHAIN LINK

LINK, chain offset, Serial Range: (prior-1964)

1шт.

1389D

PIN, offset link

1шт.

1390D

PIN

C-PIN, 1/4 lb pkg

1шт.

11

1318D

LINK

chain offset (1964 & since)

1шт.

1389D

PIN, offset link

1шт.

1390D

PIN

C-PIN, 1/4 lb pkg

1шт.

12

611361R91

DRAG LINK

LINK, chain connecting, Serial Range: (prior-1964)

1шт.

1390D

PIN

C-PIN, 1/4 lb pkg

1шт.

12

1317D

LINK

chain connecting (1964 & since)

1шт.

1390D

PIN

C-PIN, 1/4 lb pkg

1шт.

13

608082R91

SPROCKET, flail driven

1шт.

13611A

KEY,5/16" Sq x 2 1/2", Par

5/16 x 5/16 x 2-1/2" straight

1шт.

Выбрано товаров: 44
